N = Black
BV = White-Green
GN = Yellow-Black
RN = Red-Black
Gr = Grey
Rs = Pink
R = Red
Vi = Purple
V = Green
A = Orange
VN = Green-Black
BN = White-Black
BBI = White-Blue
BR = White-Red
RGr = Red-Grey
BIN = Blue-Black
BVi = White-Purple
RBI = Red-Blue
CAUTION
WHEN INTERVENING ON THE ELECTRICAL SYSTEM, MAKE ESPECIALLY SURE THAT THE
WIRES LEADING TO THE ELECTRONIC CONTROL UNIT ARE CORRECTLY CONNECTED AND
RESPECT THE COLOUR CODING GIVEN ON THE CONTROL UNIT.

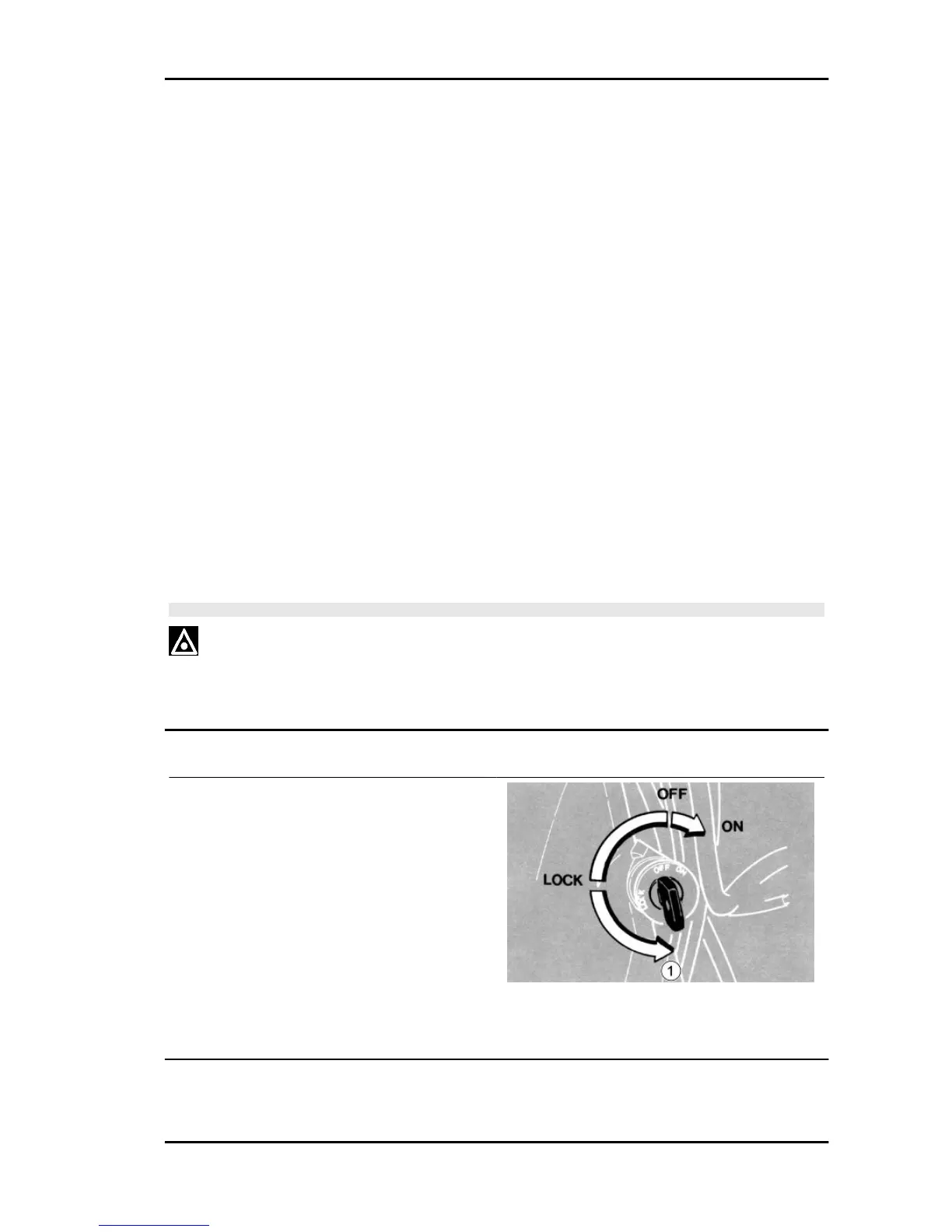

Key-switch
LOCK Position: contacts 7-8, ground ignition, ex-
tractable key, locked steering.
OFF: contacts 7-8, ground ignition. Key may be
removed.
ON Position: contacts 1 -3 (c.c. to the services)
and 5-6 (Provision to the ignition of the daylight
running light in c.a.). Key may not be removed.
Position 1: contacts 7-8 (ground ignition) and 3-5
(c.c. to the daylight running light). Parking extract-
able key.
MSS APE 50 Electrical system
ES - 61
