Secondary air system
FILTER CLEANING AND INTEGRITY CHECK
To clean the sponge filters of the secondary air
system, proceed as follows:

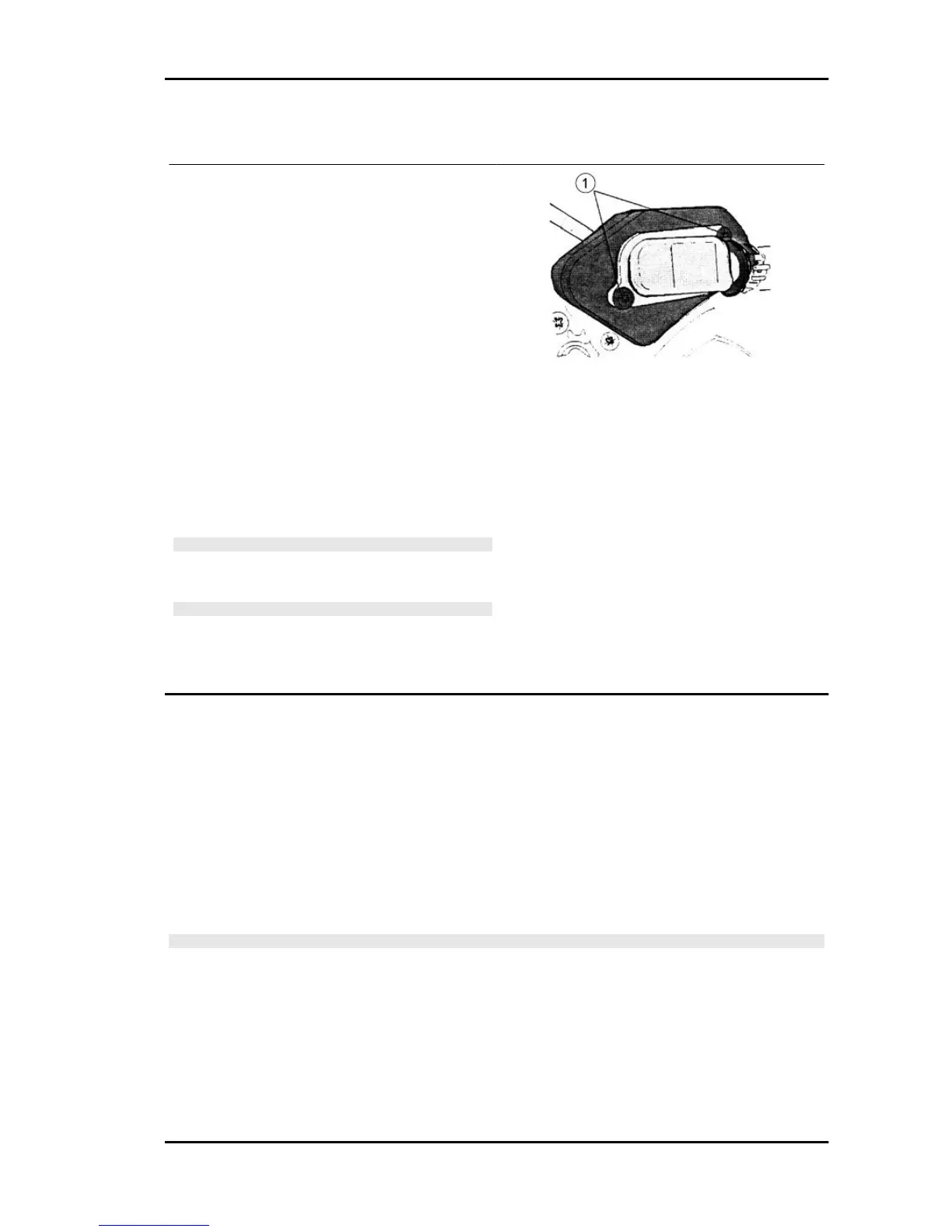

1) Unscrew the fixing screws «1» from the alumi-
nium lid of the secondary air box to access the
polyurethane sponge contained inside the same
box.
2) Clean the polyurethane sponge by washing with
soap and water, then dry everything with com-
pressed air and reposition everything back in the
corresponding seats, after checking at the same
time that the blade is not warped, cracked and/or
does not guarantee its seal on its contact surface;
replace if necessary.
N.B.
WHEN REASSEMBLING, TAKE CARE TO PROPERLY RE-
POSITION THE BLADE IN ITS SEAT ON THE TWO PLASTIC
AND ALUMINIUM COVERS.
CAUTION
DURING THE OPERATION 1) ALWAYS CHECK THE IN-
TEGRITY AND THE SEAL OF THE RUBBER SLEEVE LO-
CATED ON THE END OF THE SECONDARY AIR TUBE; IF
NECESSARY, REPLACE THE FIXING CLAMPS.
Headlight alignment check
APE 50 - APE 50 EUROPA
Position the unloaded vehicle on a flat surface and at 10 m away from a white screen located in the
dark. Make sure that the vehicle axis is perpendicular to the screen.
Draw a horizontal line on the screen with a height corresponding to 58-60 cm.; Check that the tyres are
inflated to the pressure required, start the engine and lock the throttle twist grip at approximately 1/3 of
its travel, turn on the headlight, insert the low beam and aim it so that the horizontal demarcation line
between the dark and the lighted area does not fall above the horizontal line marked on the screen.
WARNING
THE HEADLIGHT IS FITTED WITH TWO ADJUSTMENT SCREWS, LOCATED AT THE TOP TO
ALLOW CORRECTION OF ANY ALTERATION OF THE LIGHT BEAMS. TO ACCESS THESE
SCREWS AND, IT IS NECESSARY TO REMOVE THE PROTECTIVE FRONT COWL OF THE HEAD-
LIGHT UNIT BY TURNING THE TWO SCREWS THAT FIX THE SHIELD OF THE FRAME.
MSS APE 50 Maintenance
MA - 35
