PIAGGIO MSS APE 50 User Manual

BR = White-Red
A = Blue
Ar = Orange
CAUTION
WHEN INTERVENING ON THE ELECTRICAL SYSTEM, MAKE ESPECIALLY SURE THAT THE
WIRES LEADING TO THE ELECTRONIC CONTROL UNIT ARE CORRECTLY CONNECTED AND
RESPECT THE COLOUR CODING GIVEN ON THE CONTROL UNIT.

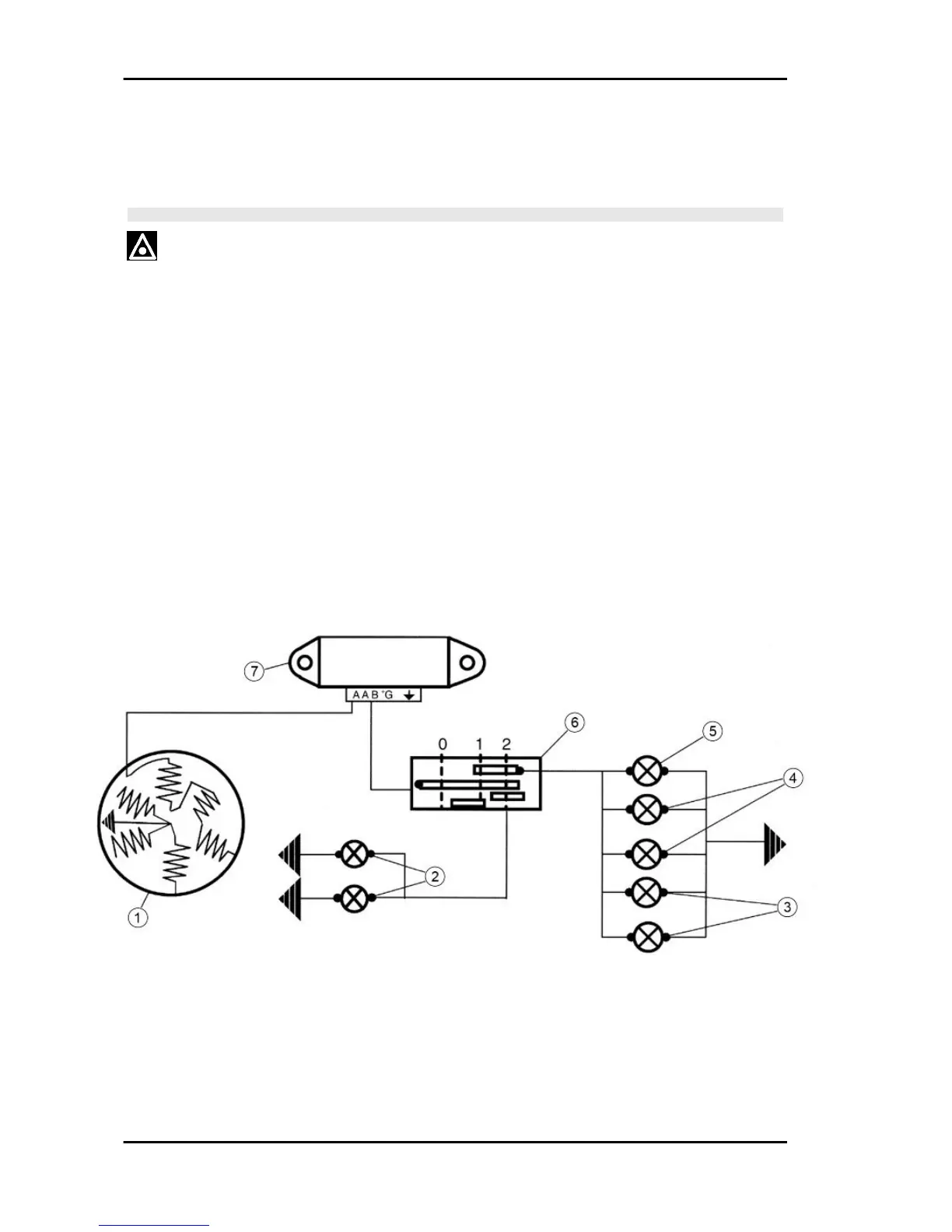

LIGHTS SECTION - APE 50 EUROPA
KEY:
1.Alternator
2. 12V-15W Headlights
3. 12V-5W City lights
4. 12V-4W Rear daylight running light
5. Headlight warning light
6. Light switch
7. Voltage regulator
ELECTRICAL SYSTEM DEVICES (TOP AND BASE) - APE 50 mix
1. FRONT HEADLIGHTS AND TURN INDICATORS, 12V-3W, 12V- 15W AND 12V-10W BULBS
2. HORN
3. REAR LIGHTS, 12V-4W, 12V-10W AND 12V-10W BULBS
Electrical system MSS APE 50
ES - 54
