HEADLIGHTS AIMING INSPECTION
N.B.
BEFORE CARRYING OUT THE OPERATION FOR HEADLIGHTS AIMING, CHECK THAT THE
TYRES ARE INFLATED TO THE PRESSURES INDICATED IN THE SPECIFIC SECTION.
Proceed as follows:

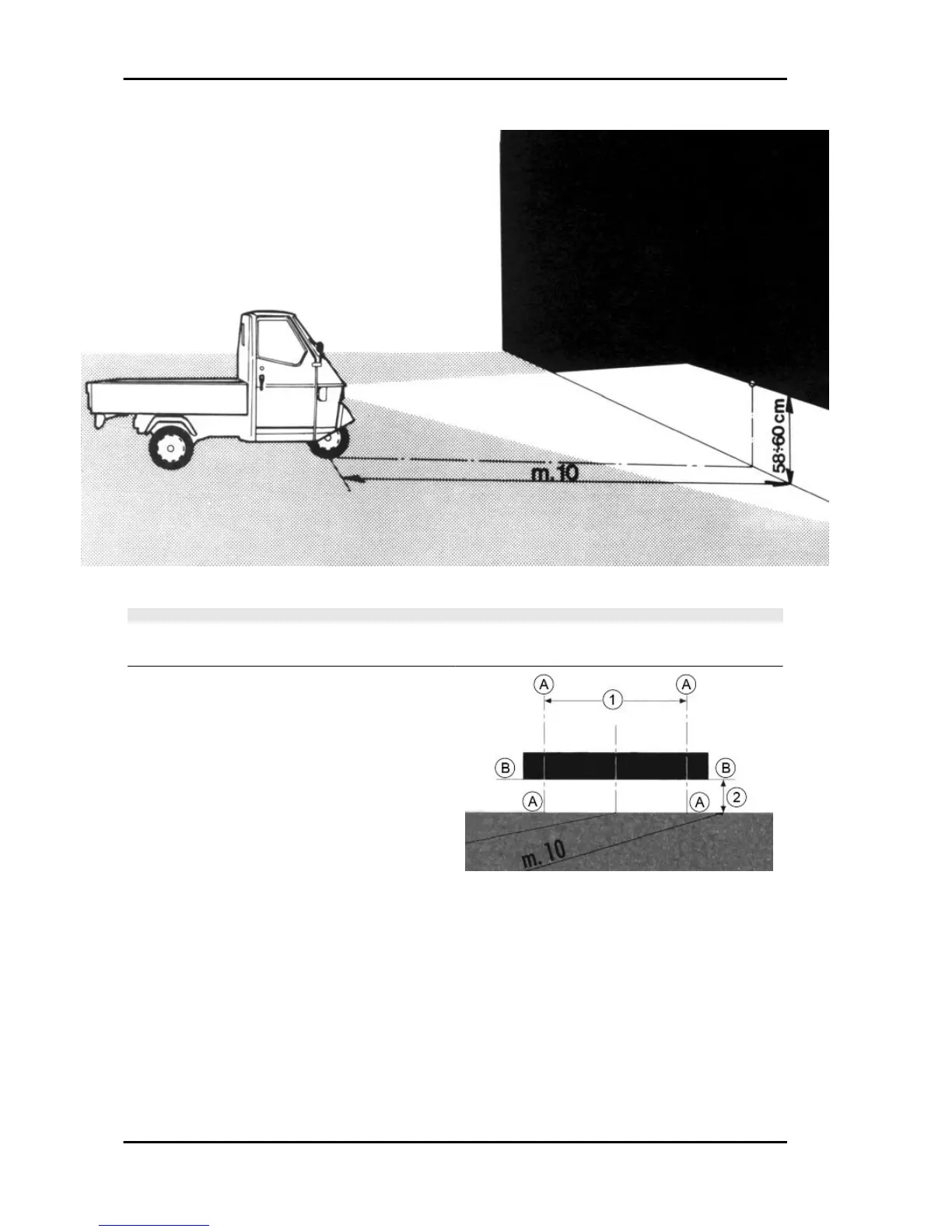

1. Place the vehicle in conditions of use, without
load, with the tyres inflated to the prescribed pres-
sure on flat grounds at 10 m from a white screen
placed in the shade. Make sure the vehicle axis is
perpendicular to the screen;
2.Draw two vertical lines «a-a» at a distance «1»
corresponding to the distance between headlight
axes. Draw a horizontal line «b-b» at height «2»
from ground corresponding to the headlight centre
height from ground multiplied by 0.9;
3.Start the engine and lock the throttle twist grip at
approximately 1/3 of its travel. Switch the dipped
beam headlight on. Direct the beam so that the
horizontal line between the light and the shade
falls above the horizontal line «b-b» drawn on the
screen;
Maintenance MSS APE 50
MA - 36
