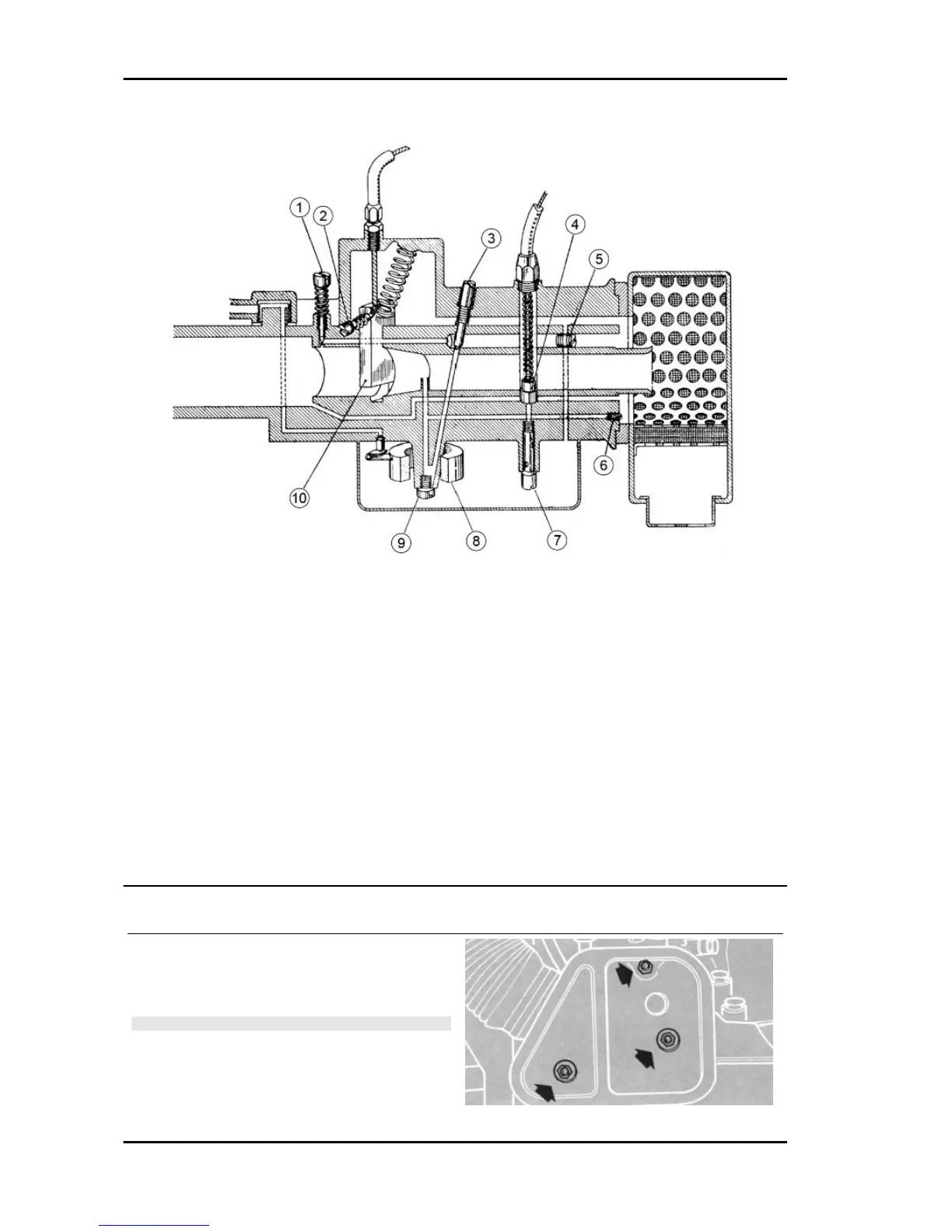

KEY:
1. Fuel adjustment screw at idle.
2. Minimum adjustment screw.
3. Minimum jet.
4. Starter valve.
5. Minimum air calibrator.
6. Maximum air calibrator.
7. Starter jet.
8. Float.
9. Max. jet
10. Throttle valve.
Air filter
CLEANING:
- Clean with a solvent with high flash point.
- Dry with compressed air.
CAUTION
NEVER RUN THE ENGINE WITHOUT THE AIR FILTER,
THIS WOULD RESULT IN AN EXCESSIVE WEAR OF THE
PISTON AND CYLINDER.
Maintenance MSS APE 50
MA - 32
