Pima FORCE Installation Guide

Chap. 2: Installation & Wiring
15

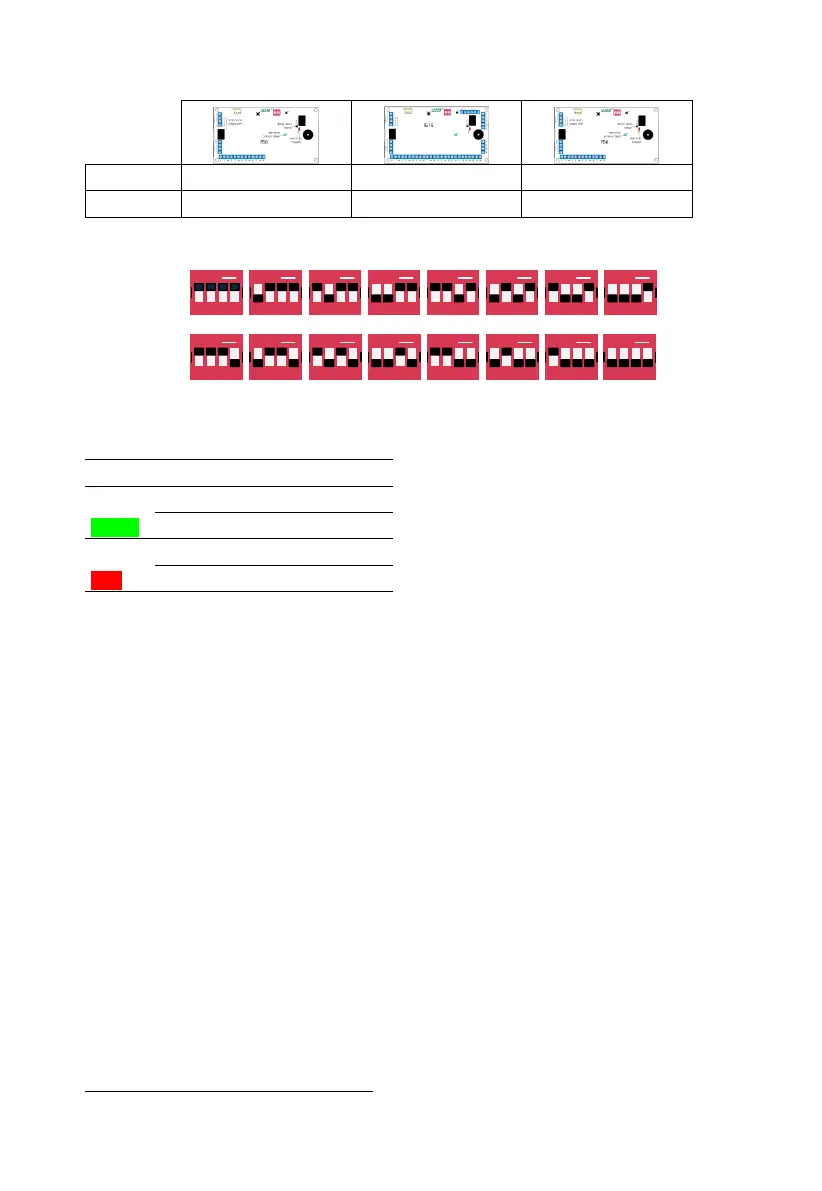

ID numbering example:
Expander
ZEX508
ZEX516
ZEX508
ID no.
6
7 (& 8)
9
The next diagram shows the dip-switch number settings, with the ID number for each setting:
Figure 14. Dip-switch optional settings
2.9.5 The LEDs
LED
State
Description
RUN
Green
Flashes
Card runs OK
Off
Card fault
BUS
Red
Flashes
BUS connection OK
Off
Communication fault
2.9.6 Location buzzer
Each FORCE expansion card has a buzzer, which helps in locating the card on the premises. The
buzzer is triggered together with the card’s relay output, when performing an output test (see
the Test and Diagnostics menu, on page 45).
2.9.7 Remote 16-zone expansion card, ZEX516
3
The ZEX516 allows adding 16 zone inputs to the FORCE security system, remotely. The ZEX516
has the same features of the ZEX508, except the following:
 16 zone inputs, 2 relay outputs
 Additional voltage and COM terminals
3
ZEP716 (P/N 8290013) is a ZEX516 expander with a 4.2A power supply, mounted in a metal case. See a
separate guide, P/N 4410474.
1 2 3 4
ON CEY
1
1 2 3 4
ON CEY
2
1 2 3 4
ON CEY
3
1 2 3 4
ON CEY
4
1 2 3 4
ON CEY
5
1 2 3 4
ON CEY
6
1 2 3 4
ON CEY
7
1 2 3 4
ON CEY
1 2 3 4
ON CEY
15
1 2 3 4
ON CEY
14
1 2 3 4
ON CEY
13
1 2 3 4
ON CEY
12
1 2 3 4
ON CEY
11
1 2 3 4
ON CEY
10
1 2 3 4
ON CEY
9
1 2 3 4
ON CEY
8
16
