Pioneer DJM-900NXS Service Manual

120
DJM-900NXS
1
2 3 4
A
B
C
D
E
F
1
2 3 4

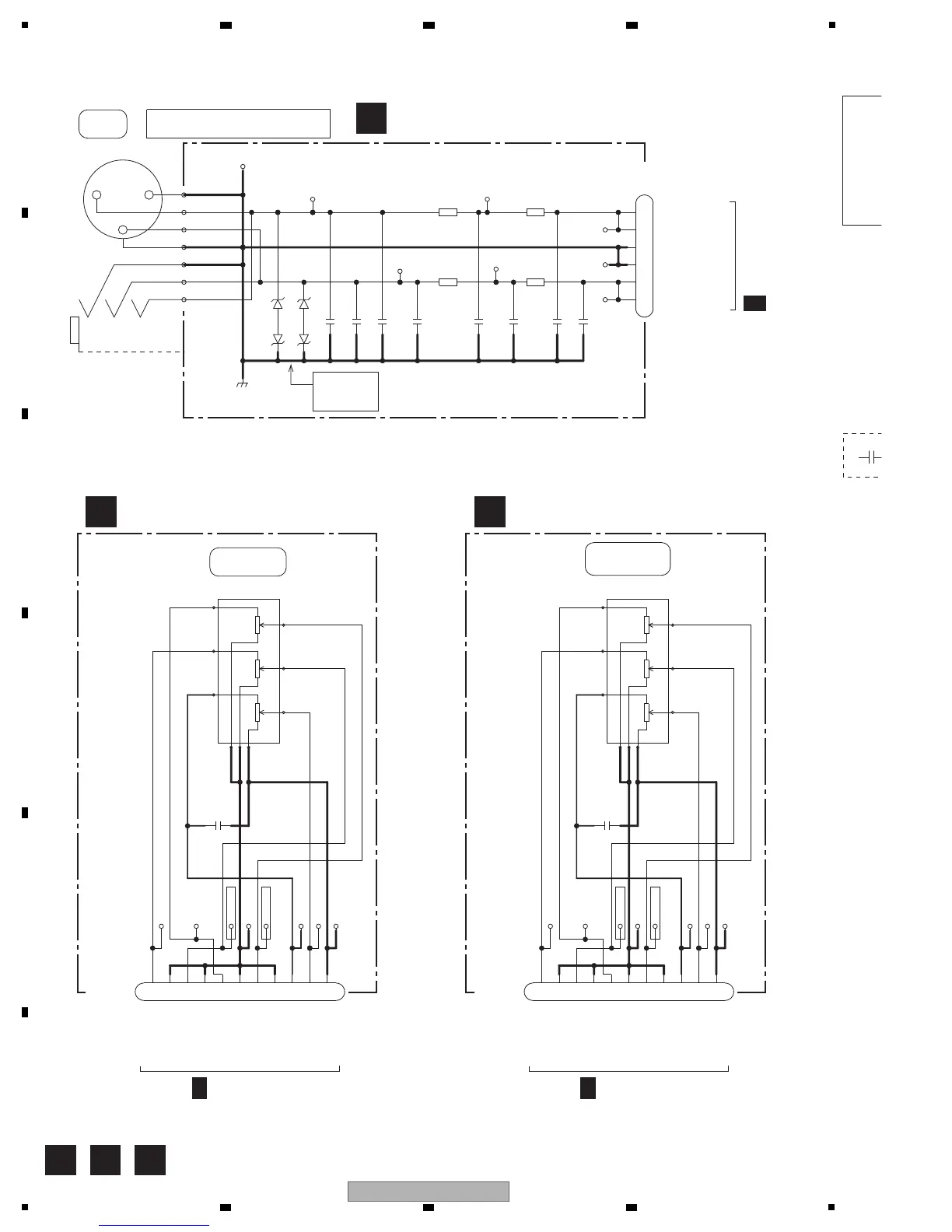

10.12 MIC1 and TRM1 to TRM4 ASSYS
B C D
MIC
CKS3533-A
CN 9001
MIC1_HOT 1
MIC1_HOT 2
GN DA
3
GN DA
4
MIC1_COLD 5
MIC1_COLD 6
C9004
1000p/50
CH
C9003
1000p/50
CH
C9005
1000p/50
CH
C9006
1000p/50
CH
C9007
1000p/50
CH
C9002
0.01u/50
LA
C9008
1000p/50
CH
C9001
0.01u/50
LA
D9003
UDZS15(B)
D9002
UDZS15(B)
D9001
UDZS15(B)
D9004
UDZS15(B)
GN DA
JA9001
DKB1108-A
1
2
3
5
6
7
4
R9004
100
RN
R9001
100
RN
R9003
100
RN
R9002
100
RN
MIC SHIELD:DNF1849
NOTE
C
LA
R
TRIM VR
CN8201
XKP3076-A
1 2 3 4 5 6 7 8 9
10 11
C8201
0.1u
DCS1119-A
VR8201
1
3
2
4
5
6
7
8
9
L_in GN DA R_in GN DA
L_out
GN DA
R_out
GN DA
V+3R3REF VR_TRIM3
GN DREF
Rch
Lch
NOT
TRIM VR
CN8401
XKP3076-A
1 2 3 4 5 6 7 8 9
10 11
C8401
0.1u
DCS1119-A
VR8401
1
3
2
4
5
6
7
8
9
L_in GN DA R_in GN DA
L_out
GN DA
R_out
GN DA
V+3R3REF VR_TRIM3
GN DREF
Rch
Lch
A
11/11
CN6201
A
2/11
CN4201
B
MIC1 ASSY (DWX3207)
C
TRM1 ASSY (DWX3203)
A
4/11
CN4601
D
TRM2 ASSY (DWX3204)
