Pioneer DJM-900NXS Service Manual

14
DJM-900NXS
1
2 3 4
A
B
C
D
E
F
1
2 3 4

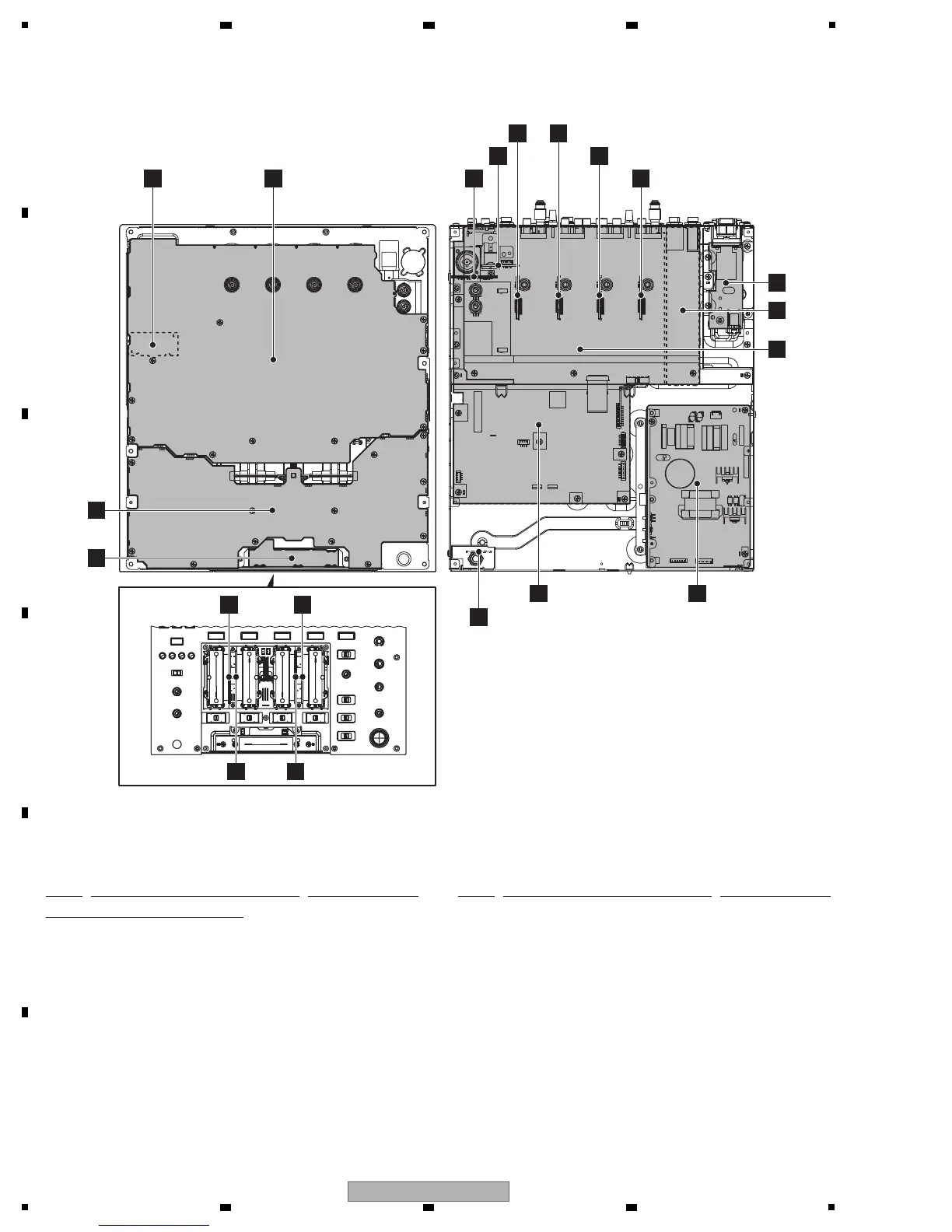

3.3 PCB LOCATIONS
NSP 1..MOTHER ASSY DWM2418
2..MAIN ASSY DWX3190
2..CDCB ASSY DWX3191
2..USBI ASSY DWX3192
NSP 1..AUDIO ASSY DWM2419
2..INPUT ASSY DWX3193
2..SEND ASSY DWX3195
2..TRM1 ASSY DWX3203
2..TRM2 ASSY DWX3204
2..TRM3 ASSY DWX3205
2..TRM4 ASSY DWX3206
NSP 1..SUB ASSY DWM2420
2..ACSW ASSY DWR1490
2..PNLB ASSY DWX3197
2..FAD1 ASSY DWX3198
2..FAD2 ASSY DWX3199
2..FAD3 ASSY DWX3200
2..FAD4 ASSY DWX3201
2..FADC ASSY DWX3202
2..MIC1 ASSY DWX3207
2..HPJK ASSY DWX3208
1..PNLA ASSY DWX3196
> 1..POWER SUPPLY ASSY DWR1492
Mark No. Description Part No. Mark No. Description Part No.
LIST OF ASSEMBLIES
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
S
POWER SUPPLY
ASSY
G
MAIN ASSY
I
HPJK ASSY
N
FAD2 ASSY
O
FAD3 ASSY
• Bottom view
J
SEND
ASSY
A
INPUT
ASSY
T
ACSW
ASSY
F
TRM4 ASSY
K
PNLA ASSY
L
CDCB ASSY
P
FAD4 ASSY
M
FAD1 ASSY
H
USBI ASSY
B
MIC1 ASSY
Q
PNLB
ASSY
R
FADC
ASSY
E
TRM3 ASSY
D
TRM2 ASSY
C
TRM1 ASSY

Pioneer DJM-900NXS Specifications

General

Sample rate	96 kHz
Frequency range	20 - 20000 Hz
Channels quantity	4 channels
Digital sound processing	24 bit
Number of EQ bands per channel	3
Line Signal-to-Noise Ratio (SNR)	107 dB
Total Harmonic Distortion (THD)	0.004 %
Microphone in	Yes
Line inputs (RCA)	6
Phono inputs (RCA)	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial out	1
Power consumption (typical)	42 W
