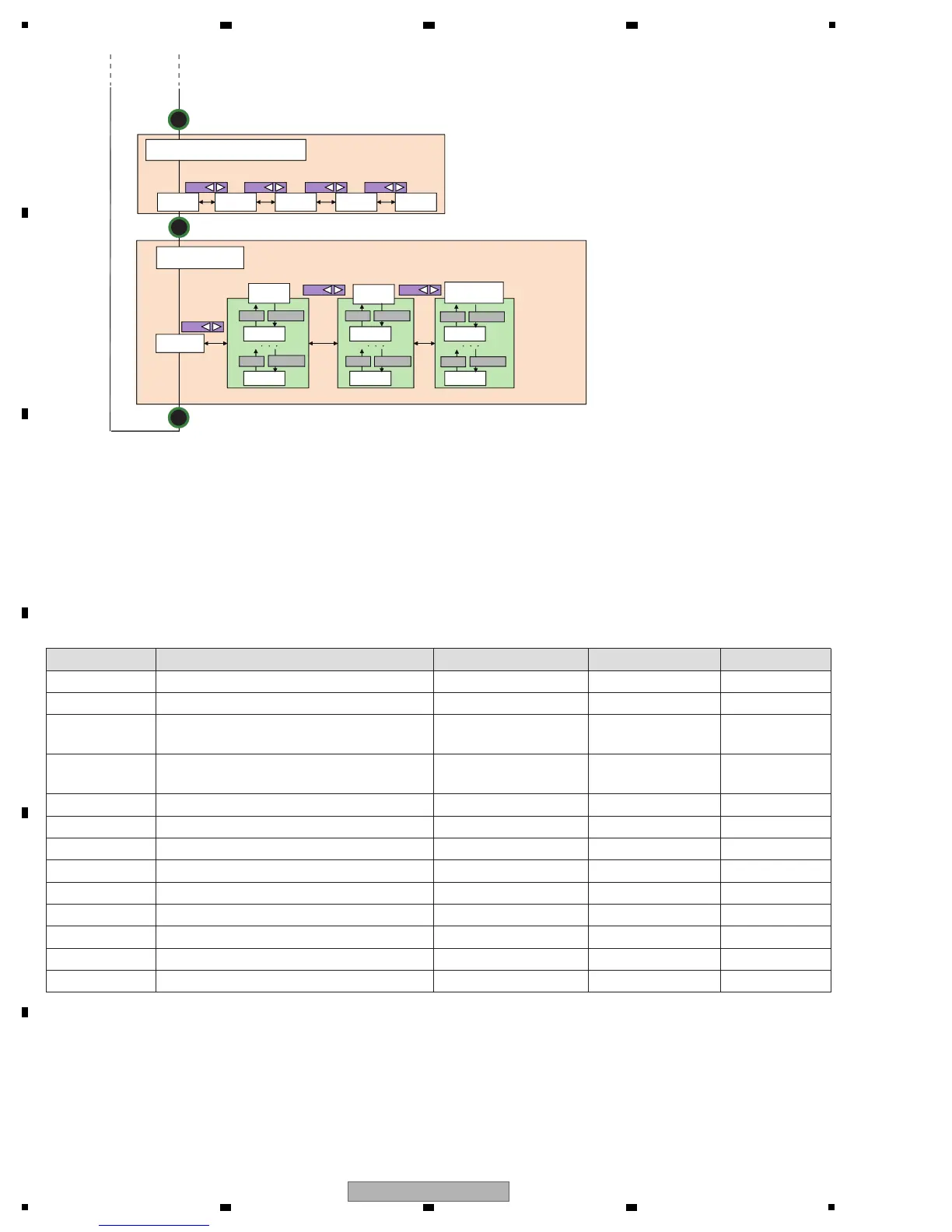

Mode 11 :
AD values of the fader test. "FDR AD"
CH1
Channel Fader
CH2
Channel Fader
CH3
Channel Fader
CH4
Channel Fader
TAP
Cross Fader
BEAT BEAT BEAT BEAT
TAP
Mode 12 :
Device test. "DEVICE"
TAP
LAN
BEAT
BEAT BEAT
AUTO
AUTO
QUANTIZE
QUANTIZE
QUANTIZE
QUANTIZE
QUANTIZE
QUANTIZE
AUTO
AUTO
MAC address
1st byte
IP address
1st byte
AUTO
AUTO
Subnet mask
1st byte
2nd byte 2nd byte 2nd byte
6th byte 4th byte 4th byte
Device Name Function Part No. Reference No. Assy
MAIN CPU Main control DYW1799 IC2011 MAIN Assy
FPGA For RAM, Digital input distinction, clock divider XC3S50A-4FTG256C IC2214 MAIN Assy
ETHER UCOM CONTROLLER for Ether net,
Main control support
R5S76700B200BG IC501 MAIN Assy
FLASH (64M) Memory for Ether UCOM
(Firmware in MAC Address)
DYW1798 IC502 MAIN Assy
SDRAM (128M) Memory for Ether UCOM (Work) MD56V72160B-6TAZ IC503 MAIN Assy
DSP Audio DSP D810K013BZKB400 IC701 MAIN Assy
FLASH (4M) Memory for DSP (Firmware) DYW1797 IC703 MAIN Assy
SDRAM (256M) Memory for DSP (Work) MD56V82160-6TAZ IC702 MAIN Assy
USB UCOM CONTROLLER for USB ADSP-BF524BBCZ-3A IC1801 MAIN Assy
SDRAM (64M) Memory for USB UCOM (Work) IS42S16400F-6TL IC1802 MAIN Assy
ETHER PHY PHY for Ether net LINK RTL8201EL-VC-GR IC1603 MAIN Assy
SUB UCOM LED, FL, KEY, VR control DYW1800 IC6601 PNLA Assy
CDC SENSOR Contact position detection of a X-PAD AD7147ACPZ500RL7 IC3601 CDCB Assy
Two or more FLASH and SDRAM are mounted in this unit.
Please judge the device which you should diagnose in reference to this list.
