MCLK_IN_1
V: 1.0 V/div. H: 10.0 nS/div.
A
INPUT ASSY
2-1
MCLK_IN_2
V: 1.0 V/div. H: 10.0 nS/div.
2-2
BCLK_IN_1
V: 1.0 V/div. H: 40.0 nS/div.
2-3
BCLK_IN_2
V: 1.0 V/div. H: 40.0 nS/div.
2-4
LRCLK_IN_1
V: 1.0 V/div. H: 10.0 μS/div.
2-5
LRCLK_IN_2
V: 1.0 V/div. H: 10.0 μS/div.
2-6
ADDA_RESET
V: 1.0 V/div. H: 10.0 μS/div.
2-7
RESET_IN1
V: 1.0 V/div. H: 10.0 μS/div.
2-8

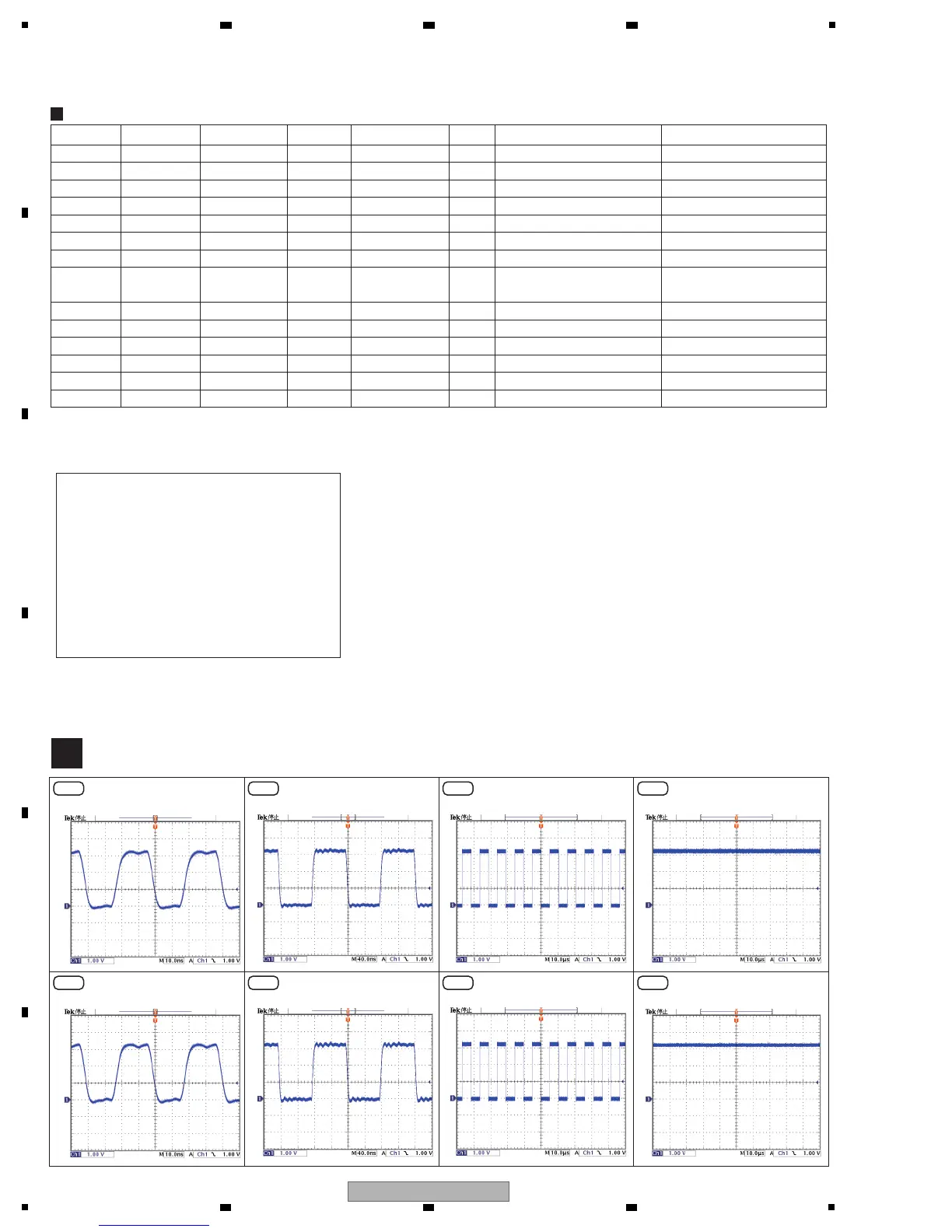

NOTE: The following waveforms were measured at the point of the corresponding
balloon number in the schematic diagram and PCB diagram.
IN or OUT Measure CH IN CH IN LEVEL IN FREQUENCY RL Other Settings Other Settings
IN CD CH1/2/3/4 0 dB 1K - TRIM LEVEL VR Center -
IN LINE CH2/3 0 dB 1K -
TRIM LEVEL VR Center -
IN PHONO CH1/4 -40 dB 1K -
TRIM LEVEL VR Center -
IN DIGITAL CH1/2/3/4 0 dB 1K -
TRIM LEVEL VR Center -
IN MIC MIC -40 dB 1K - TRIM LEVEL VR MAX
Center all EQs
IN RETURN RETURN 0 dB 1K - Level/Depth VR Center -
IN USB USB1/2/3/4 0 dB 1K - TRIM LEVEL VR
Center -
IN *LAN
COMPUTER1
/CH4
---
Connect with CDJ-2000
-
OUT MASTER1/2 CH1/CD 0 dB 1K
10 kΩ MASTER LEVEL VR Center Center all EQs/FADER Max
OUT BOOTH CH1/CD 0 dB 1K 10 kΩ BOOTH LEVEL VR Center Center all EQs/FADER Max
OUT REC CH1/CD 0 dB 1K 10 kΩ Center all EQs/FADER Max
OUT SEND CH1/CD 0 dB 1K 10 kΩ Center all EQs/FADER Max
OUT HP CH1/CD 0 dB 1K 32 Ω HP LEVEL Center Center all EQs/FADER Max
OUT DIG OUT CH1/CD 0 dB 1K 75 Ω Center all EQs/FADER Max
* For measurement of LAN AUDIO DATA, input a 1-kHz, 0-dB signal from the PC, using the LINK monitor function, for the INPUT line.
For the OUTPUT line, input a 1-kHz, 0-dB signal to MIC, using the LIVE SAMPLER function.
Measure the output waveforms at the CH1 CD input.
Switch Type Setting
MASTER ATT : 0 dB
MONO/ST(HP) : ST
MON/ST(MASTER) : ST
CH FADER CURVE : Right side (linear)
CROSS FADER CURVE : Center
CROSS FADER ASSIGN : THRU
MIC SW : ON
MASTER CUE : ON
FILTER : MIN
ISOLATOR : EQ
Measurement Conditoion
