Pioneer DJM-900NXS Service Manual

65
DJM-900NXS
5
6 7 8
5
6 7 8
A
B
C
D
E
F
7. DISASSEMBLY
A
Rotary SW Knob S (B)
(DAA1178) ×2
B
Rotary SW Knob S (C)
(DAA1204) ×4
C
Rotary SW Knob S (A)
(DAA1177) ×2
Black
White
Silver
White
D
Rotary SW Knob (HM)
(DAA1256) ×4
E
Rotary Knob (BN)
(DAA1220) ×3
Black
White
White
Black
F
FX Sel Knob
(DAA1213) ×5
White
Black
Projection
I
Rotary Knob Low (BN)
(DAA1265) ×1
Black
White
G
Rotary SW Knob (MA)
(DAA1198) ×2
Black
White
J
Select Knob
(DAA1205) ×1
Black
K
Rotary SW Knob (C)
(DAA1180) ×1
White
White
Black
H
Rotary SW Knob (B)
(DAA1176) ×12
L
Slider Knob 1
(DAC2684) ×5
Slider Knob 1
Slider Knob 2
Slider Knob Stopper
Slider Knob 2
(DAC2685) ×5
Slider Knob Stopper
(DNK5888) ×5
White
Gray
Black
A
D
F
C
E
G
B
H
I
G
J
F
K
E
L
Gray
White
Gray
White
Note: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the
procedures described here are common.

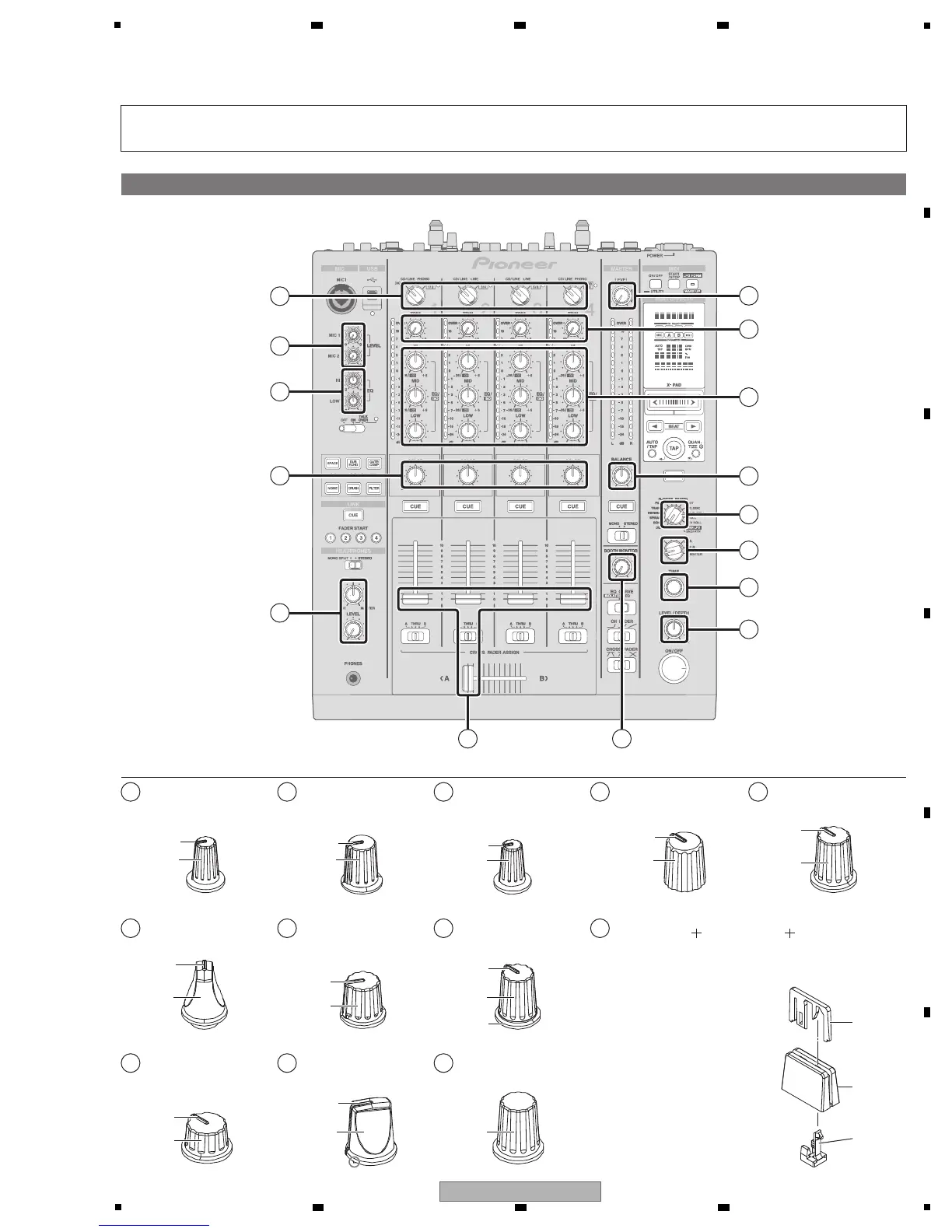

Knobs and Volumes Location

Pioneer DJM-900NXS Specifications

General

Sample rate	96 kHz
Frequency range	20 - 20000 Hz
Channels quantity	4 channels
Digital sound processing	24 bit
Number of EQ bands per channel	3
Line Signal-to-Noise Ratio (SNR)	107 dB
Total Harmonic Distortion (THD)	0.004 %
Microphone in	Yes
Line inputs (RCA)	6
Phono inputs (RCA)	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial out	1
Power consumption (typical)	42 W
