Pioneer DJM-900NXS Service Manual

94
DJM-900NXS
1
2 3 4
A
B
C
D
E
F
1
2 3 4

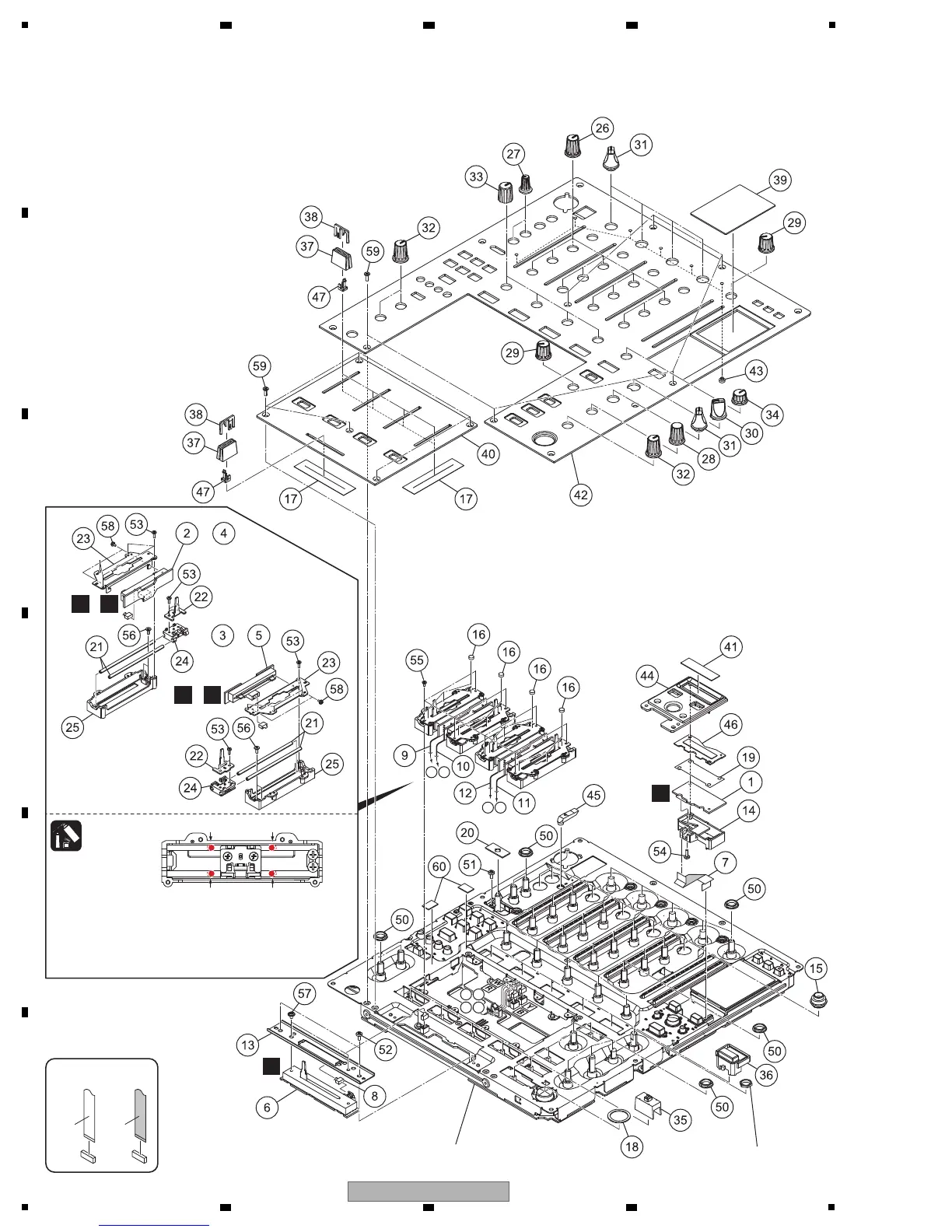

9.4 CONTROL PANEL SECTION (1/2)
M O
L
R
W R
W R
B Y
B Y
or
N P
or
Note:
Greasing must be performed at a total of 8 points, 2 points each for the
upper and bottom places of each shaft. (0.4 to 1 mg per point × 8 points)
After applying grease, move the slider base back and forth from one end
to the other for approximately 10 to 20 strokes, in order to fully spread
the grease.
CONTACT SIDE
NON-CONTACT
SIDE
Lubricating oil
(GYA1001)
Top & Bottom
Top & Bottom
Top & Bottom
Top & Bottom
or
or
Nut:
Attached part of
Rotary encoder (DSX1068)
Refer to
"9.5 CONTROL PANEL SECTION (2/2)" .
