Pioneer DJM-900NXS Service Manual

176
DJM-900NXS
1
2 3 4
A
B
C
D
E
F
1
2 3 4

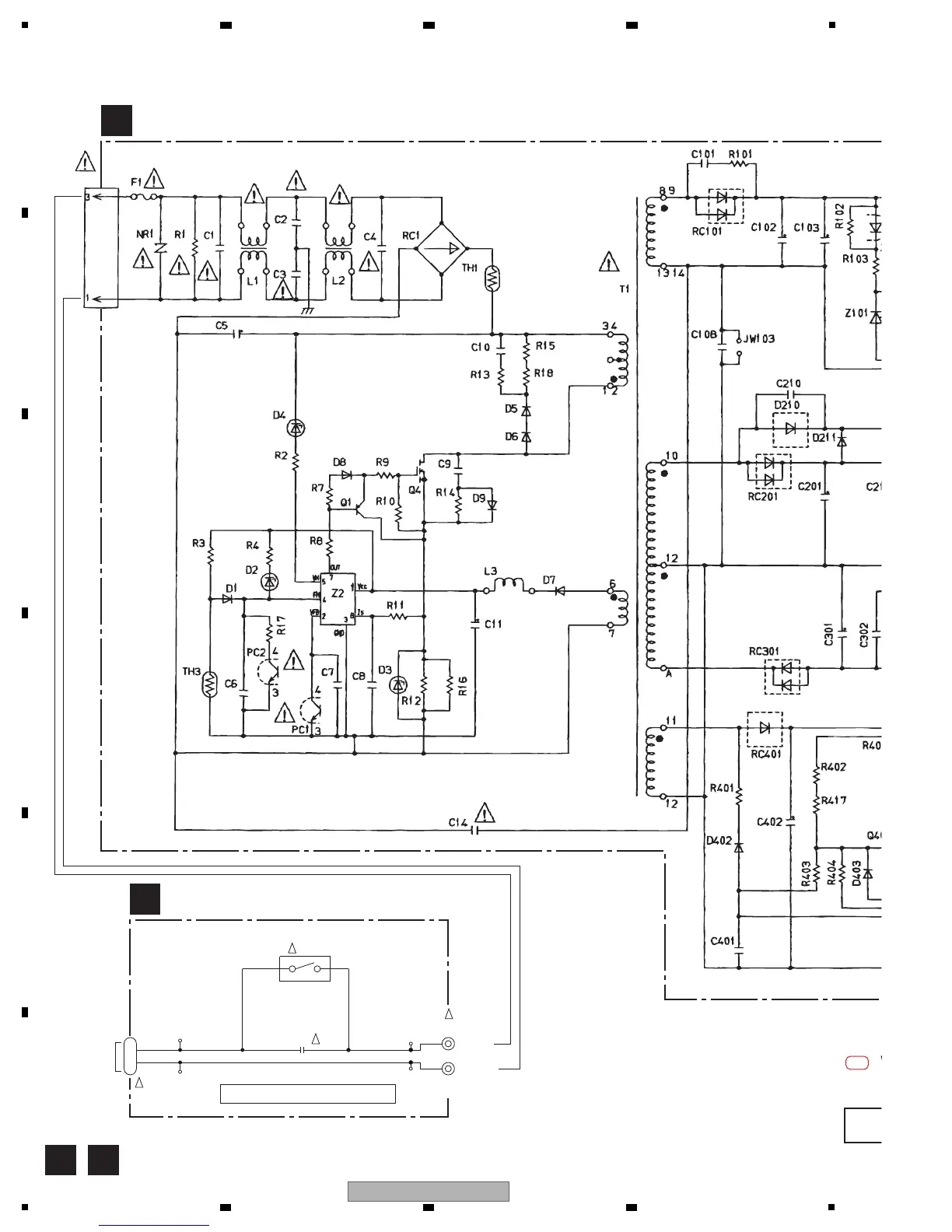

10.40 POWER SUPPLY and AC SW ASSYS
S T
!
!
!
!
2-178496-4
CN 9401
AC
INLET
1
2
C9402
ACG7030-A
DSA1036-A
S9401
12
(BROWN)
LIVE
NEUTRAL
JP9401
(WHITE)
DKP3799-A
JP9401_1
DKP3799-A_1
COVER FOR "C9402":DEC3212-
P1
T 3.15AH 250V
S
POWER SUPPLY ASSY (DWR1492)
T
ACSW ASSY (DWR1490)
• NOTE
CAUT
: W

Pioneer DJM-900NXS Specifications

General

Sample rate	96 kHz
Frequency range	20 - 20000 Hz
Channels quantity	4 channels
Digital sound processing	24 bit
Number of EQ bands per channel	3
Line Signal-to-Noise Ratio (SNR)	107 dB
Total Harmonic Distortion (THD)	0.004 %
Microphone in	Yes
Line inputs (RCA)	6
Phono inputs (RCA)	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial out	1
Power consumption (typical)	42 W
