5.35
Engine and Cooling Systems
5
oil line so that it can come out with the engine.

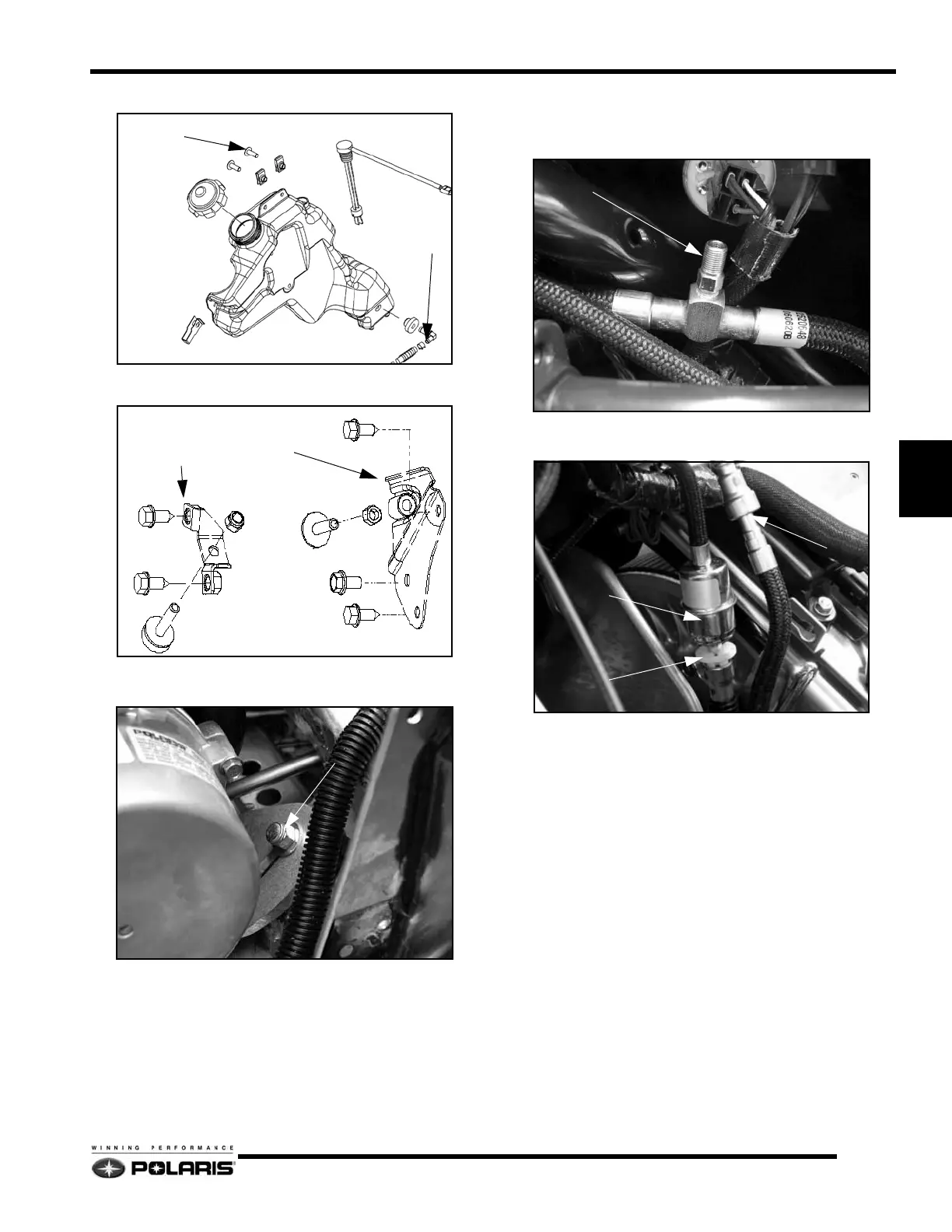

23. Remove the engine isolator and rear torque stop located on
the left hand side of the engine where equipped.
24. Remove the four engine mounting fasteners located on the
engine straps.
25. On CFI models, remove the Schrader valve cover located
under the steering hoop, and depressurize the fuel rail. See
“Fuel Rail Bleeding” on page 4.20.
26. Using the fuel line disconnection tool (PN PS-47152) (20),
separate the fuel filter and the fuel return line.
27. Secure the loose fuel lines out of the way for engine
removal.
NOTE: A helper will be needed for the following
steps.
28. Lift engine out of chassis and carefully place engine on
shock tower brace.
29. While holding the engine remove the throttle bodies by
loosening up the intake boot clamps and separating the
throttle bodies from the intake boots.
30. Remove the cable located in the center of the throttle
bodies.
31. Remove the oil cable lock nut from the threads on the cable
housing.
32. Remove the throttle cable from the oil pump bracket.
