Polaris IQ 2007 User Manual

8.33
Steering and Suspensions
8
IQ RMK 144 / 155 / 163 Pivots / Rear Idler
Assembly Notes
• Never re-use Nylock nuts. Always replace with new
parts.
• All pivots must rotate freely after tightening fasteners.
• Apply Polaris Premium All Season Grease to all grease
zerks as outlined in the periodic maintenance table.

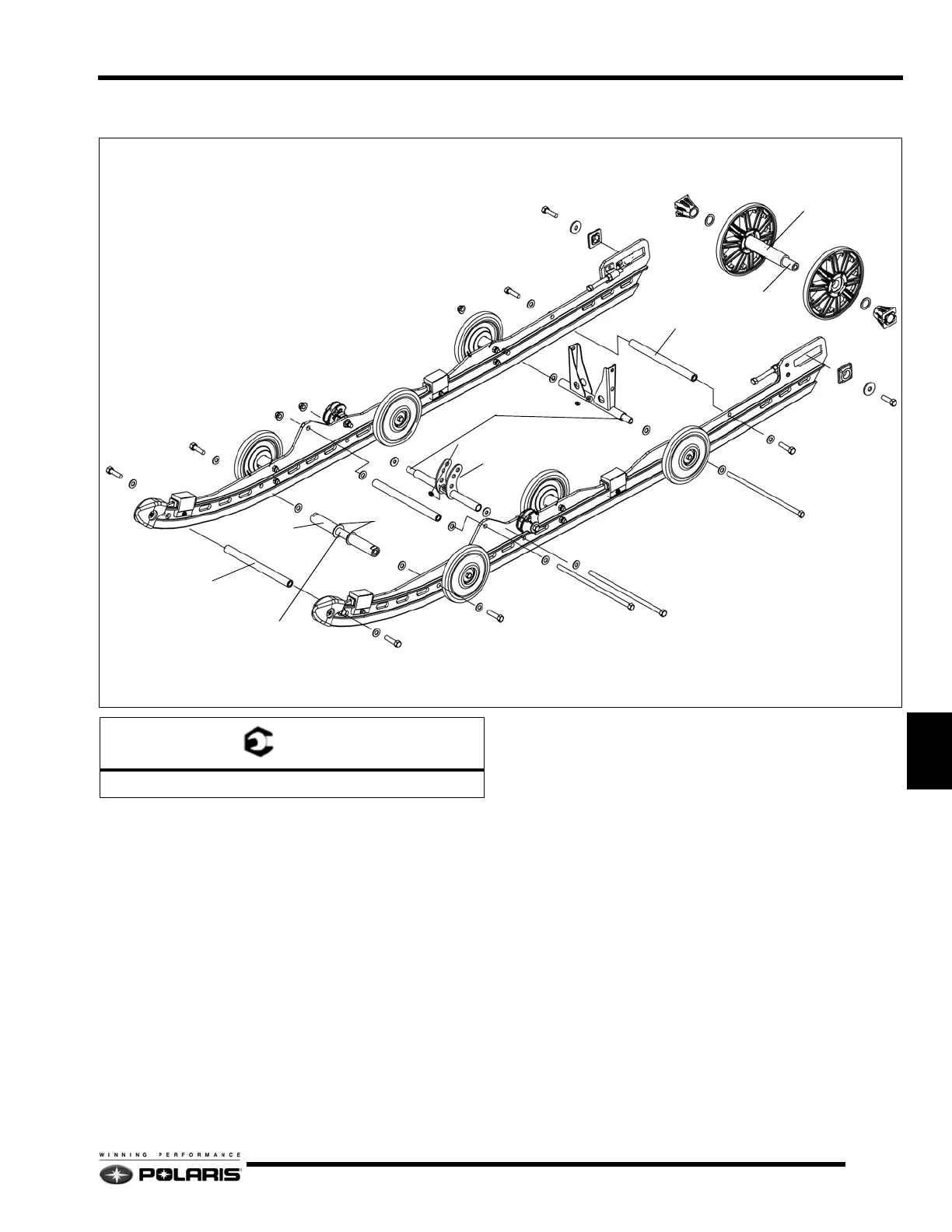

IDLER WHEEL
155 / 163 ONLY
SHOCK PIVOT
INNER SHAFT
SHAFT
INNER SHAFT
SHAFT
SPACER
INNER SHAFT
COLLAR
WASHERS
SPACER BLOCK
A
A
A
A
A
A
A
A
A
A
A
= T
A = 35 Ft.Lb. (47 Nm)
