3.14
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

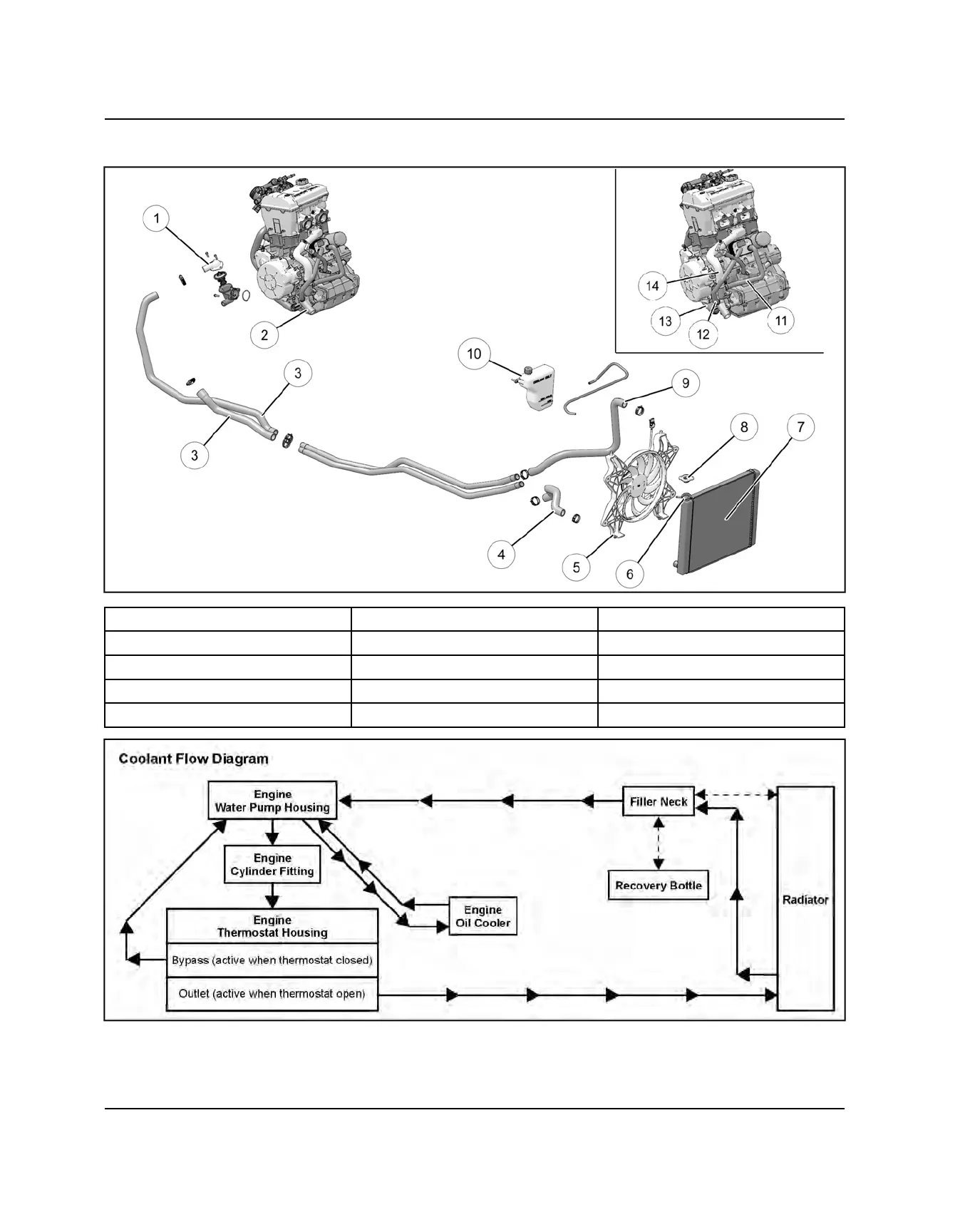

COOLING SYSTEM ASSEMBLY VIEW
q
Thermostat housing
y
Filler Neck
s
Oil Cooler Inlet Hose
w
Water Pump
u
Radiator
d
Oil Cooler Outlet Hose
e
Engine Hoses
i
Pressure Cap
f
Bypass Hose
r
Lower Radiator Hose
o
Upper Radiator Hose
g
Water Pump Outlet Hose
t
Fan Assembly
a
Recovery Bottle
ENGINE / COOLING SYSTEM
