Polaris RZR XP 1000 2017 Service Manual

8.4
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
STEERING SYSTEM

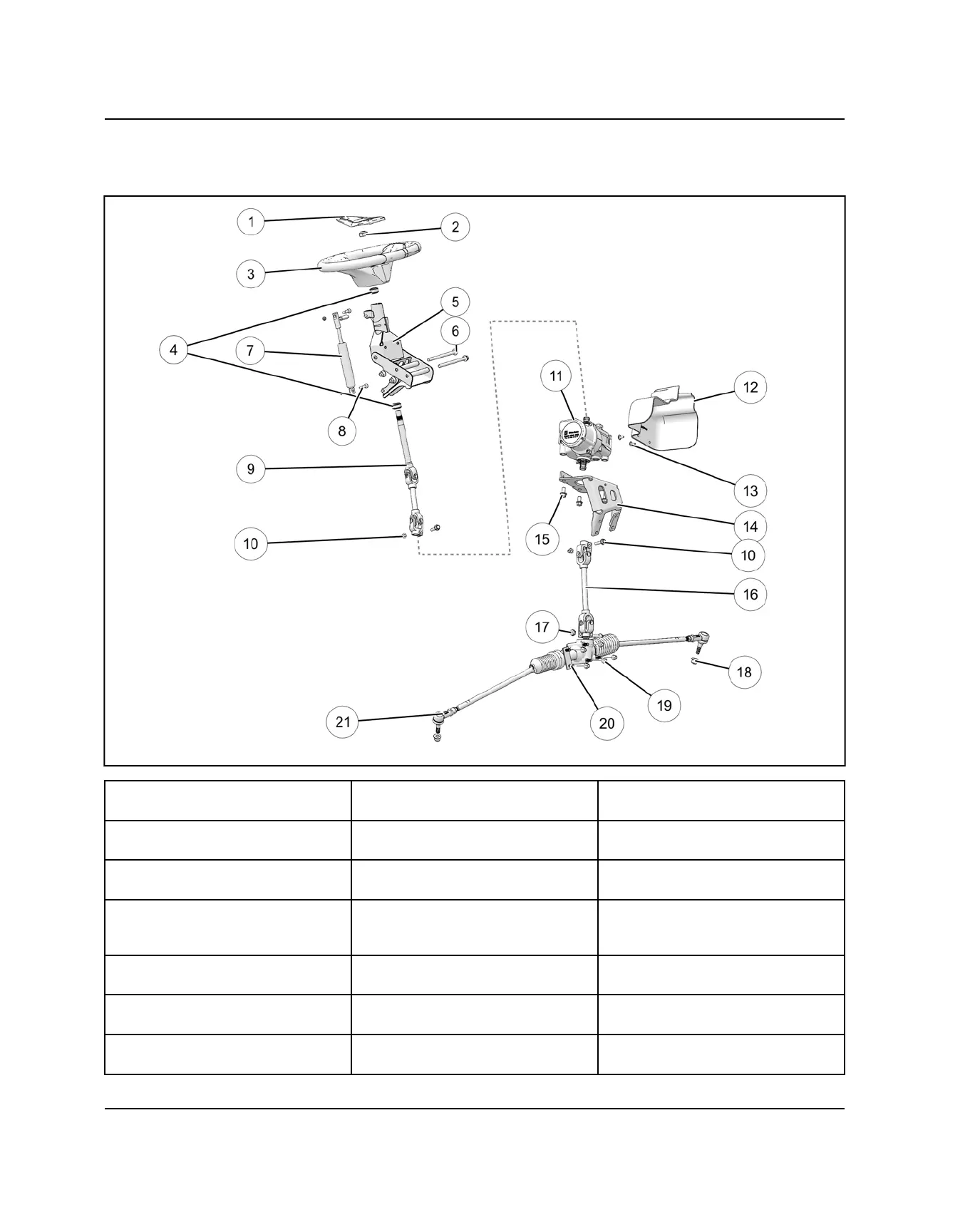

STEERING SYSTEM ASSEMBLY VIEW
q
Steering Wheel Cap
i
Tilt Shock Fasteners
7 ft-lb (10 Nm)
h
EPS to Bracket Fasteners
30 ft-lb (41 Nm)
w
Steering Wheel Nut
65 ft-lbs (88 Nm)
o
Upper Steering Shaft
j
Lower Steering Shaft
e
Steering Wheel
a
Steering Shaft to EPS Fasteners
15 ft-lbs (20 Nm)
k
Steering Shaft to Rack Fasteners
42 ft-lb (57 Nm)
r
Steering Shaft Bushings
s
EPS Unit
l
Tie Rod End Fasteners (Do not
reuse)
30 ft-lb (41 Nm) + 90°
t
Pivot Tube
d
EPS Cover
1(
Steering Rack Mounting Nuts
16 ft-lbs (22 Nm)
y
Pivot Tube Fasteners
8 ft-lb (11 Nm)
f
EPS Cover Fasteners
8 ft-lb (11 Nm)
2)
Steering Rack
u
Tilt Steering Shock
g
EPS Mount Bracket
2!
Tie Rod End Jam Nut
14 ft-lbs (19 Nm)
STEERING / SUSPENSION
