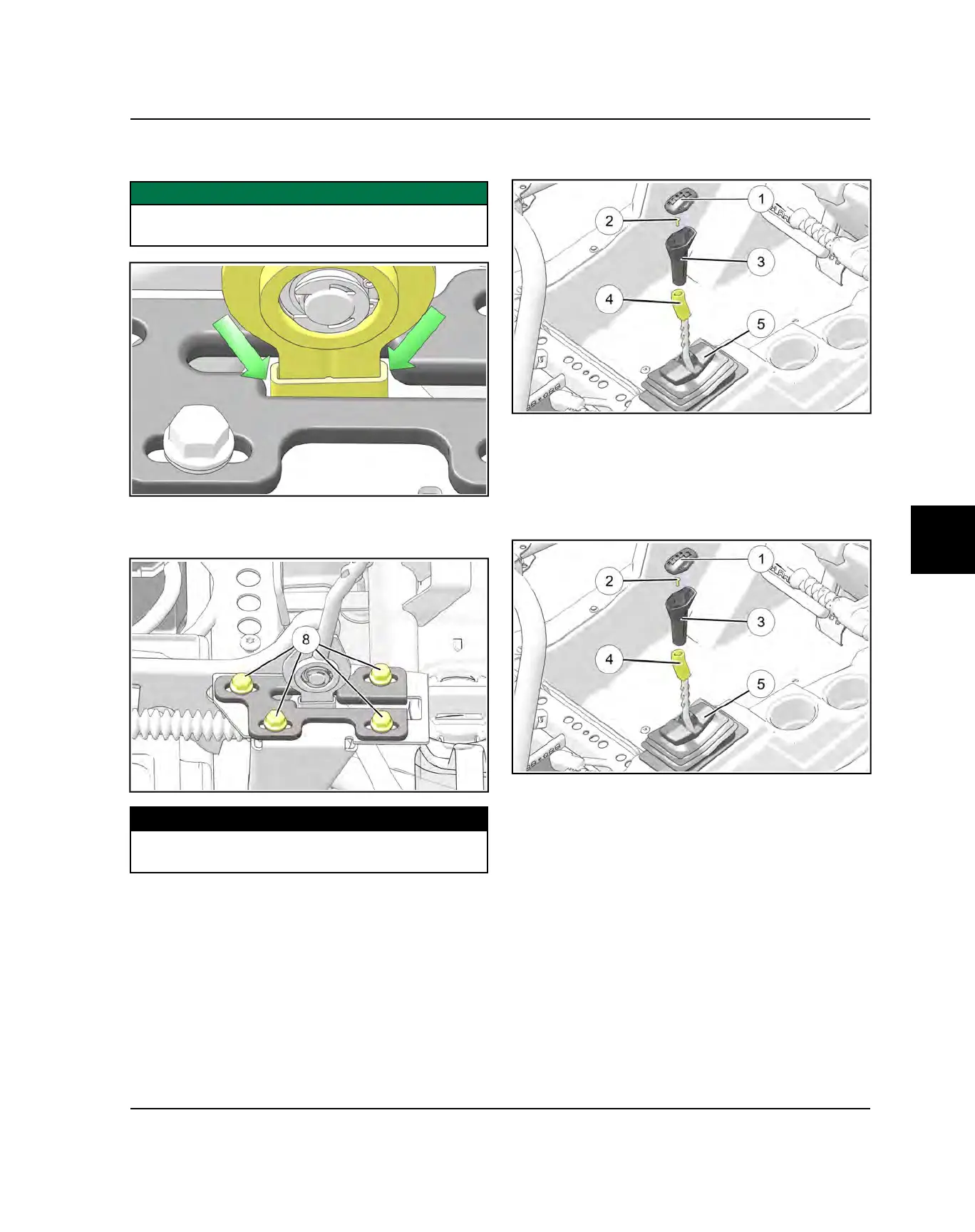

6. The gap between the shifter guide and the gated
plate should be the same on both sides.
IMPORTANT
The shift lever must be in Reverse when performing this
inspection.
7. If the gaps are not equal, move the bracket until the
gaps are equal and tighten the fasteners to
specification.
TORQUE
Gated Shifter Bracket Fasteners:
14 ft-lb (19 Nm)
8. Install the shifter boot
t
, spacer
r
, shift knob
e
,
retaining screw
w
and shift knob cover
q
.
GATED SHIFTER ADJUSTMENT (GOLD
METALLIC LE)
1. Place the gear selector in REVERSE.
2. Remove the shift knob cover
q
, retaining screw
w
,
shift knob
e
and spacer
r
from the shifter shaft.
3. Remove the shifter boot
t
from the center console.
TRANSMISSION
