Polaris RZR XP 1000 2017 Service Manual

6
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
6.11

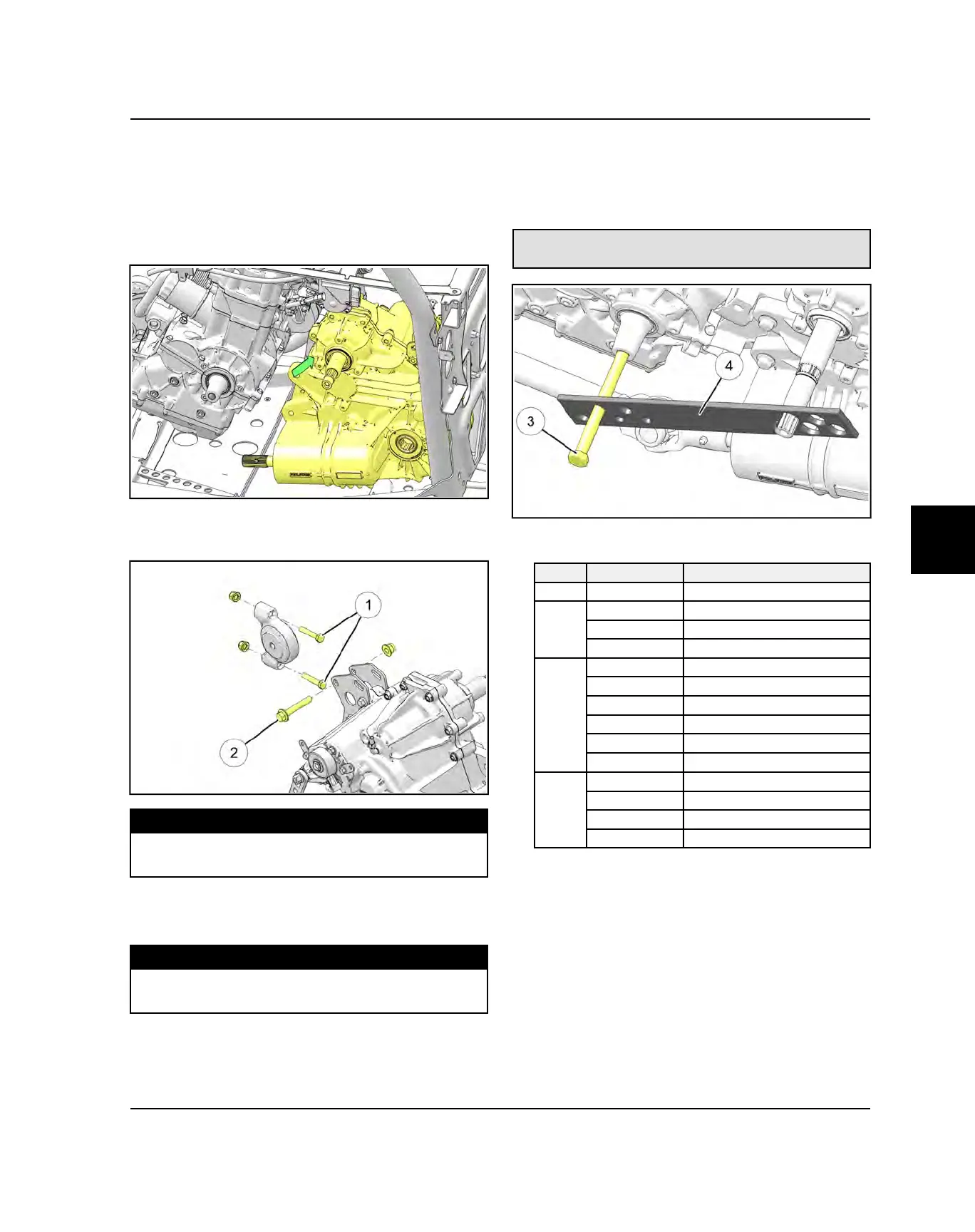

TRANSMISSION INSTALLATION
1. With the help of an assistant, position the
transmission into the vehicle frame through the left
rear wheel well area.
2. Slide transmission towards rear of the vehicle and
rotate the top of the transmission toward the right side
of the vehicle.
3. Install the rear transmission mount to the frame and
secure with M8 bolts and nuts. Torque nuts to
specification.
TORQUE
Rear Transmission Mount Bracket Fasteners
q
:
22 ft-lb (30 Nm)
4. Install M10 bolt and nut securing the transmission
bracket to the rear mount. Torque fasteners to
specification.
TORQUE
Rear Transmission Isolator Fasteners
w
:
40 ft-lb (54 Nm)
5. Install the two rear exhaust springs securing the
muffler to the rear transmission mounting bracket.
6. Install the Clutch Center Distance Tool onto
transmission input shaft and install the drive clutch
bolt
e
to properly position the clutch center distance.
The pictures below show the tool properly installed
r
.
Clutch Center Distance Tool:
PU-50658-A
PU-50658–A
HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013 RANGER 900
3
2014-16
ACE
2015-18
ACE 570
2015-16
RGR ETX
2013–18 RZR 570
2014–18
RANGER 500/570
2015-18
RANGER 570 Full-Size
4
2014-18
RANGER 900/1000
2015-18 RZR 900
2016-18 RZR 1000
2016–18
ACE 900
TRANSMISSION
