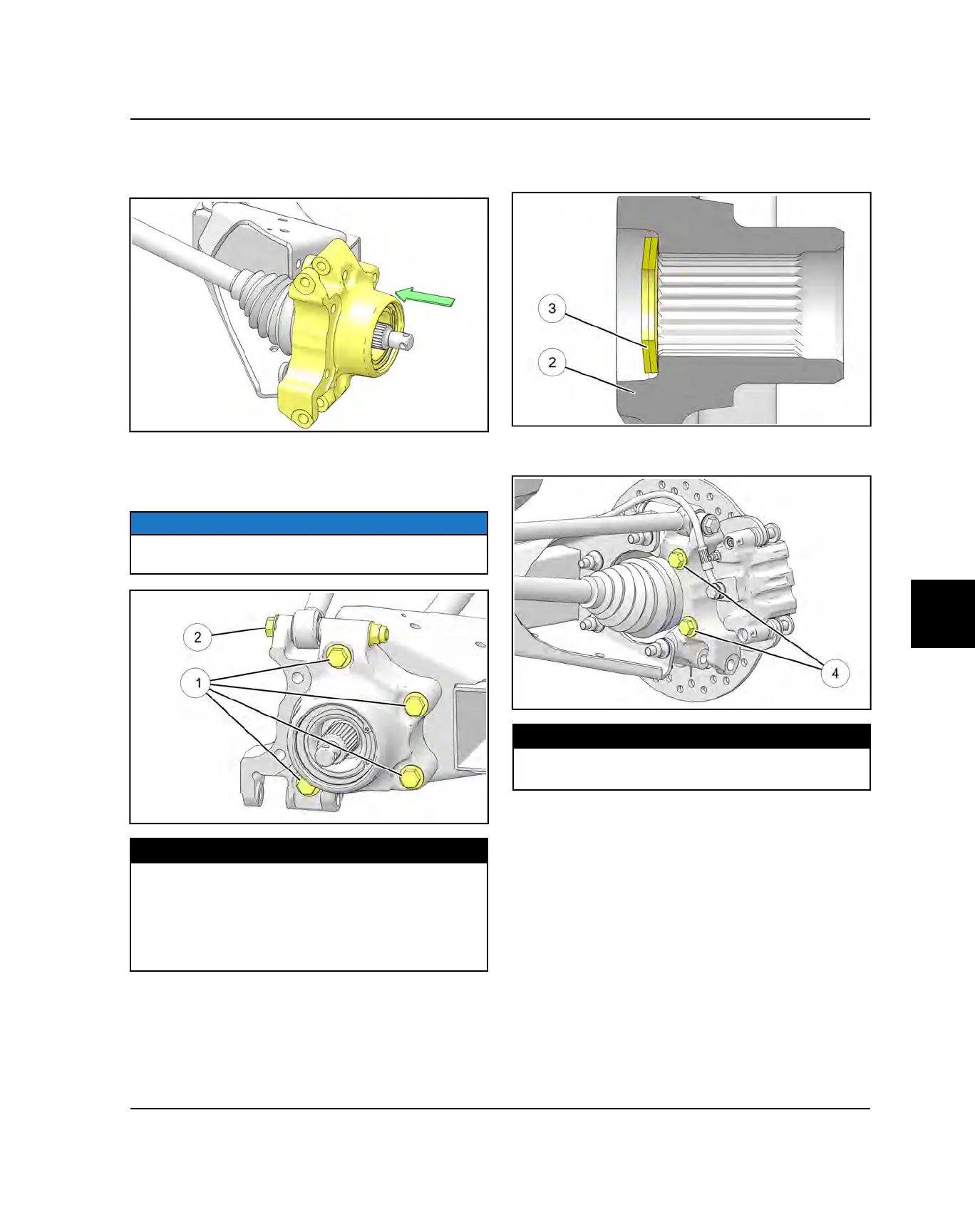

REAR BEARING CARRIER INSTALLATION
1. Install drive shaft through the backside of the bearing
carrier.
2. Install the four fasteners
q
that attach the rear
bearing carrier to the trailing arm. Install the one
fastener
w
that attaches the upper radius rod to the
bearing carrier. Torque bolts to specification.
NOTE
Use new nuts upon installation of the rear bearing
carrier.
TORQUE
Bearing Carrier to Trailing Arm Bolts:
42 ft-lb (54 Nm)
Radius Rod to Bearing Carrier Fasteners:
M10: 40 ft-lb (54 Nm)
M12 (outer): 50 ft-lb + 90° (68 Nm + 90°)
3. Apply anti-seize to drive shaft splines.
4. Install rear wheel hub assembly
w
, cone washers
e
,
and hand tighten the castle nut. Install washers with
domed side out.
5. Install the rear brake caliper assembly and new bolts
r
. Torque to specification.
TORQUE
Rear Caliper Mounting Bolts:
40 ft-lbs (54 Nm)
