Polaris RZR XP 1000 2017 Service Manual

8.20
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

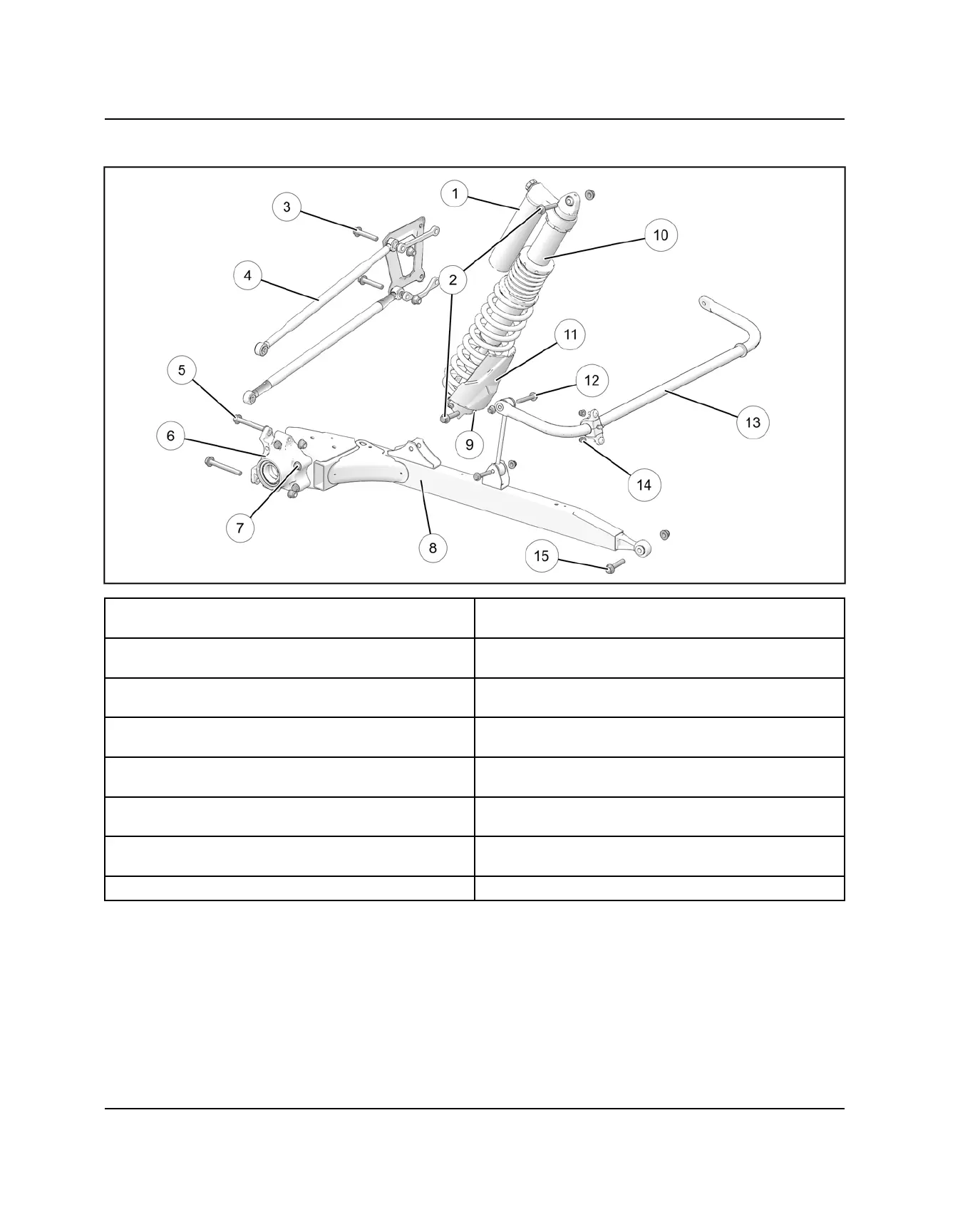

REAR SUSPENSION ASSEMBLY VIEW
q
Shock Reservoir
o
Shock Guard Screws
14 ft-lbs (19 Nm)
w
Shock Bolts
70 ft-lbs (95 Nm)
a
Rear Shock Assembly
e
Radius Rod Fasteners
50 ft-lb (68 Nm) + 45°
s
Shock Guard
r
Radius Rod
d
Stabilizer Bar Link Fasteners
40 ft-lbs (54 Nm)
t
Radius Rod Fasteners
50 ft-lb (68 Nm) + 45°
f
Rear Stabilizer Bar
y
Rear Bearing Carrier
g
Stabilizer Bar Mounting Clamp Fasteners
20 ft-lb (27 Nm)
u
Bearing Carrier Bolts
40 ft-lb (54 Nm)
h
Trailing Arm Mounting Bolts
70 ft-lb (95 Nm)
i
Trailing Arm
STEERING / SUSPENSION
