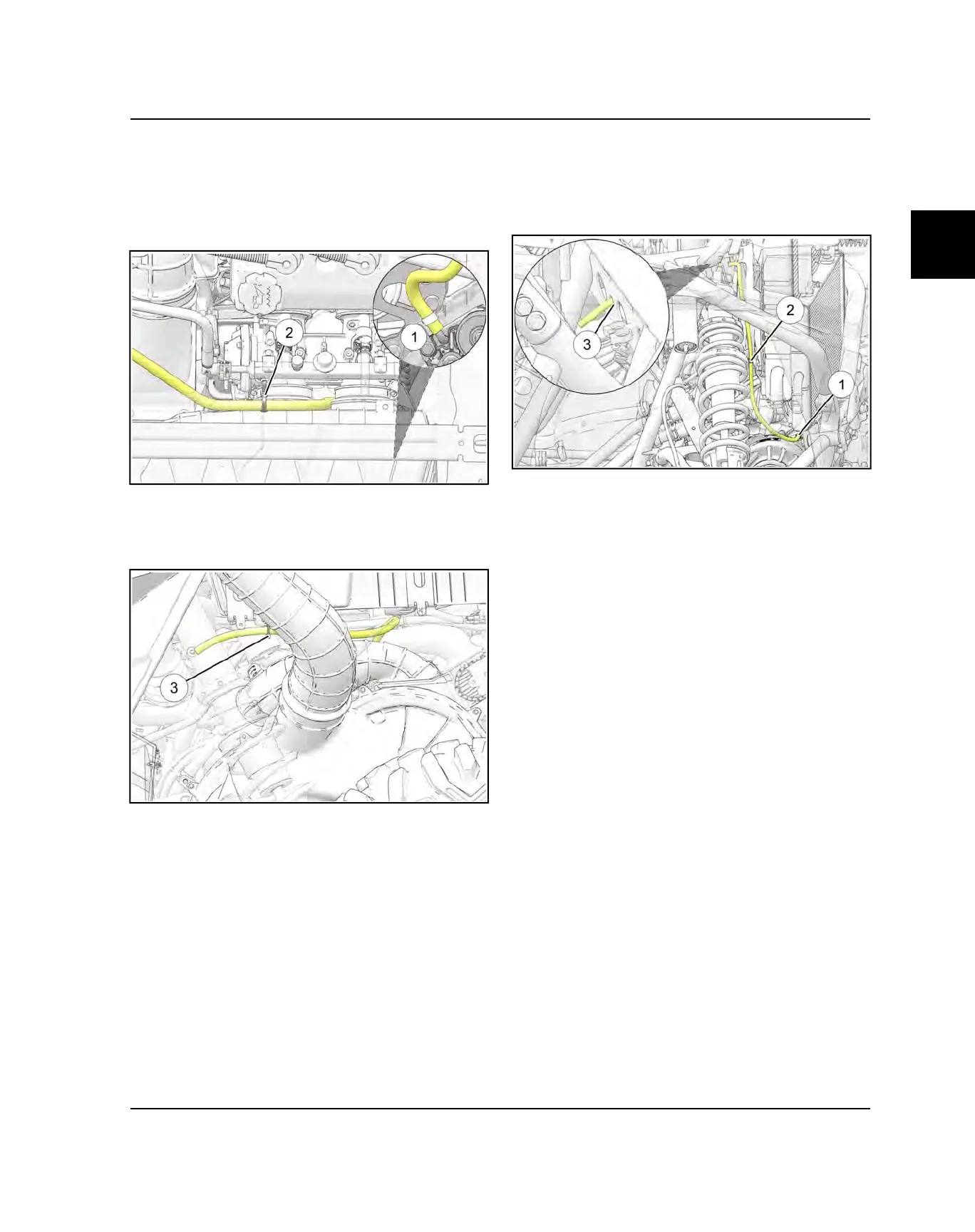

TRANSMISSION VENT LINE ROUTING
The transmission vent line connects to a nipple
q
on the
side of the transmission near the transmission switch.
The vent line routes up through the gap between the
MAG and PTO intake runners and is retained by a clip
w
mounted to the cargo box rear bracket.
The line runs parallel with the fuel supply line and is
retained by a zip tie
e
attached to the cargo box front
bracket. The line terminates to open air (does not
terminate to a fitting or hole in the frame).
FRONT GEARCASE VENT LINE ROUTING
The front gearcase vent line starts at the front gearcase
q
and routes up the right side. The vent line is secured
by one retaining clip
w
and is routed through a hole in
the frame support
e
behind the radiator.
