Polaris RZR XP 1000 2017 Service Manual

11.34
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
SWITCHES

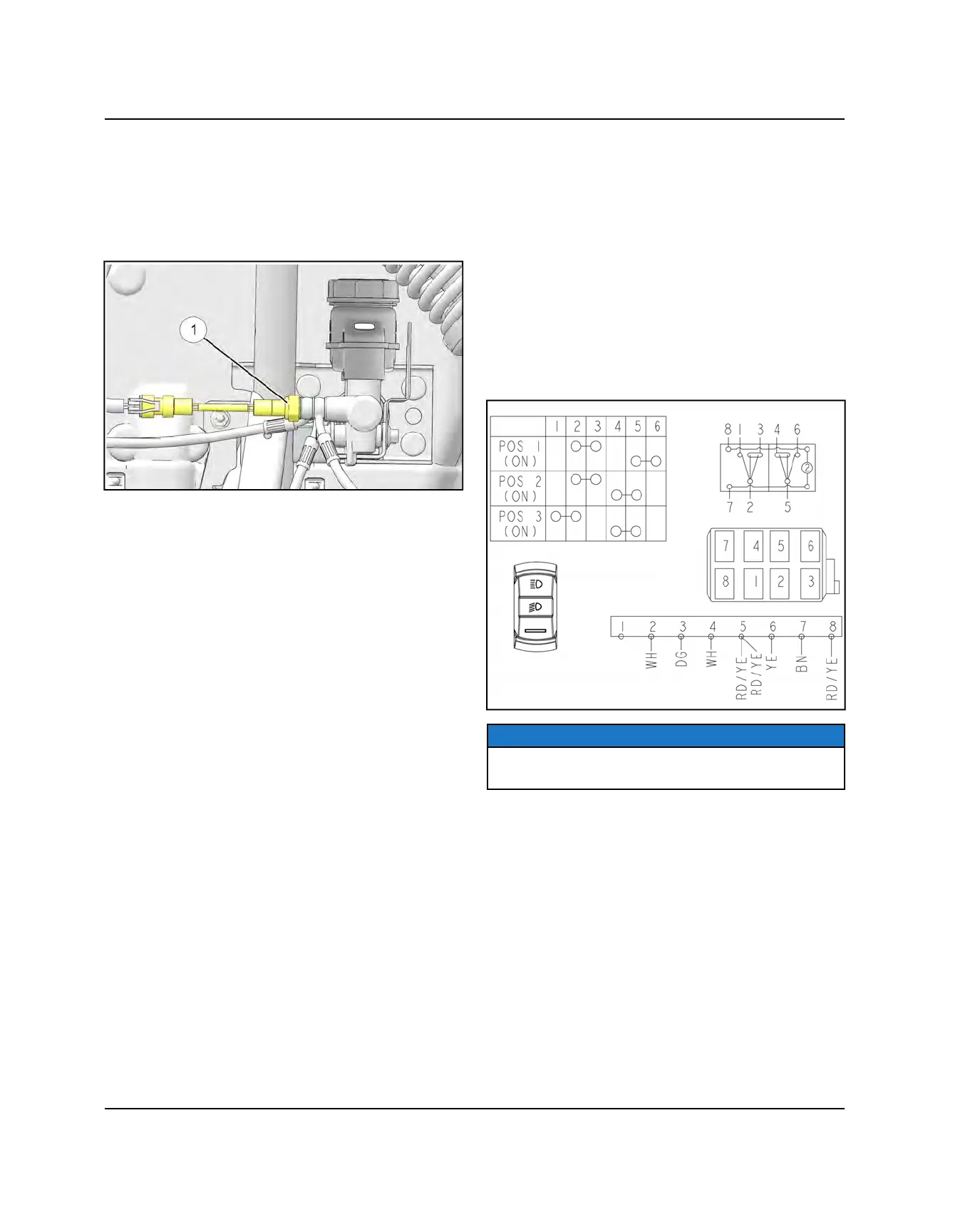

BRAKE LIGHT SWITCH
1. The brake light switch
q
is located on the front brake
line banjo bolt of the master cylinder. The brake
switch can be accessed through the left front wheel
well opening.
2. Disconnect wire harness from switch and connect an
ohmmeter across switch contacts. The reading
should be infinite (OL).
3. Apply the brake and check for continuity. If there is
no continuity or if resistance is greater than 0.5
ohms, clean the switch terminals. Re-test and
replace switch if necessary.
4. For switch replacement, refer to Chapter 9 “Brakes”.
HEADLAMP SWITCH
1. Disconnect the headlamp switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (OFF / LOW /
HIGH). If any of the tests fail, replace headlamp
switch assembly.
• Move the switch to HIGH. There should be continuity
between switch pins 2 and 3; 5 and 6; 7 and 8.
• Move the switch to LOW. There should be continuity
between switch pins 2 and 3; 4 and 5; 7 and 8..
• Move the switch to OFF. There should be continuity
between switch pins 1 and 2; 4 and 5; 7 and 8.
NOTE
Pins 7 and 8 provide power and ground to light the
switch lamp.
ELECTRICAL
