REAR PROP SHAFT REMOVAL

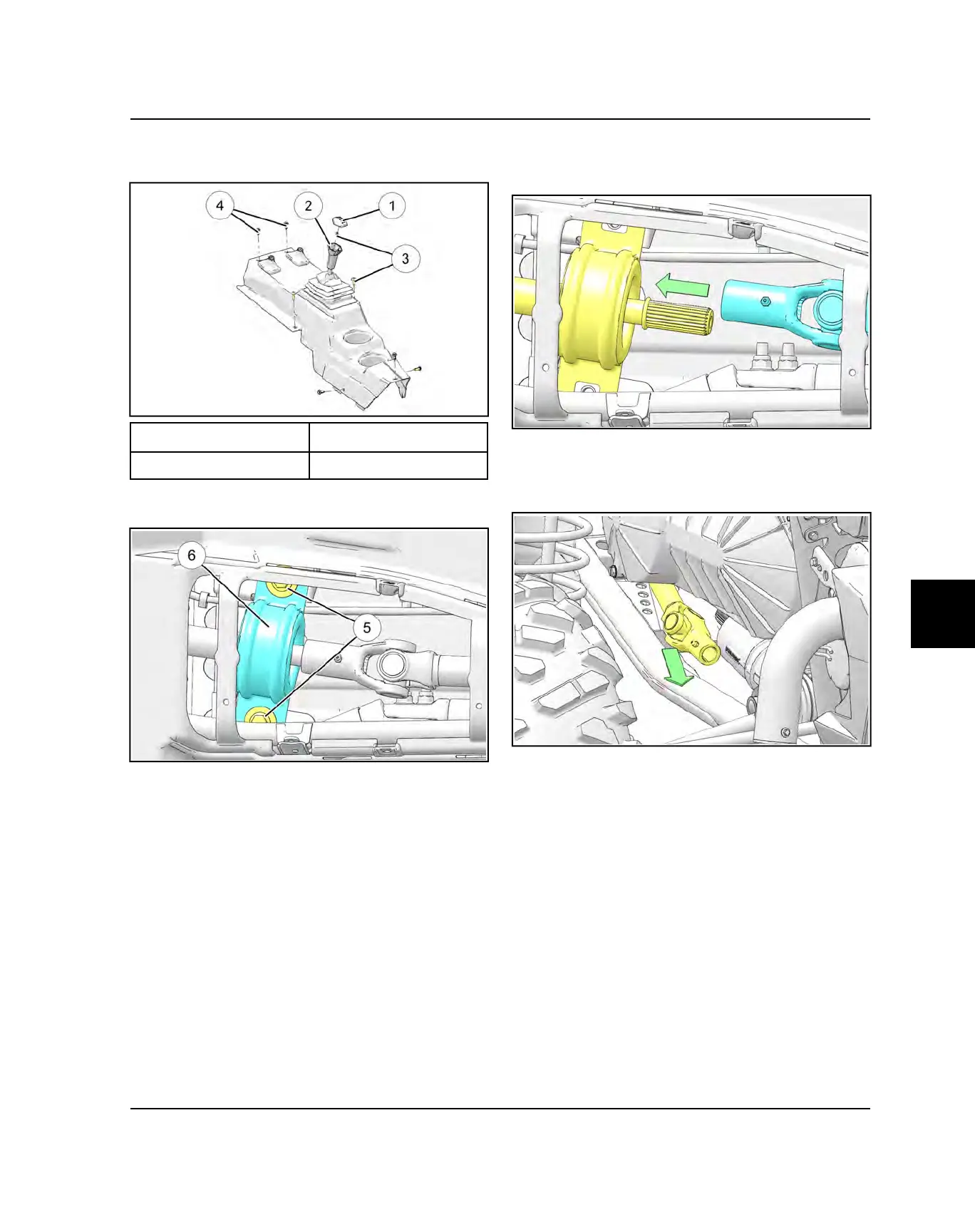

1. Remove the center console.
q
Cap
e
Torx Screw
w
Shifter
r
Push Rivet
2. Remove the two fasteners
t
retaining the support
bearing cover
y
to the frame.
3. While moving the prop shaft support bearing
assembly, slide the rear prop shaft towards the rear
until the front prop shaft yoke disengages from the
splines.
4. Once the front and rear prop shafts have been
separated, slide the rear prop shaft forward to
remove it from the transmission output shaft.
5. Remove the support bearing rubber bushing by
pulling it off the rear prop shaft.
6. Remove the rear prop shaft out of the left rear of the
vehicle.
