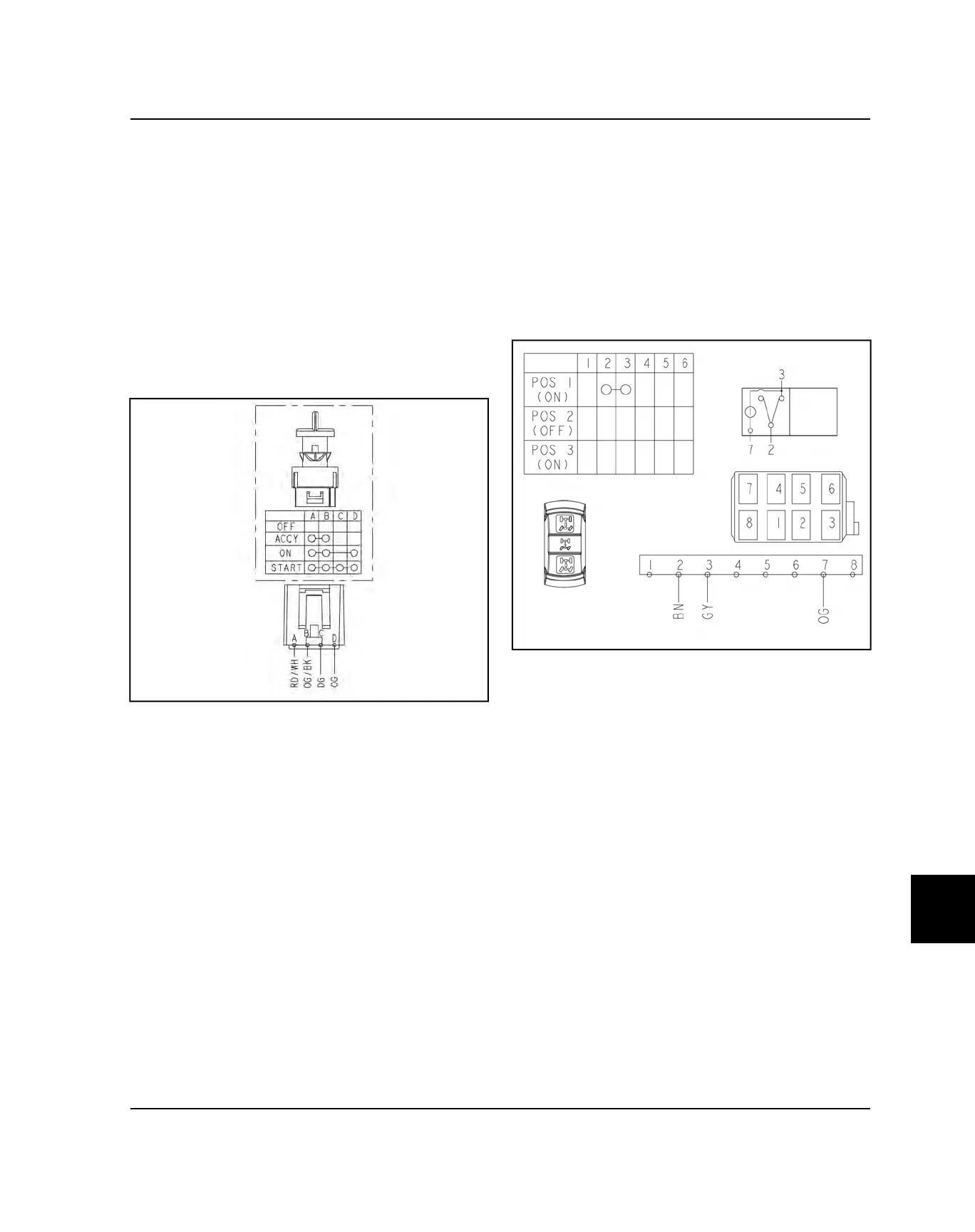

IGNITION / KEY SWITCH
1. Disconnect the key switch harness by depressing the
connector lock and pulling on the connector. Do not
pull on the wiring.
2. Test between the 4 sets of outputs (OFF / ACCY / ON
/ START). If any of the tests fail, replace ignition
switch assembly.
• In the OFF position, there should be no continuity
between any of the pins.
• Turn the key to ACCY position. There should be
contunity between switch pins A and B.
• Turn the key to ON position. There should be
continuity between switch pins A, B and D.
• Turn the key to START position. There should be
continuity between all the pins on the switch.
AWD / 2WD SWITCH (NO TURF MODE)
1. Disconnect the AWD / 2WD switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 2 sets of outputs (AWD / 2WD). If
any of the tests fail, replace the switch assembly.
• Move the switch to AWD (ON). There should be
continuity between switch pins 2 and 3 as well as 3
and 7.
• Move the switch to 2WD (NONE / OFF). There should
ONLY be continuity between pins 3 and 7.
