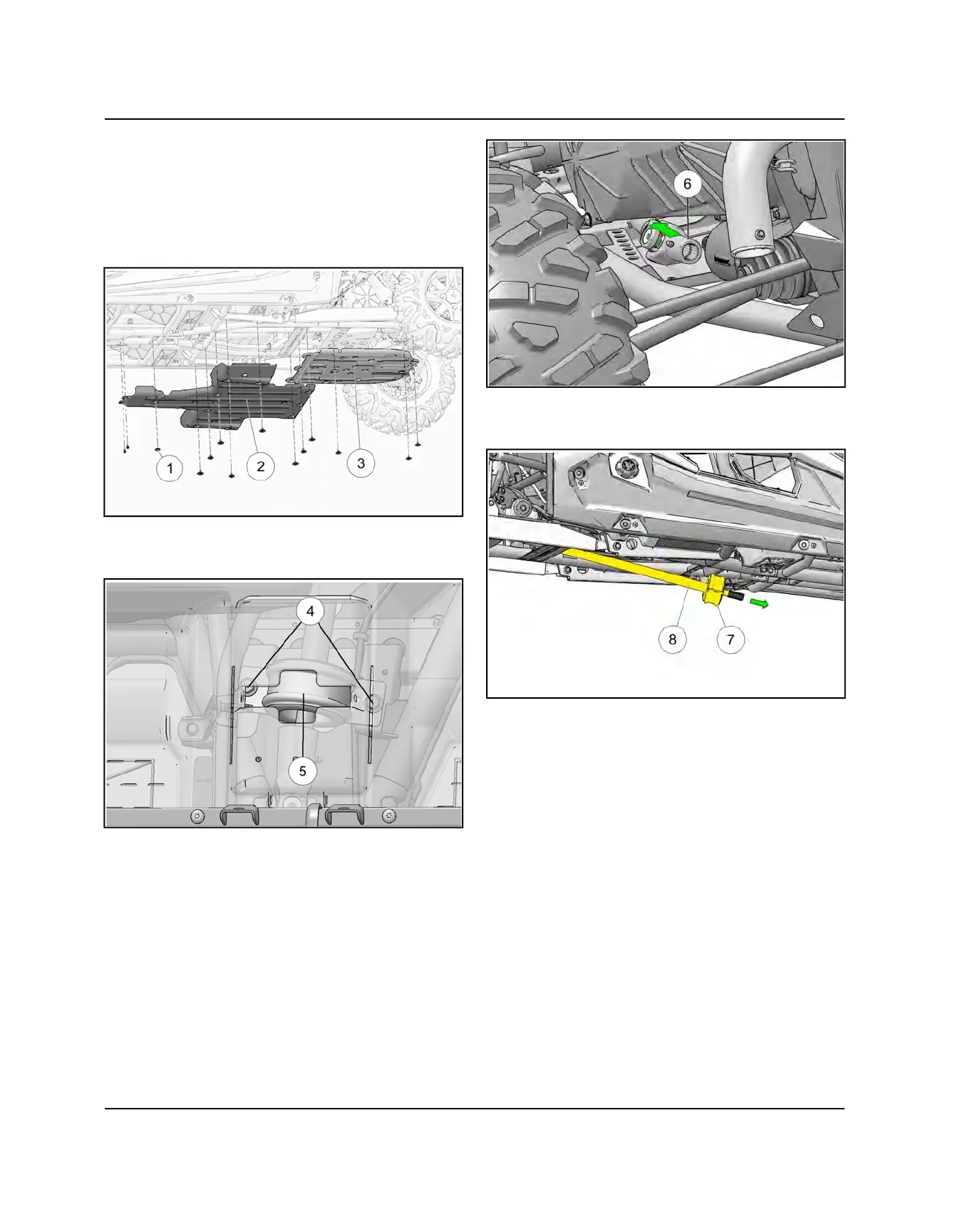

REAR PROP SHAFT REMOVAL XP 4
1. Remove all seats.
2. Remove the front and rear center consoles (see
Chapter 10 – Rocker Panels, Rear Console and Floor
XP 4, page 10.25).
3. Remove the fasteners
q
from center
w
and rear skid
plates
e
.
4. Remove center and rear skid plates.
5. Remove the fasteners
r
securing the support
bearing cover
t
to the frame.
6. Move the prop shaft support bearing assembly to the
drivers side to slide the rear prop shaft yoke
y
off the
transmission output shaft.
7. Slide the prop shaft to the rear of the vehicle until the
front of the shaft clears the frame support and slide
the prop shaft forward out of the vehicle.
