9.23
REAR BRAKES

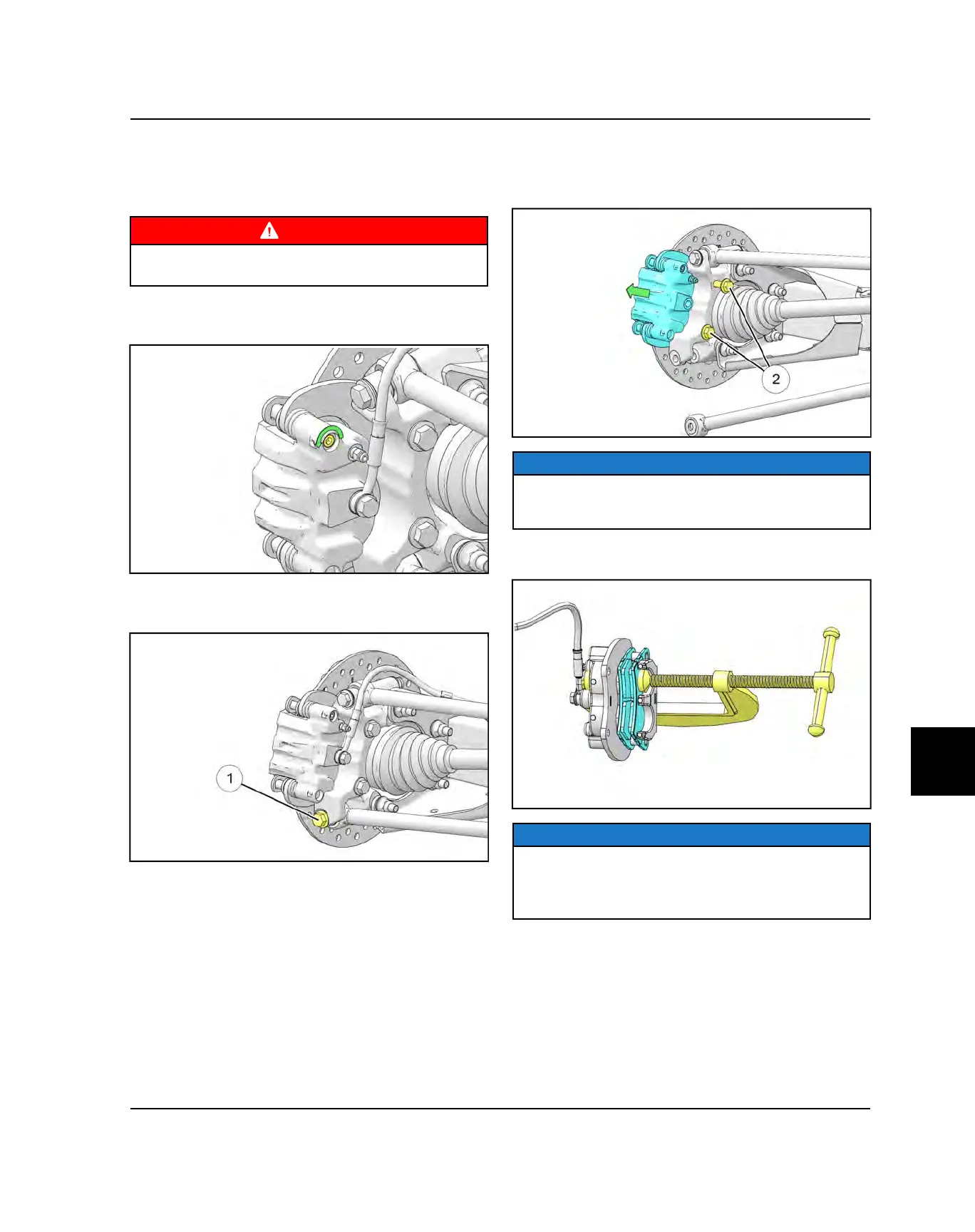

PAD REMOVAL
1. Elevate and support rear of vehicle.
WARNING
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur if machine tips or falls.
2. Remove the rear wheel.
3. Loosen pad adjuster screw 2-3 turns.
4. Remove the lower radius rod outer mounting bolt
q
,
nut and washer from the bearing carrier. Swing
radius rod down. Discard the nut.
5. Remove the two caliper mounting bolts
w
and lift
caliper off the brake disc.
NOTE
When removing caliper, be careful not to damage brake
line. Support caliper to avoid kinking or bending brake
line.
6. Push caliper piston into the caliper bore slowly using
a C-clamp or locking pliers with pads installed.
NOTE
Brake fluid will be forced through compensating port
into master cylinder fluid reservoir when piston is
pushed back into caliper. Remove excess fluid from
reservoir as required.
BRAKE SYSTEM
