9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.

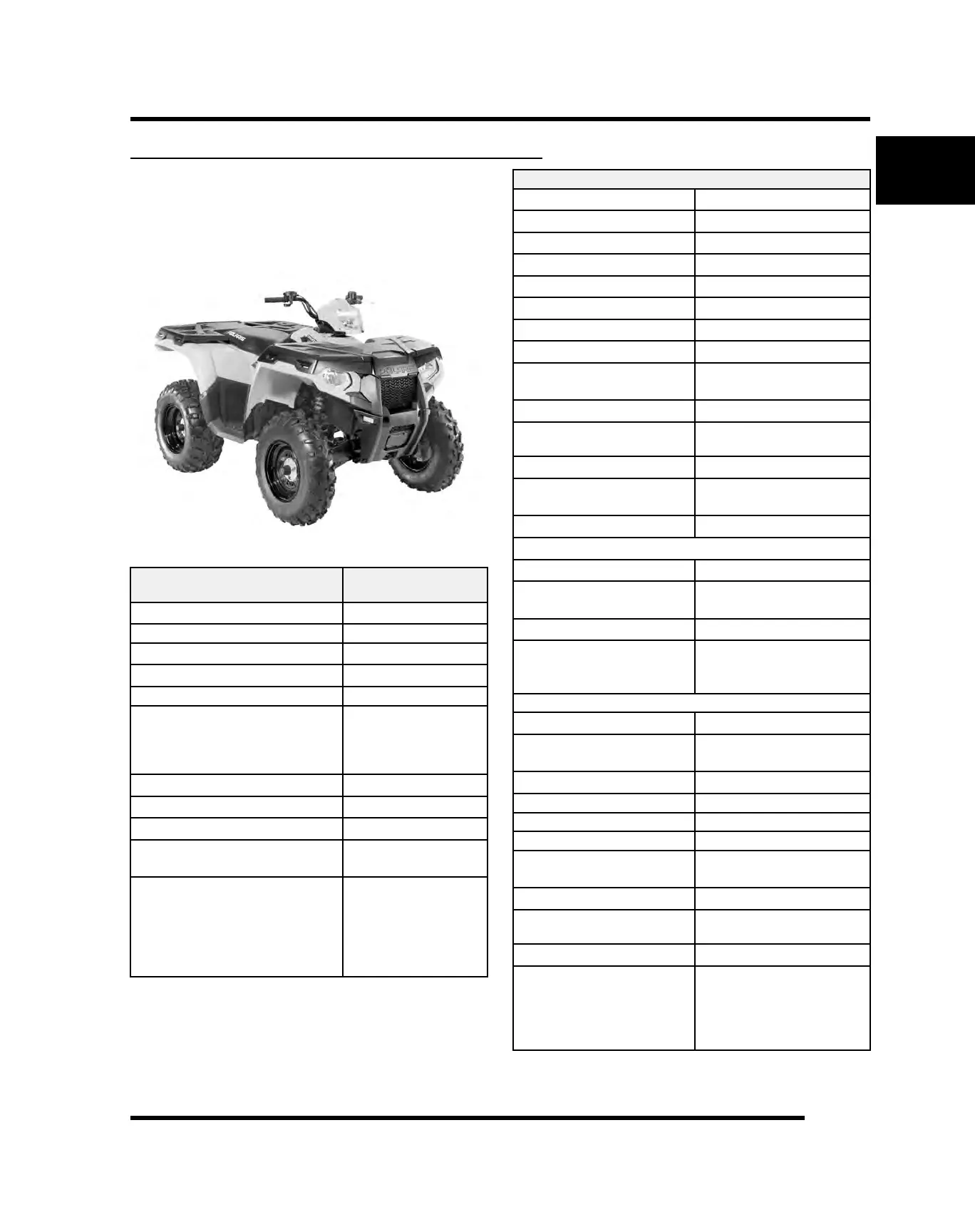

SPORTSMAN 800 EFI 4X4 SPECIFICATIONS
2012-2014 Sportsman 800 EFI
Model Numbers:
A12MH76AX, AZ, FF
A13MH76AX, AZ, FF
A14MH76AA, AH, FD
CATEGORY
DIMENSION /
CAPACITY
Length
83 in./210.8 cm
Width 48 in./121.9 cm
Height
48 in./121.9 cm
Seat Height
33.75 in./85.7 cm
Wheel Base 50.75 in./128.9 cm
Dry Weight
741 lbs./336 kg
(cast wheels)
751 lbs./341 kg
(steel wheels)
Front Rack Capacity 100 lbs./45.4 kg
Rear Rack Capacity 200 lbs./90.7 kg
Towing Capacity 1500 lbs./680 kg
Unbraked Trailer Towing
Capacity (EU)*
2127.5 lbs. / 965 kg
Hitch Tongue Capacity
150 lbs./68 kg
Combination of rear
rack weight and
tongue weight not to
exceed 200 lbs.
(91kg)
NOTE: *Data based on EU Directive: 76/432/EEC
ENGINE
Platform
Polaris Twin Cylinder
Engine Model Number
EH076OLE
Engine Displacement
760cc
Number of Cylinders
2
Bore & Stroke (mm)
80 x 76.5 mm
Compression Ratio
11:1
Compression Pressure 150-200 psi
Engine Idle Speed
1150 ± 100 RPM
Engine Max Operating
Rpm
6600 Rpm ± 200 Rpm
Cooling System / Capacity Liquid - 3.6 qt/ 3.4 ltr.
Overheat Warning
HOT on Instrument
Cluster
Lubrication
Pressurized Wet Sump
Oil Requirements /
Capacity
Polaris 2W-50 2 qt. / 1.9
liters
Exhaust System Single Pipe / Silencer
Fuel System
Fuel Pump 25L per hour at 39 PSI
Fuel Filter(s)
30 micron in Tank -
(unserviceable)
EFI System
Bosch MSE 1.1B
Fuel Capacity /
Requirement
4.13 gal US / 15.6 liters
87 Octane (minimum) or
89 Oxygenated
Electrical
Alternator Output (2012) 500 W @ 6000 RPM
Alternator Output (2013 -
2014)
500 W @ 3000 RPM
Lights: Pod
50 watts
Grill 2 x 50 watts
Brake 8.26 watts
Tail 26.9 watts
Worklights
(If equipped)
2 x 13 watts
Ignition Timing 13°BTDC @ 1200 RPM
Spark plug / Gap
RC7YC3/ .035 in. / 0.9
mm
Battery / Amp Hr Lead Acid / 30 Amp Hr
Circuit Breakers
Fan 20 amp / Harness 20
amp /
ECU 15 amp / Inst.
Cluster /
Voltage Regulator 6 amp
