IGNITION COIL
Operation Overview
The ignition coil is used to provide high voltage to fire the
spark plugs. When the ignition key is on, DC voltage is
present in the primary side of the ignition coil windings.
During engine rotation, an AC pulse is created within the
crankshaft position sensor for each passing tooth on the
flywheel. The two-tooth gap creates an “interrupt” input
signal, corresponding to specific crankshaft position. This
signal serves as a reference for the control of ignition
timing. The ECU then calculates the time interval
between the consecutive pulses, and determines when
to trigger the voltage spike that induces the voltage from
the primary to the secondary coil windings to fire the
spark plugs.
Ignition Coil / HT Lead Replacement
NOTE: Mark or note which ignition coil wire goes to
which cylinder and ignition coil post. The engine will
misfire if spark plug wires are installed incorrectly.
The spark plug wires are marked with PTO and MAG
from the factory and should be installed to the
corresponding cylinder and ignition coil post.

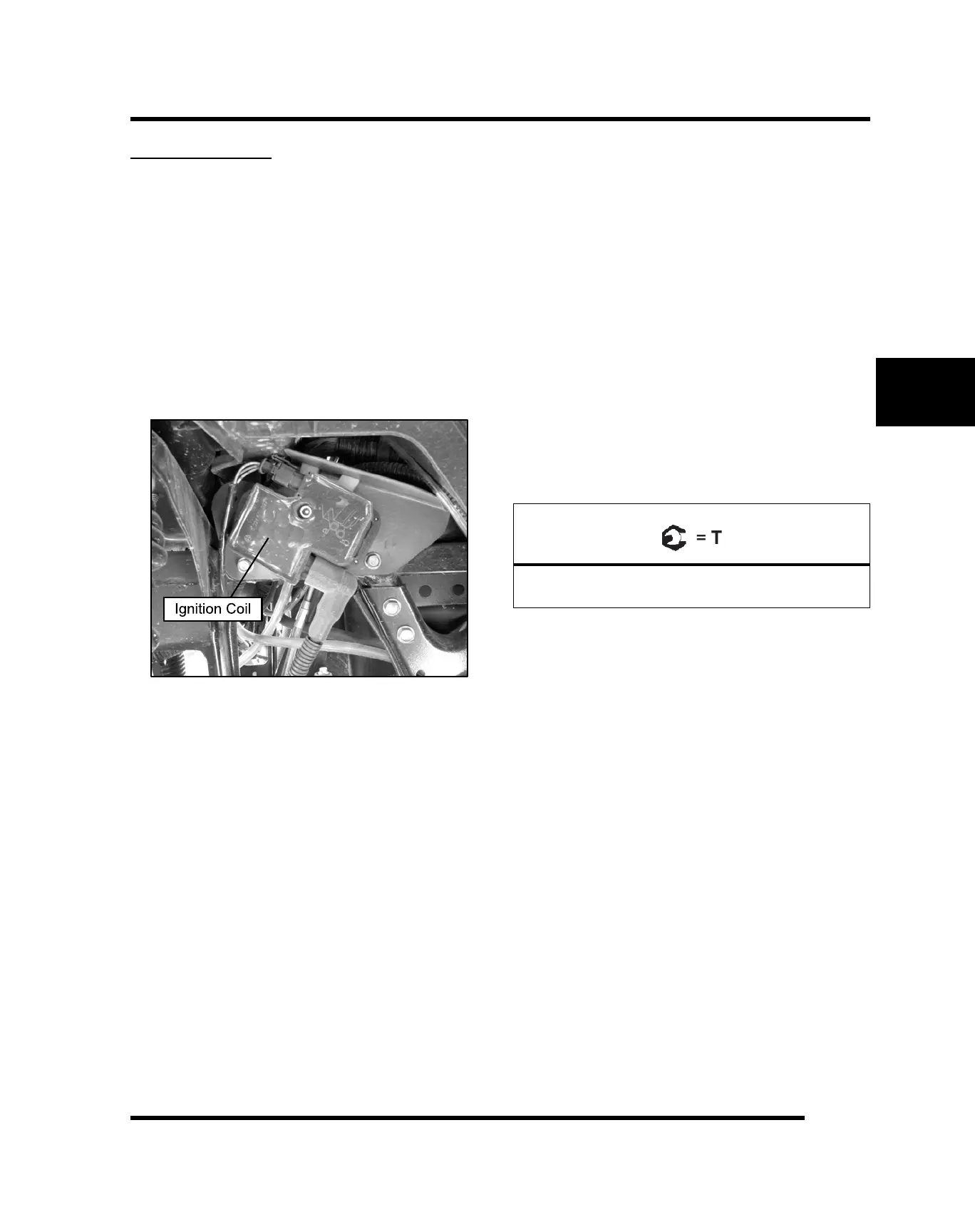

1. Access the ignition coil through the front left fender
area.
2. Disconnect the ignition coil harness and remove the
high tension leads from the coil.
3. Remove the fastener retaining the ignition coil and
remove it from the vehicle. If replacing the high
tension lead(s), remove the other end of the lead(s)
from the spark plug.
4. Install the new ignition coil and/or high tension lead
(s).
Ignition Coil Retaining Bolt:
75 in-lbs (8.5 Nm)
