6.8
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.
PVT SYSTEM SERVICE

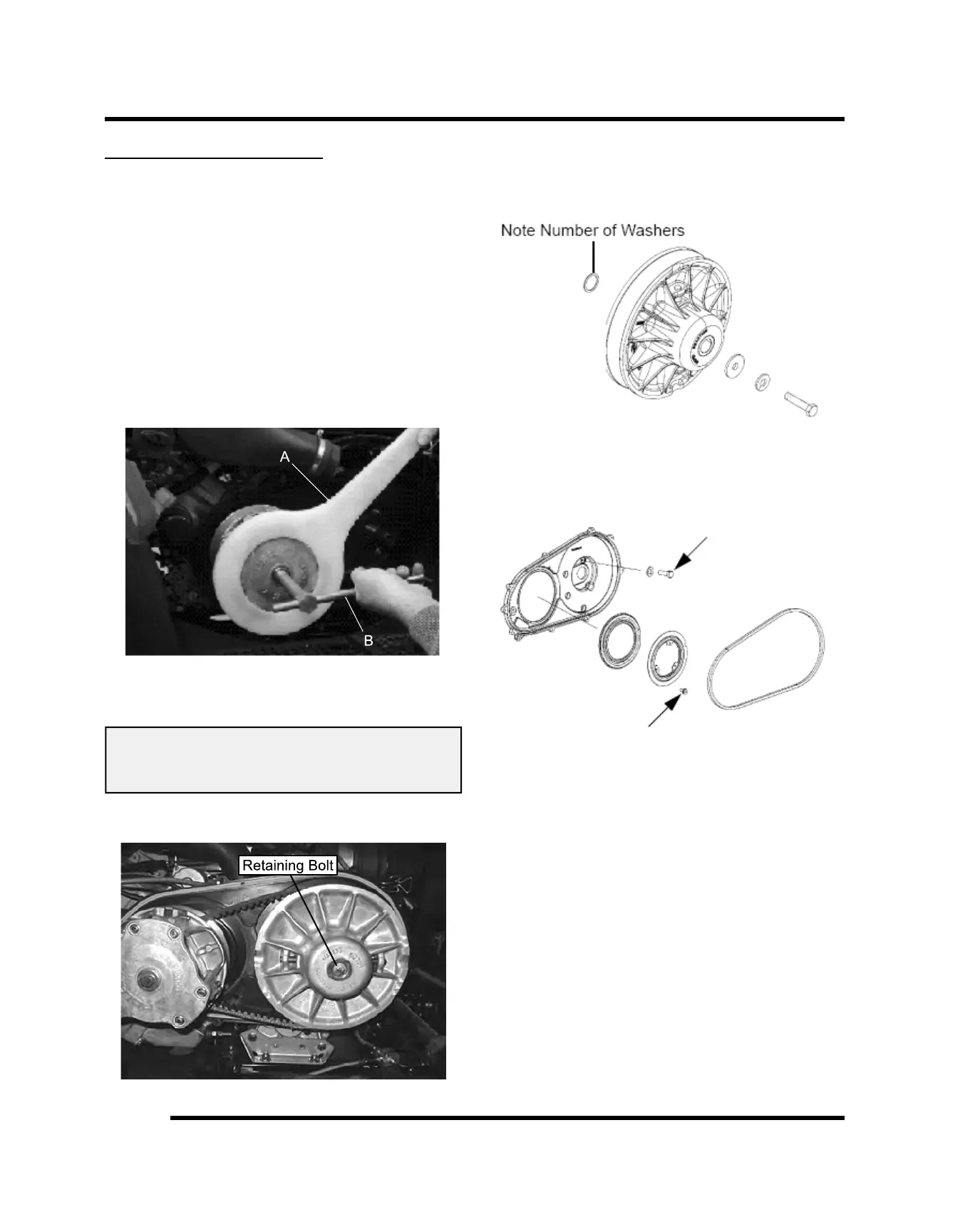

Disassembly
Some fasteners and procedures will vary. Refer to the
appropriate parts manual for proper fasteners and
fastener placement.
1. Remove seat.
2. Remove the LH storage box to gain access to PVT
outer cover (see Chapter 5 for removal).
3. Remove PVT air outlet duct hose.
4. Remove outer PVT cover screws.
5. Mark the drive belt direction of rotation and remove
drive belt. See “Drive Belt Removal”.
6. Install the Drive Clutch Holder (PN 9314177) (A).
7. Remove drive clutch retaining bolt and remove drive
clutch using the Drive Clutch Puller (PN 2870506)
(B).
Drive Clutch Puller (PN 2870506)
Drive Clutch Holder (PN 9314177)
8. Remove the driven clutch retaining bolt and driven
clutch.
9. Remove driven clutch alignment washer(s) from the
transmission input shaft.
10. Remove screws and retainer plate.
11. Remove inner cover retaining bolts at rear of cover.
12. Remove cover along with foam seal on back of cover
or shaft.
CLUTCHING
