VEHICLE INSPECTION

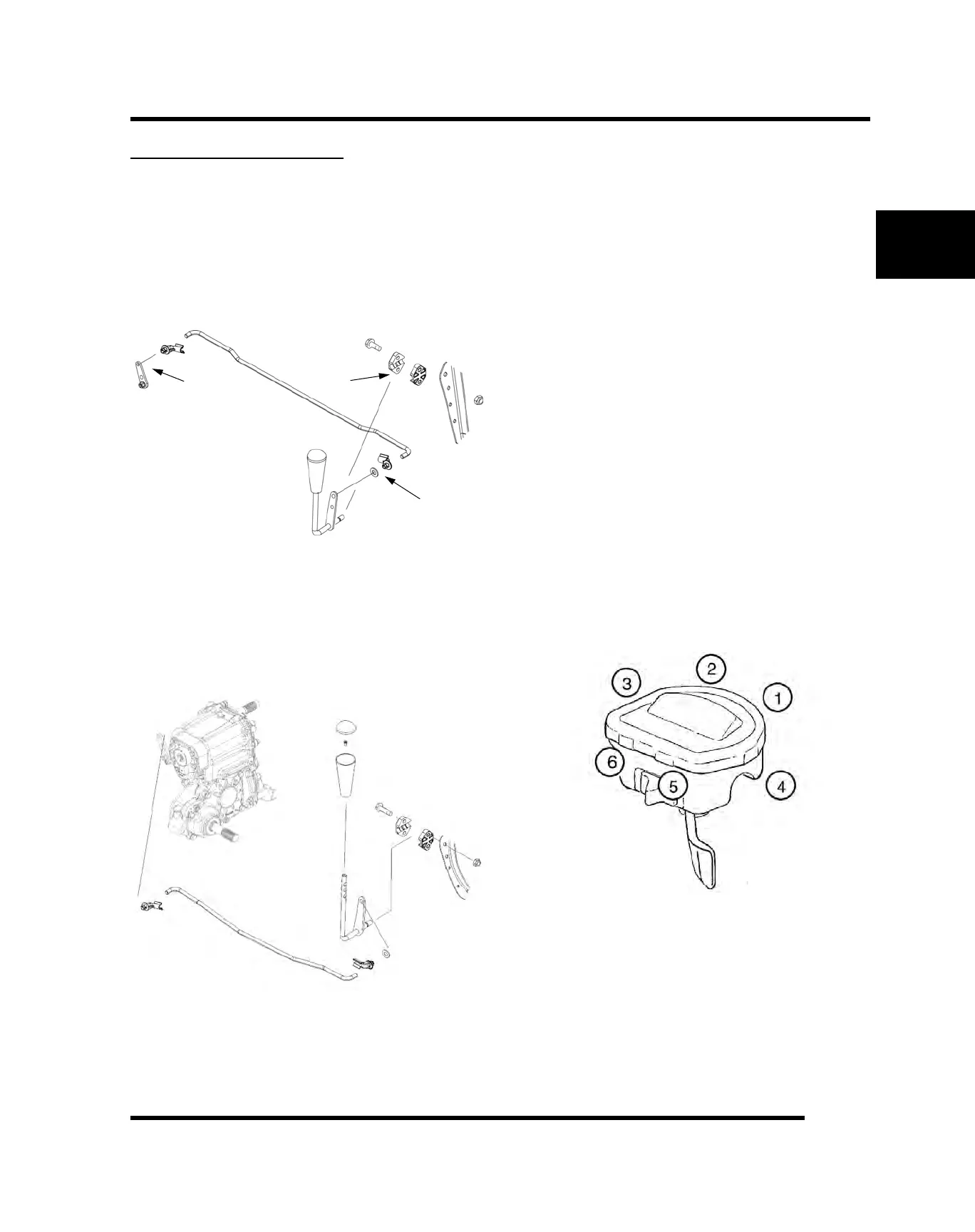

Shift Link Rod Inspection (4x4)
NOTE: Shift rod is preset at time of manufacturer.
1. Lubricate pivot points with a light aerosol lubricant or
grease if desired.
Shift Link Rod Inspection (6x6)
NOTE: Shift rod is preset at time of manufacturer.
1. Inspect shift link tie rod ends and replace if worn or
damaged. Lubricate pivot points with a light aerosol
lubricant or grease if desired.
Throttle Inspection
Check for smooth throttle opening and closing in all
handlebar positions. Throttle lever operation should be
smooth and lever must return freely without binding.
1. Place the gear selector in neutral.
2. Place shift selector in neutral and set parking brake.
3. Loosen lock nut on in-line cable adjuster (Ill. 1).
4. Turn handlebars from full right to full left. If idle speed
increases at any point in the turning range, inspect
throttle cable routing and condition. Adjust cable
tension as needed until lock-to-lock turning can be
accomplished with no rise in engine rpm.
5. Replace the throttle cable if worn, kinked, or
damaged.
To Remove TRS Cover:
6. Use a medium flat blade screwdriver and insert
blade into the pocket of the cover starting on the #1
position.
7. Twist screwdriver slightly while lifting on the cover to
release snap.
8. Repeat procedure at the other five locations as
shown.
NOTE: Do not attempt to remove cover until all
latch points are released.
