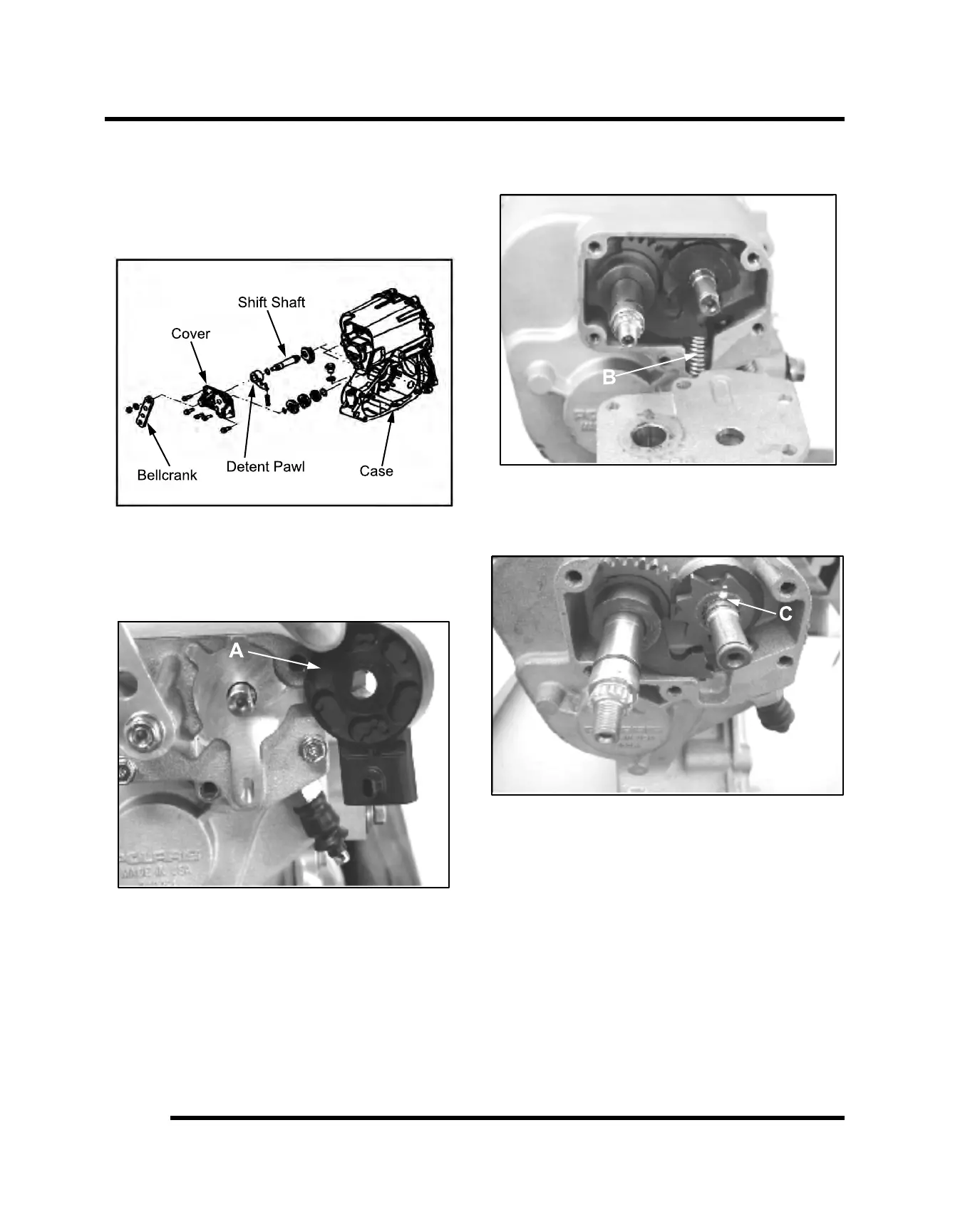

Disassembly
NOTE: Some transmission illustrations are depicted
with Park Lock. Park Lock has been removed.
1. Place the bellcrank in neutral position.
2. Remove the nut, and washer that secure the bell
crank. Remove the bellcrank.
3. Remove the e-clip and then remove the transmission
switch (A).
4. Remove the five bolts that secure the cover. Remove
the detent spring (B).
5. Verify transmission is in neutral and mark the detent
gear (C) with a white pen. Remove the detent gear
from the case.
NOTE: It may be helpful to place a mark just
above the keyed spline. Note the raised edge on
the detent gear for reassembly.
TRANSMISSION
To Next Page
