Quectel LTE-A Series User Manual

LTE-A Module Series
EG060V-EA Hardware Design
EG060V-EA_Hardware_Design 37 / 82
3.8. Reset the Module
The module can be reset by driving RESET_N LOW for 250–600 ms.
Table 8: Pin Definition of RESET_N
The recommended circuit is similar to the PWRKEY control circuit. An open collector driver or button can
be used to control the RESET_N.
Reset pulse
RESET_N
4.7K
47K
250–600 ms

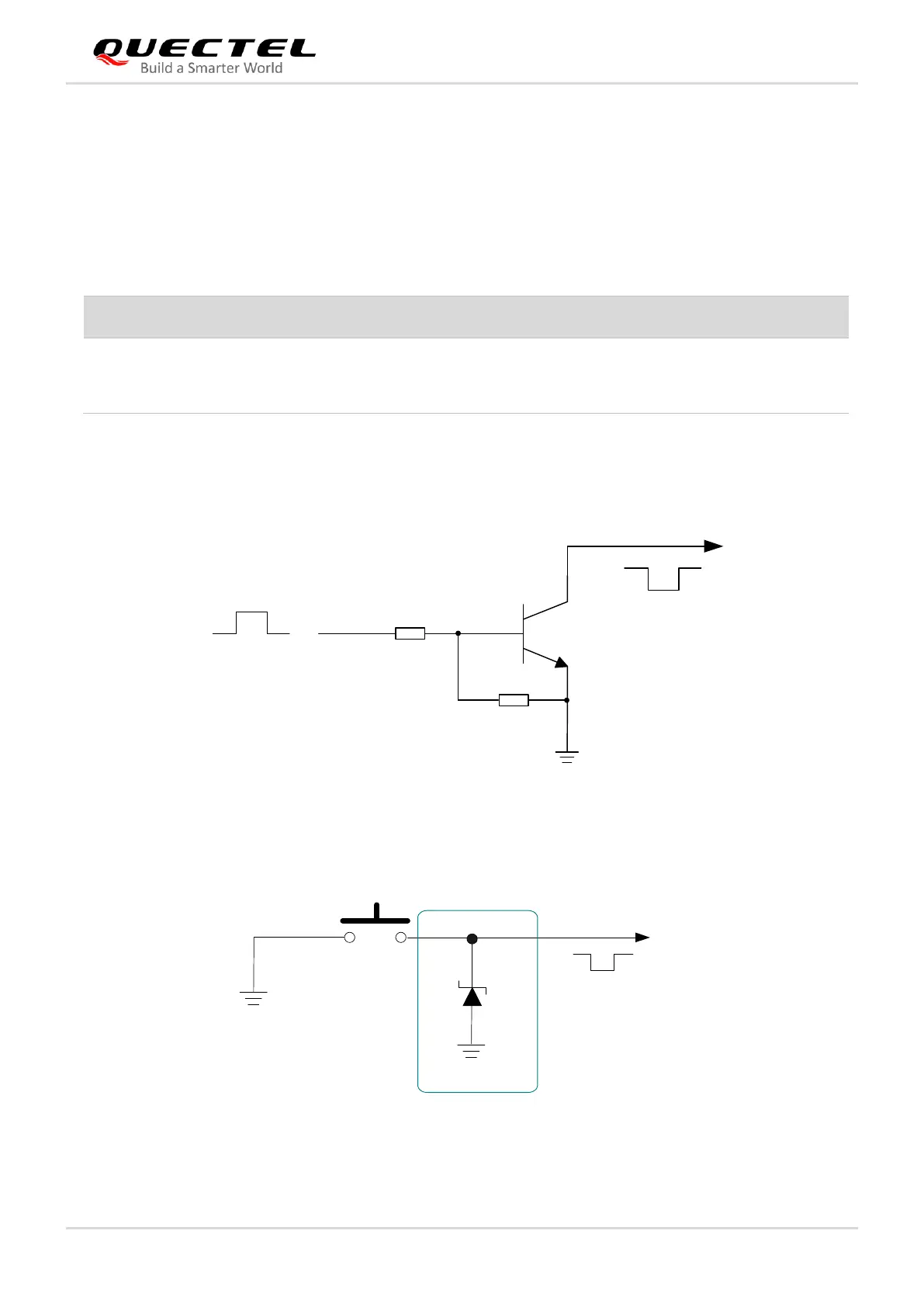

Figure 15: Resetting the Module with Driving Circuit
RESET_N
S2
Close to S2
TVS
Figure 16: Resetting the Module with Button
Pin Name
Pin No.
Description
DC Characteristics
Comment
RESET_N
1
Reset the module
V
IH
max = 2.0 V
V
IH
min = 1.3 V
V
IL
max = 0.5 V
