Quectel LTE-A Series User Manual

LTE-A Module Series
EG060V-EA Hardware Design
EG060V-EA_Hardware_Design 48 / 82
Table 18: Working State of Network Mode/Status Indication Pins
Below is a reference design of the network indicator.
4.7K
47K
VBAT
2.2K
Module
Network
Indicator

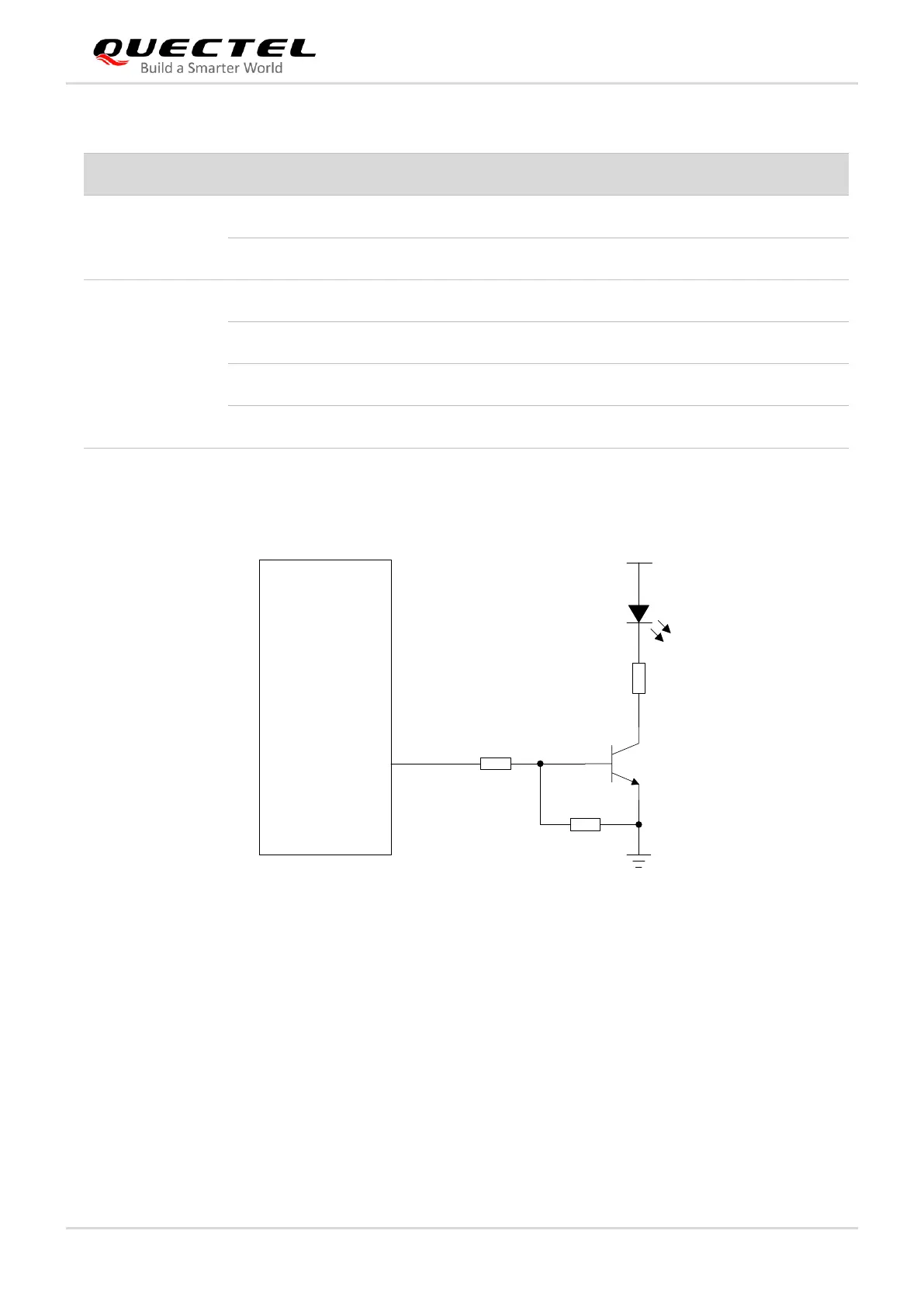

Figure 25: Reference Design of Network Indicator
3.15. Module Status Indication Interface
The STATUS pin is used to indicate the module’s on or off status; It outputs high level when the module is
turned on.
Pin Name
Status
Description
NET_MODE
Always High
Registered on LTE network
Always Low
Other circumstances
NET_STATUS
LEDs flicker slowly (200 ms High / 1800 ms Low)
Network searching
LEDs flicker slowly (1800 ms High / 200 ms Low)
Idle
LEDs flicker quickly (125 ms High / 125 ms Low)
Data transfer is ongoing
Always High
Voice calling
