LTE-A Module Series
EG060V-EA Hardware Design
EG060V-EA_Hardware_Design 74 / 82
6.2. Recommended Footprint

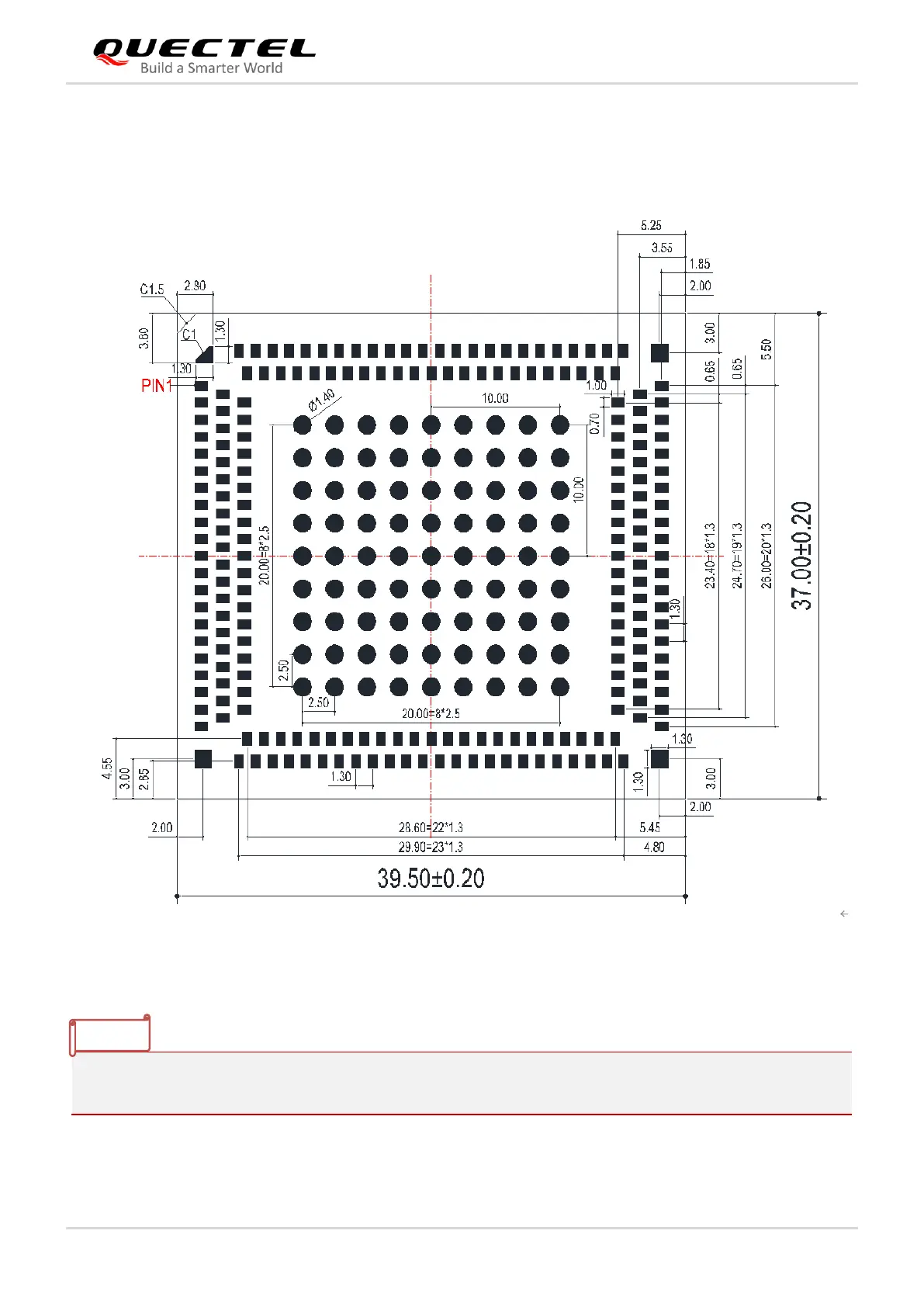

Figure 43: Recommended Footprint (Top View)
For easy maintenance of the module, keep about 3 mm between the module and other components on
the motherboard.
