Quectel LTE-A Series User Manual

LTE-A Module Series
EG060V-EA Hardware Design
EG060V-EA_Hardware_Design 46 / 82
short frame synchronization format with 2048 kHz PCM_CLK and 8 kHz PCM_SYNC. Please refer to
AT+QDAI command in document [1] for details.

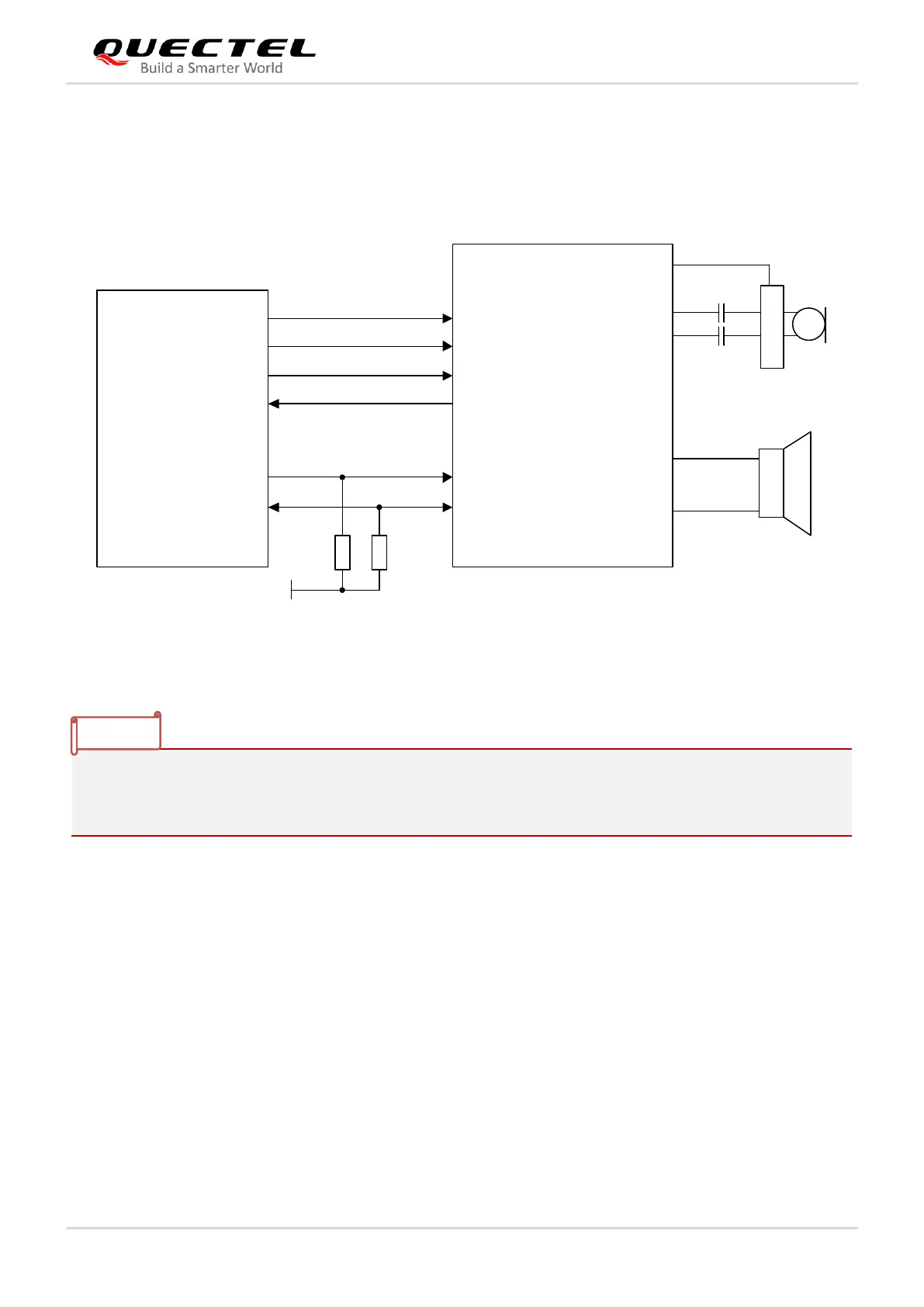

The following figure shows a reference design of PCM interface with an external codec IC.
PCM_DIN
PCM_DOUT
PCM_SYNC
PCM_CLK
I2C_SCL
I2C_SDA
Module
1.8 V
4.7K 4.7K
BCLK
LRCK
DAC
ADC
SCL
SDA
BIAS
MICBIAS
INP
INN
LOUTP
LOUTN
Codec
Figure 24: Reference Design of PCM Interface with Audio Codec
1. It is recommended to reserve an RC (R = 22 Ω, C = 22 pF) circuit on the PCM lines, especially for
PCM_CLK.
2. EG060V-EA works as a master device pertaining to I2C interface.
3.13. ADC Interfaces
The module provides two Analog-to-Digital Converters (ADC) interfaces. AT+QADC=0 command and
AT+QADC=1 command can be used respectively to read the voltage value on ADC0 pin and ADC1 pin.
For more details about these AT+QADC commands, please refer to document [1].
In order to improve the accuracy of reading, the trace of ADC should be surrounded by ground.
NOTES
