The following table describes the pin definition of STATUS.
Table 19: Pin Definition of STATUS
Below is a reference design of the pin.
4.7K
47K
VBAT
2.2K
Module
STATUS

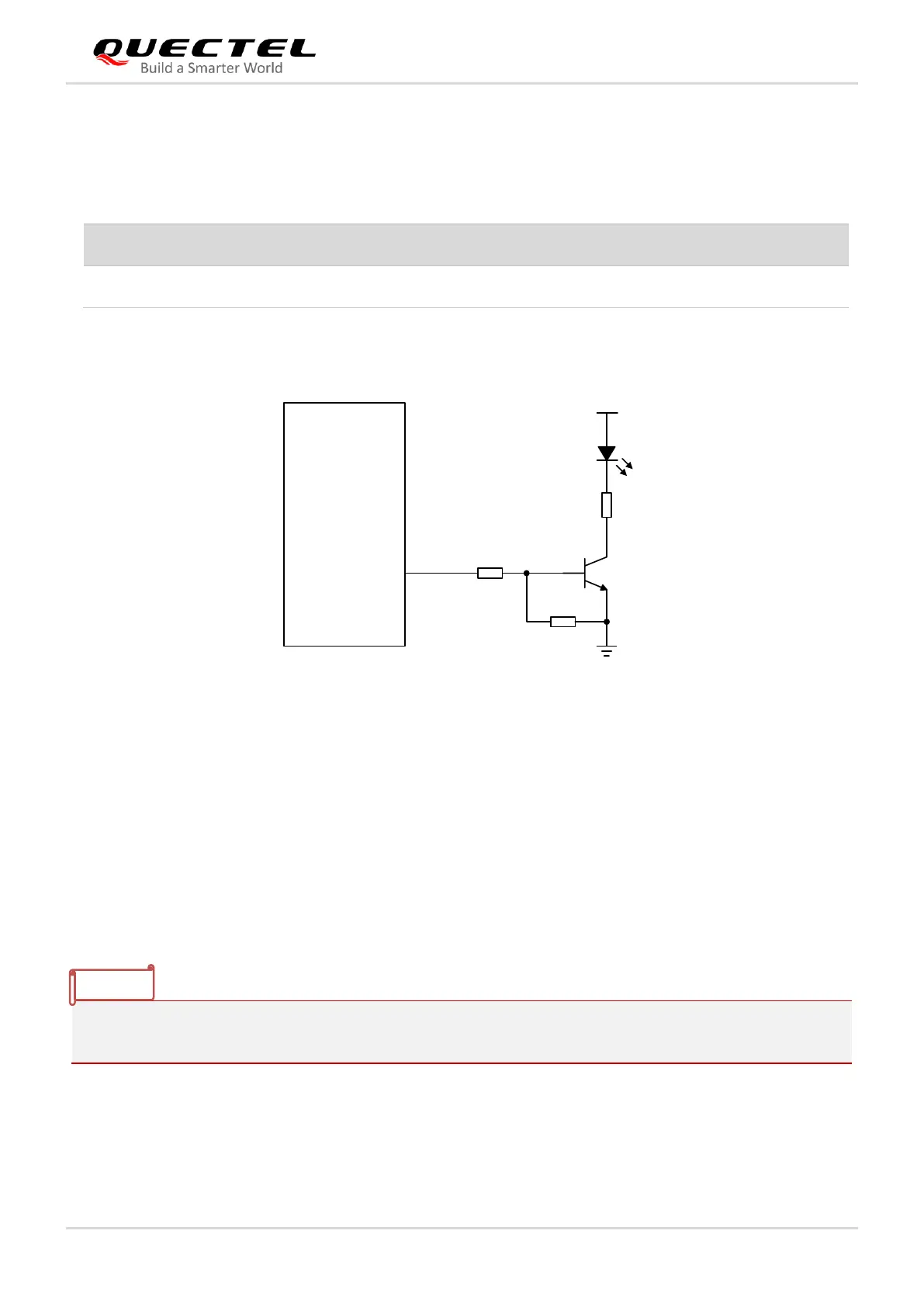

Figure 26: Reference Design of STATUS
3.16. RI Behaviors
The AT+QCFG="risignaltype","physical" command can be used to configure RI behavior.
Regardless of from which port a URC is output, it triggers the behavior of the RI pin.
The URC can be output from UART port, USB AT port or USB modem port depending on the parameters
of AT+QURCCFG command. The default port is USB AT port.
Pin Name
Pin No.
I/O
Description
Comment
STATUS
171
DO
Indicate the module’s operation status
1.8 V power domain
