Raisecom ISCOM2600G (A) Series User Manual

Raisecom
ISCOM2600G (A) Series Product Description
3 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
18

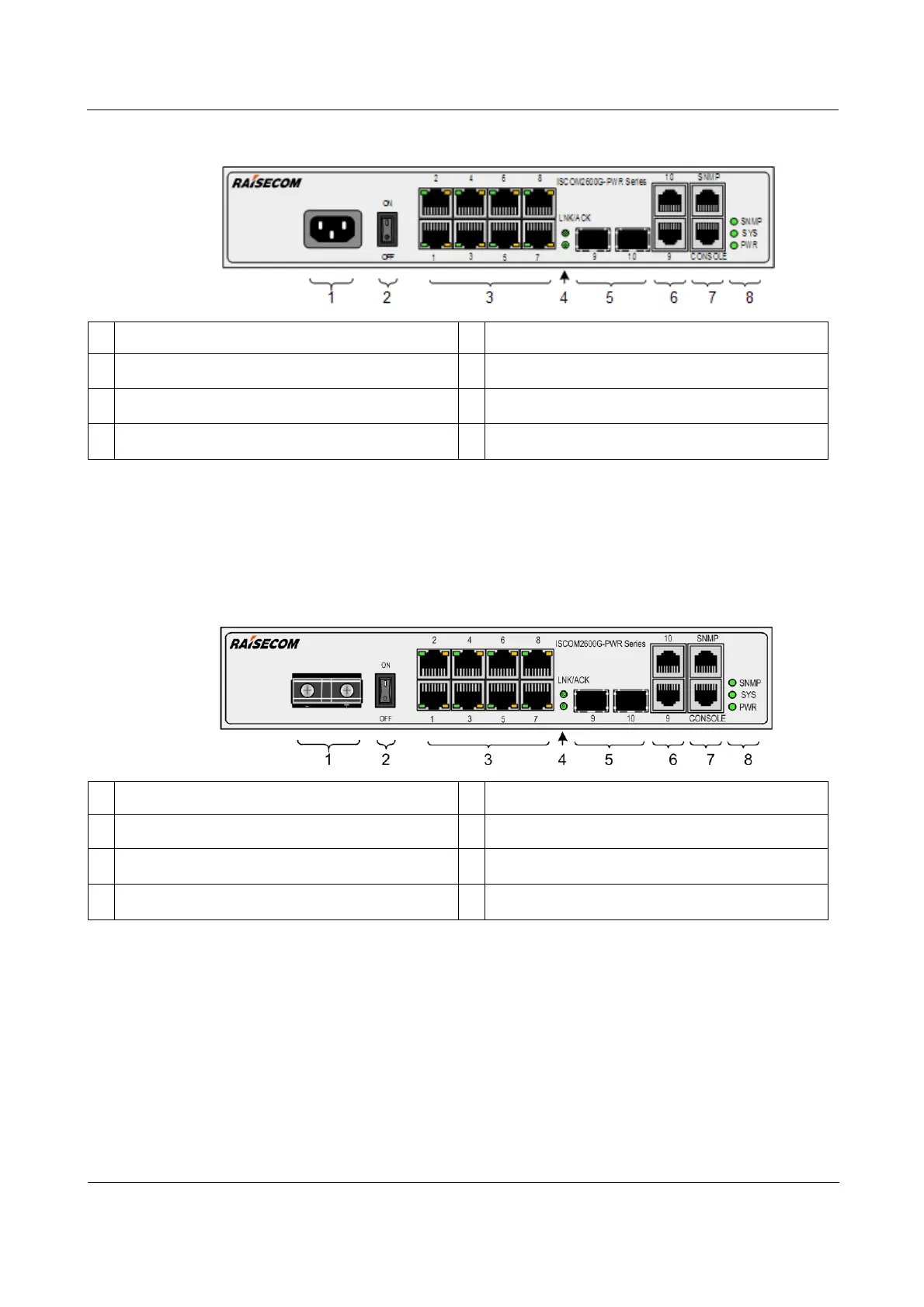

Figure 3-3 Front panel of ISCOM2608G-2GE-PWR-AC
1
Power interface
2
Power switch
3
Service interfaces (1–8) and LEDs
4
Uplink interface LEDs
5
Service uplink SFP optical interfaces (9–10)
6
Service uplink GE interfaces (9–10)
7
SNMP interface and Console interface
8
PWR, SYS, and SNMP LEDs
ISCOM2608G-2GE-PWR-DC
Figure 3-4 shows the front panel of the ISCOM2608G-2GE-PWR-DC.
Figure 3-4 Front panel of ISCOM2608G-2GE-PWR-DC
1
Power interface
2
Power switch
3
Service interfaces (1–8) and LEDs
4
Uplink interface LEDs
5
Service uplink SFP optical interfaces (9–10)
6
Service uplink GE interfaces (9–10)
7
SNMP interface and Console interface
8
PWR, SYS, and SNMP LEDs
ISCOM2624G-4C-PWR-AC/DC
Figure 3-5 shows the front panel of the ISCOM2624G-4C-PWR-AC/DC.
