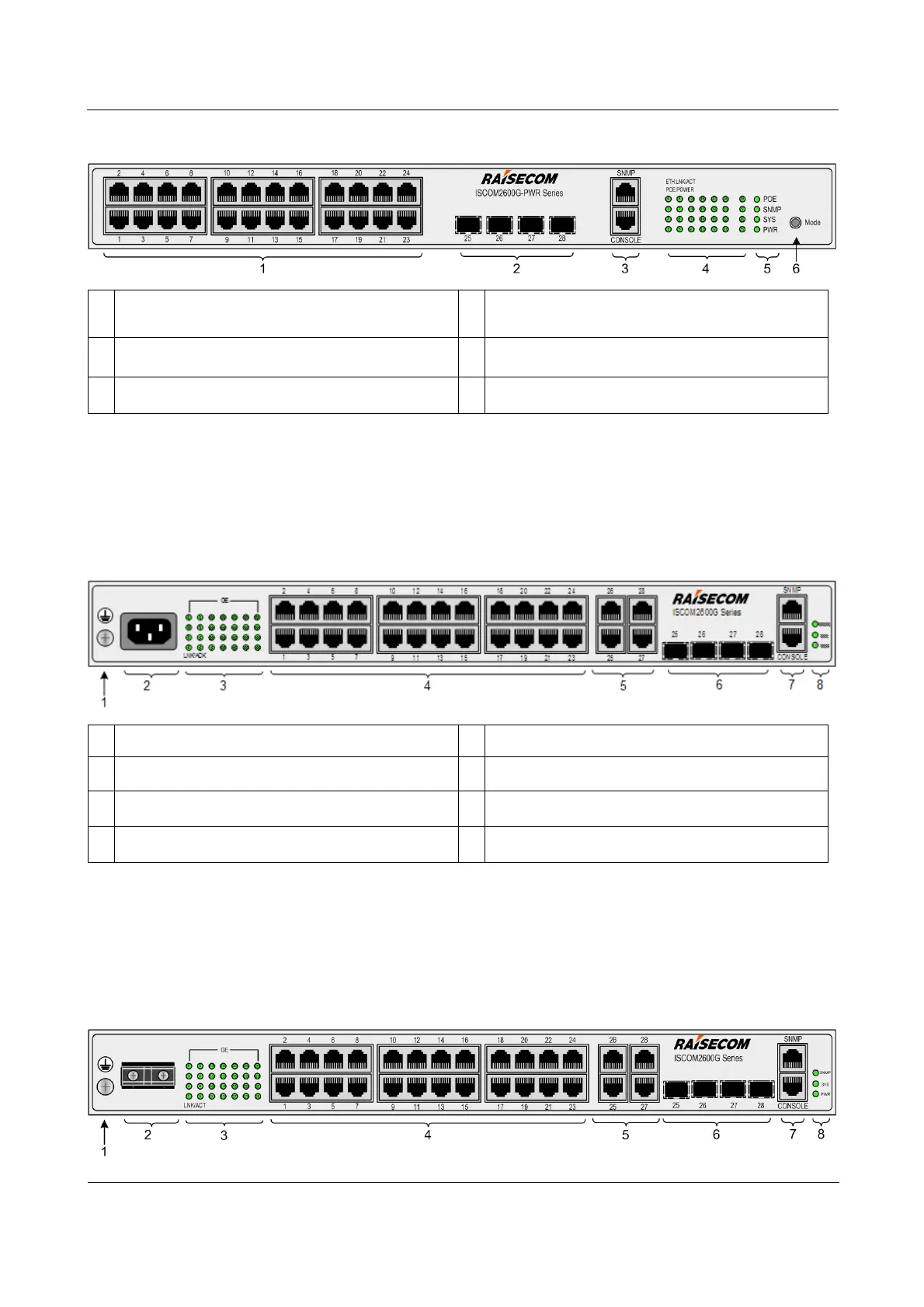

Figure 3-5 Front panel of ISCOM2624G-4C-PWR-AC/DC
1
Service downlink interfaces (1–24)
2
Service uplink SFP optical interfaces (25–28)
3
SNMP interface and Console interface
4
Interface LEDs
5
POE, SNMP, SYS, and PWR LEDs
6
Mode button (PoE mode switching)
ISCOM2624G-4GE-AC
Figure 3-6 shows the front panel of the ISCOM2624G-4GE-AC.
Figure 3-6 Front panel of ISCOM2624G-4GE-AC
1
Ground terminal
2
Power interface
3
Service interfaces (1–28) LEDs
4
Service downlink interfaces (1–24)
5
Service uplink GE interfaces (25–28)
6
Service uplink SFP optical interfaces (25–28)
7
SNMP interface and Console interface
8
PWR, SYS, and SNMP LEDs
ISCOM2624G-4GE-DC
Figure 3-7 shows the front panel of the ISCOM2624G-4GE-DC.
Figure 3-7 Front panel of ISCOM2624G-4GE-DC
