Raisecom ISCOM2600G (A) Series User Manual

Raisecom
ISCOM2600G (A) Series Product Description
6 Appendix
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
75
PIN
PIN definition
Switch (RJ45)
Console (DB9)
PIN 6
TxD
DSR
PIN 7
NC
RTS
PIN 8
NC
CTS
PIN 9
–
RI

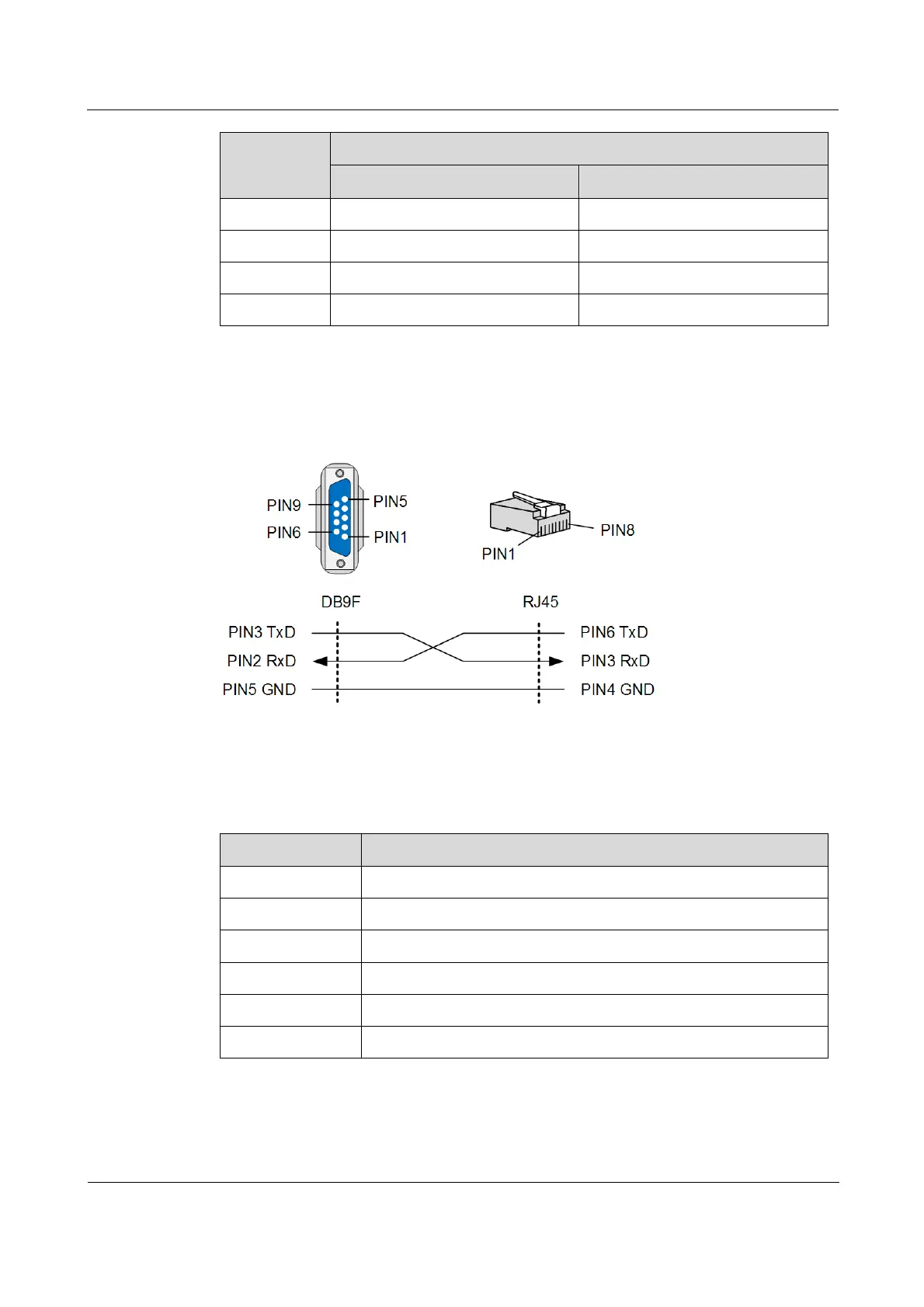

Figure 6-12 shows wiring between the DB9 female connector and the RJ45 Console interface
on the ISCOM2600G series switch.
Figure 6-12 Wiring between DB9 female connector and RJ45 Console interface
Technical specifications
Table 6-11 lists technical specifications of the RJ45 Console cable.
Table 6-11 Technical specifications of RJ45 Console cable
Parameter
Description
Name
CBL-RS232-DB9F/RJ45-2m
Color
White
Model
Cat 3 UTP cable
Connector
RJ45 connector and DB9 female connector
Number of cores
8
Length
2 m
