Raisecom ISCOM2600G (A) Series User Manual

Raisecom
ISCOM2600G (A) Series Product Description
3 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
20
1
Ground terminal
2
Power interface
3
Service interfaces (1–28) LEDs
4
Service downlink interfaces (1–24)
5
Service uplink GE interfaces (25–28)
6
Service uplink SFP optical interfaces (25–28)
7
SNMP interface and Console interface
8
PWR, SYS, and SNMP LEDs
ISCOM2624G-4GE-PWR-AC/DC

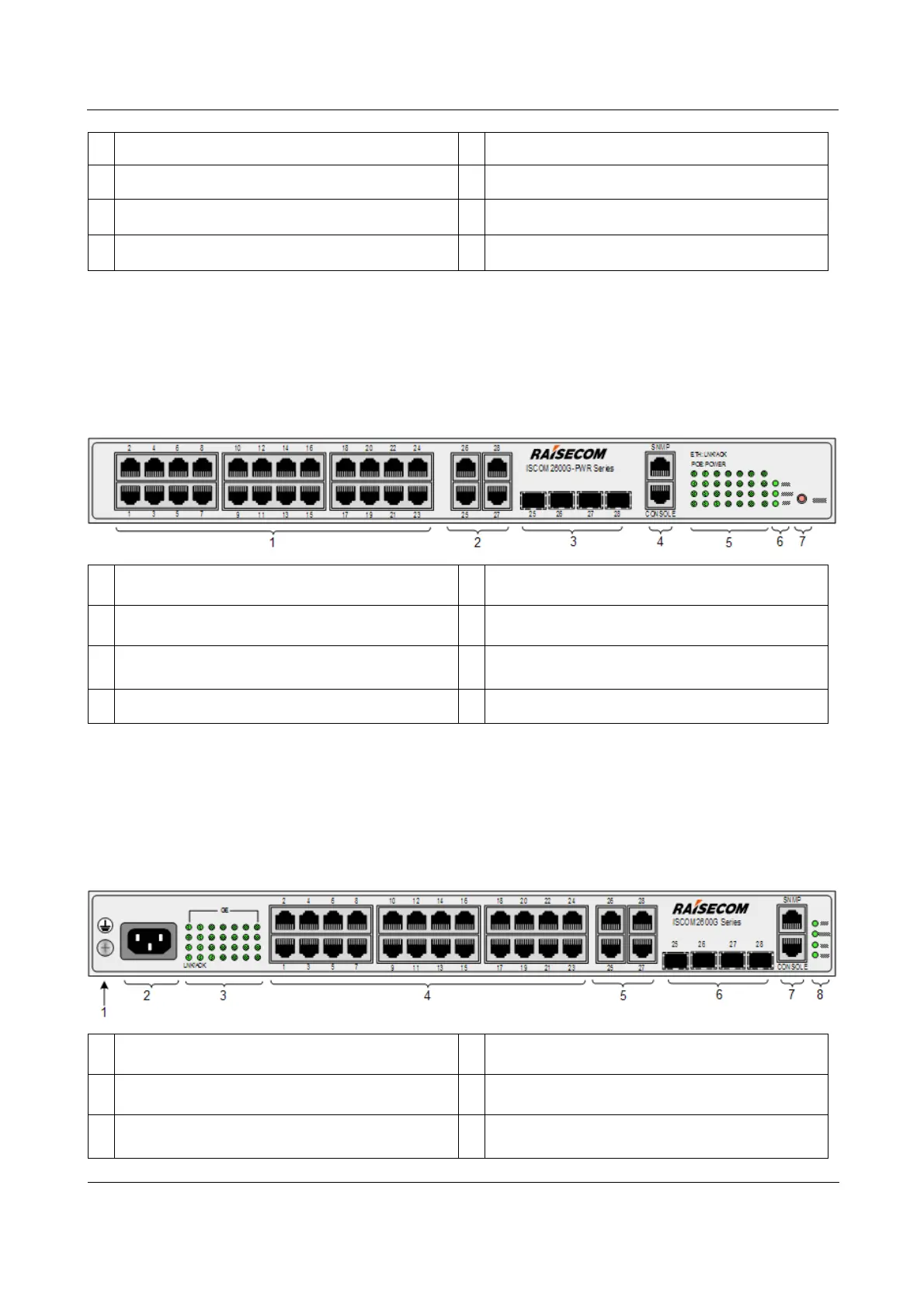

Figure 3-8 shows the front panel of the ISCOM2624G-4GE-PWR-AC/DC.
Figure 3-8 Front panel of ISCOM2624G-4GE-PWR-AC/DC
1
Service downlink interfaces (1–24)
2
Service uplink GE interfaces (25–28)
3
Service uplink SFP optical interfaces (25–28)
4
SNMP interface and Console interface
5
Interface LEDs
6
POE, PWR, SYS, and SNMP LEDs
7
Mode button
ISCOM2624G-4GE-RPS-AC
Figure 3-9 shows the front panel of the ISCOM2624G-4GE-RPS-AC.
Figure 3-9 Front panel of the ISCOM2624G-4GE-RPS-AC
1
Ground terminal
2
Power interface
3
Service interfaces (1–28) LEDs
4
Service downlink interfaces (1–24)
5
Service uplink GE interfaces (25–28)
6
Service uplink SFP optical interfaces (25–28)
