ISCOM2600G (A) Series Product Description
6 Appendix
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
74
Parameter
Description
Inner conductor wire gauge
18 AWG
Length
1.5 m
6.1.6 RJ45 Console cable
Introduction
With a Console cable, you can log in to the ISCOM2600G series switch through the Console
interface, and then debug and maintain it through a PC.
The connectors at the two ends of the Console cable are as below:

RJ45 connector: connected to the Console interface on the ISCOM2600G series switch

DB9 female connector: connected to the Console interface on the PC
Appearance

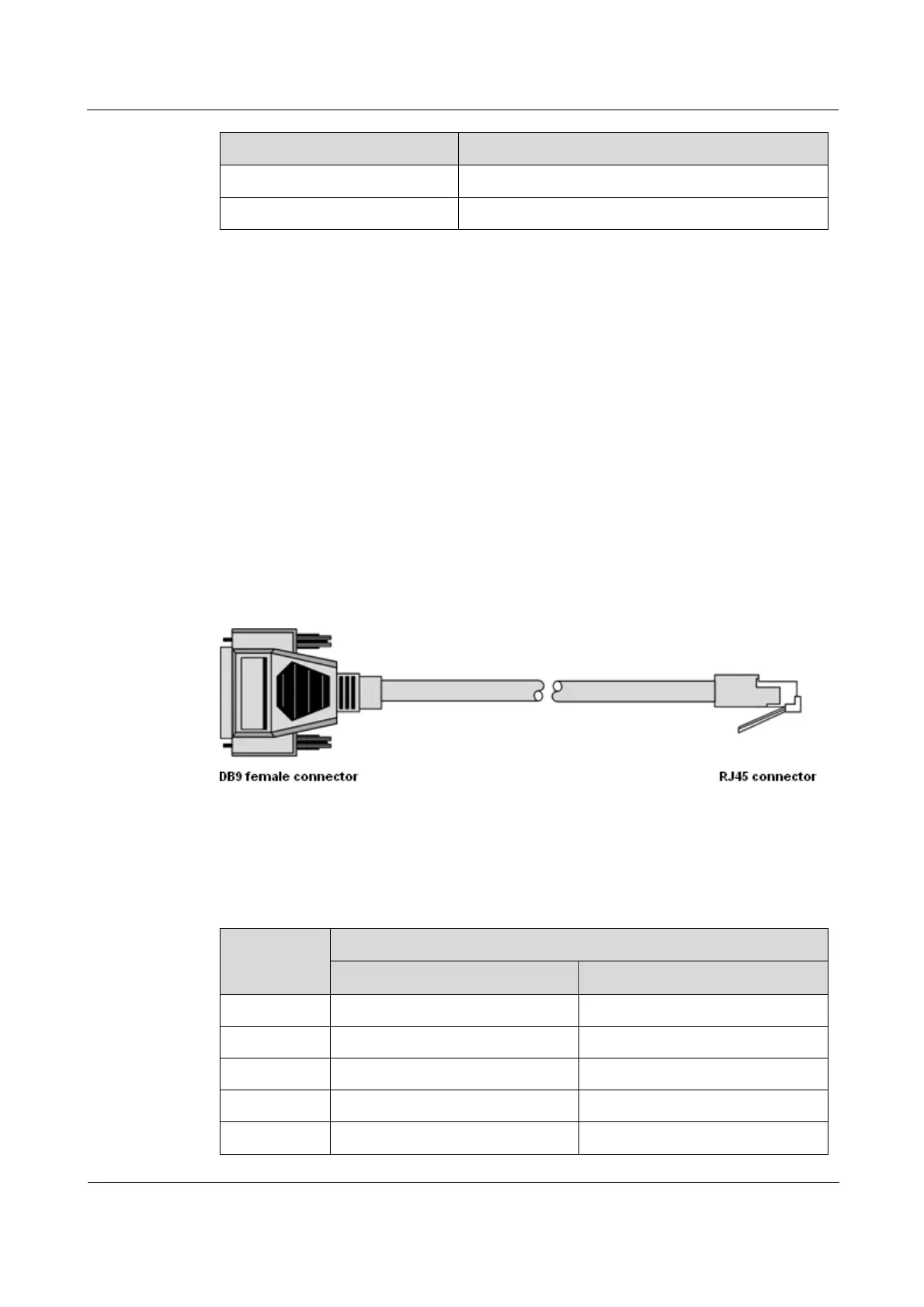

Figure 6-11 shows the RJ45 Console cable.
Figure 6-11 RJ45 Console cable
Wiring
Table 6-10 lists wiring of the RJ45 Console interface.
Table 6-10 Wiring of RJ45 Console interface
PIN
PIN definition
Switch (RJ45)
Console (DB9)
PIN 1
NC
DCD
PIN 2
NC
RxD
PIN 3
RxD
TxD
PIN 4
GND
DTR
PIN 5
GND
GND
