Raisecom ISCOM2600G (A) Series User Manual

Raisecom
ISCOM2600G (A) Series Product Description
6 Appendix
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
66
Local connector
Remote connector
Fiber
FC/PC
2 mm SMF
2 mm MMF
SC/PC
2 mm SMF
2 mm MMF
Choose the fiber connector properly as required on site. Otherwise, extra fiber loss
will occur, service transmission will be deteriorated, and even the fiber connector and
interface may be damaged.
Appearance

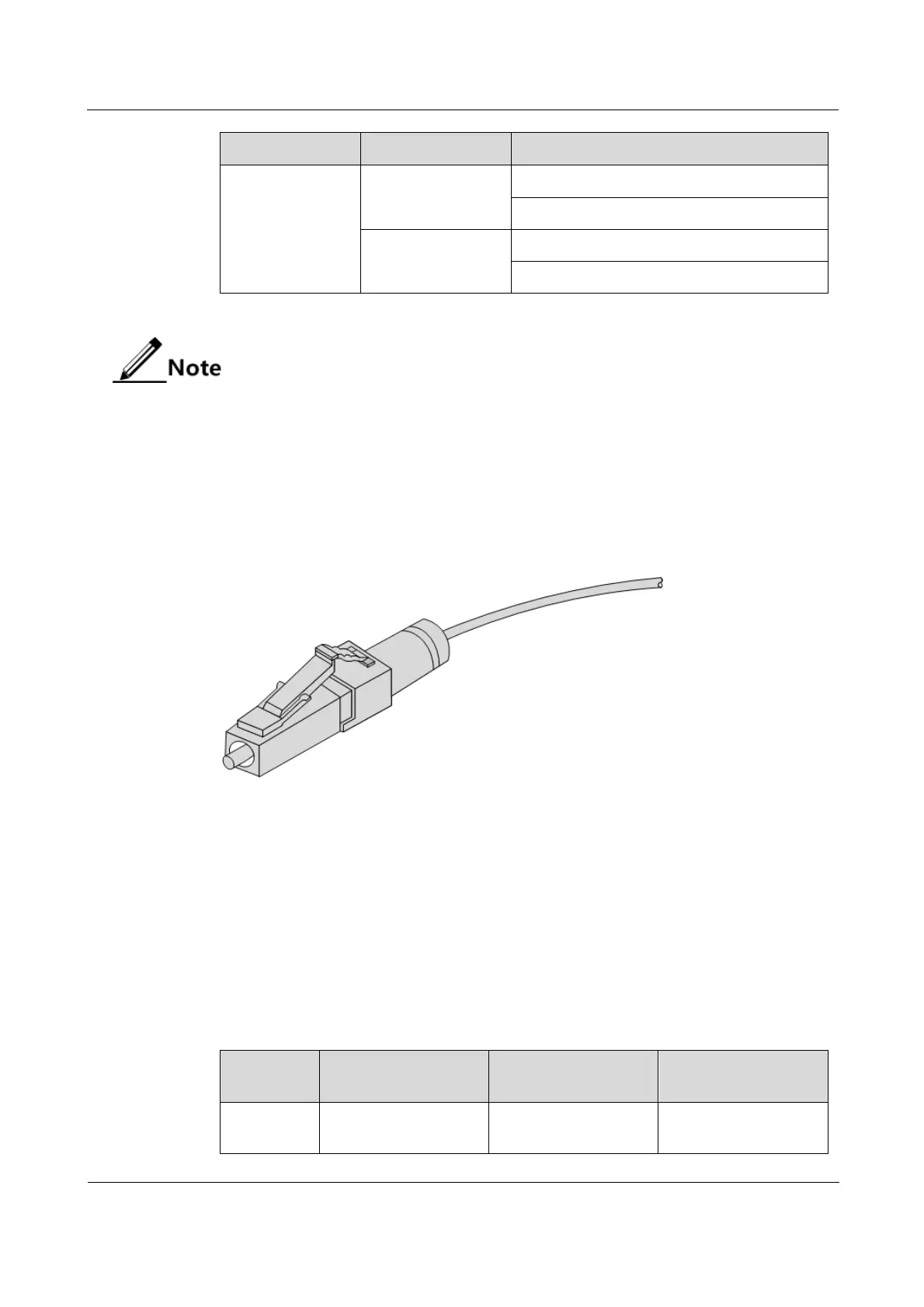

Figure 6-1 shows the LC/PC fiber connector.
Figure 6-1 LC/PC fiber connector
When connecting or removing the LC/PC optical connector, align the connector with the
optical interface, and do not rotate the fiber. Operate the fiber as below:

Align the head of the fiber jumper with the optical interface and insert the optical fiber
into the interface gently.

To remove the fiber, press the latch on the connector, press the fiber head inwards
slightly, and pull the fiber out.
Wiring
Table 6-2 lists wiring of the fiber.
Table 6-2 Wiring of fiber
Wiring
Optical interface on
local device
Direction of optical
signals
Optical interface on
peer device
Single-fiber
wiring
Optical interface
<->
Optical interface
