ISCOM5508-GP (A) Hardware Description
2 1BComponents
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
11
LED Status Description
1000M
(RJ45 electrical
interface
integrated LED)
Yellow Electrical interface working rate LED

Yellow: the electrical interface is working at 1000 Mbit/s.

Off: the electrical interface is working at 100 Mbit/s.
LINK
1/2/3/4
Green
PON interface working LED

Green: the PON interface is connected properly and there
is a registered ONU working on the interface.

Off: the PON interface is disconnected or there is no
registered ONU working on the interface.
2.2.5 Technical specifications
Table 2-8 lists technical specifications of the GPSC card.
Table 2-8 Technical specifications of the GPSC card
Item Description
Dimensions 259.3 mm (Width) × 243.4 mm (Depth) × 19.8 mm (Height)
Weight 0.64 kg
Power consumption < 34.5 W
2.3 GP4A subcard
2.3.1 Introduction
The GP4A subcard is a PON interface subcard of the ISCOM5508-GP, providing 4 GPON
SFP interfaces.
2.3.2 Panel and slots
The GP4A subcard can be inserted into slot 3 of the ISCOM5508-GP.

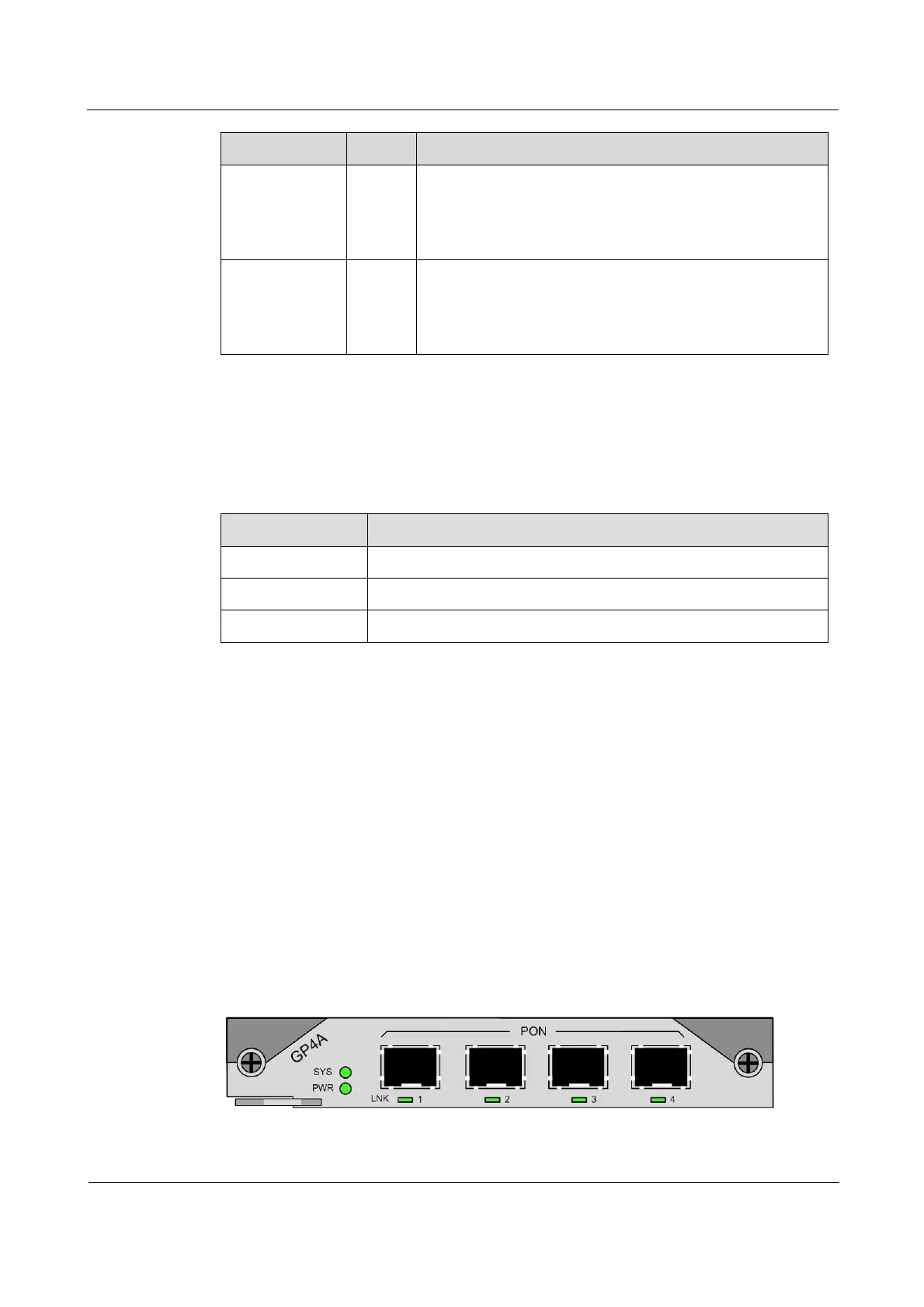

Figure 2-9 shows the panel of the GP4A subcard.
Figure 2-9 Panel of the GP4A subcard
