Raisecom
ISCOM5508-GP (A) Hardware Description
3 2BFiber and cables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
25

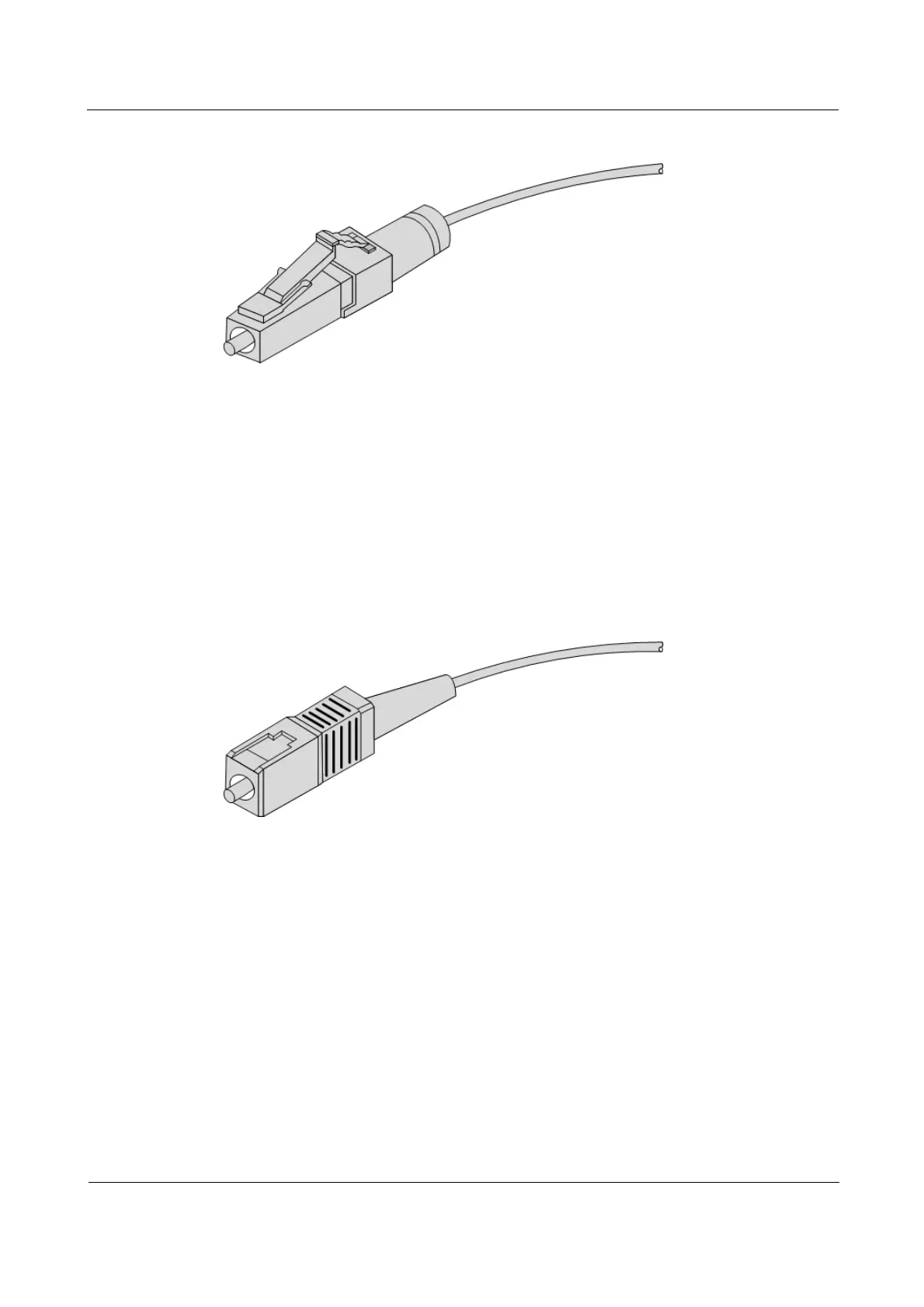

Figure 3-1 LC/PC fiber connector
When connecting or removing the LC/PC fiber connector, align the connector with the optical
interface, and do not rotate the fiber. Operate as below:
To connect the fiber, align the head of the fiber with the optical interface and insert the
fiber into the interface gently.
To remove the fiber, press down the clamping connector, and push the fiber head
inwards, and then pull the fiber out.
SC/PC fiber connector
Figure 3-2 shows the appearance of the SC/PC fiber connector.
Figure 3-2 SC/PC fiber connector
When connecting or removing the SC/PC fiber connector, align the connector with the optical
interface, and do not rotate the fiber. Operate as below:
To connect the fiber, align the head of the fiber with the optical interface and insert the
fiber into the interface gently.
To remove the fiber, push the fiber head inwards, and then pull the fiber out.
FC/PC fiber connector
Figure 3-3 shows the appearance of the FC/PC fiber connector.
