ISCOM5508-GP (A) Hardware Description
3 2BFiber and cables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
28

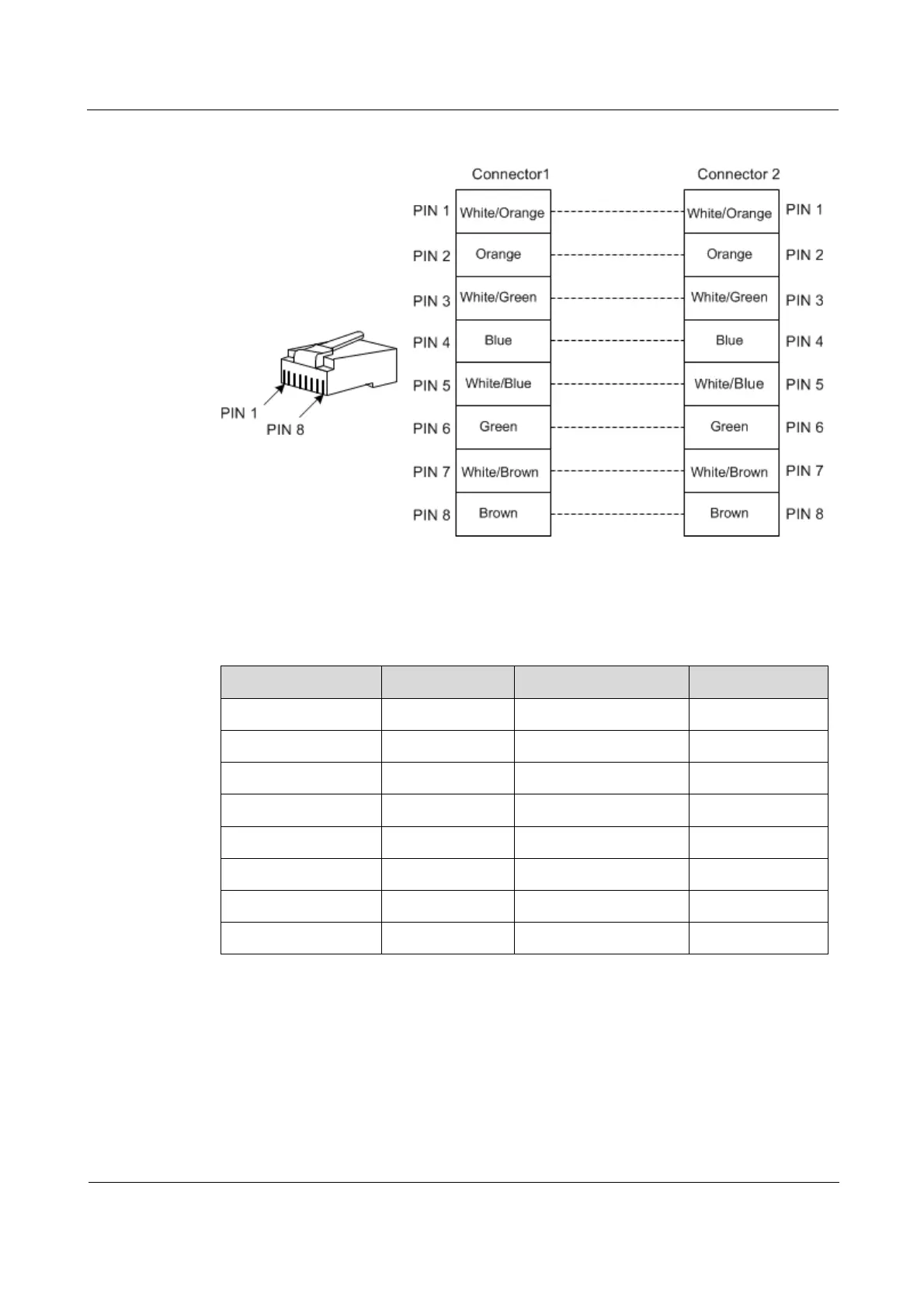

Figure 3-5 Straight-through cable wiring
Crossover cable
Table 3-5 lists the PIN definitions of the crossover cable.
Table 3-5 PIN definitions of the crossover cable
Connector 1 (RJ45) EIA/TIA568A Connector 2 (RJ45) EIA/TIA568B
PIN 1 White/Green PIN 1 White/Orange
PIN 2 Green PIN 2 Orange
PIN 3 White/Orange PIN 3 White/Green
PIN 4 Blue PIN 4 Blue
PIN 5 White/Blue PIN 5 White/Blue
PIN 6 Orange PIN 6 Green
PIN 7 White/Brown PIN 7 White/Brown
PIN 8 Brown PIN 8 Brown
Figure 3-6 shows the crossover cable wiring.
