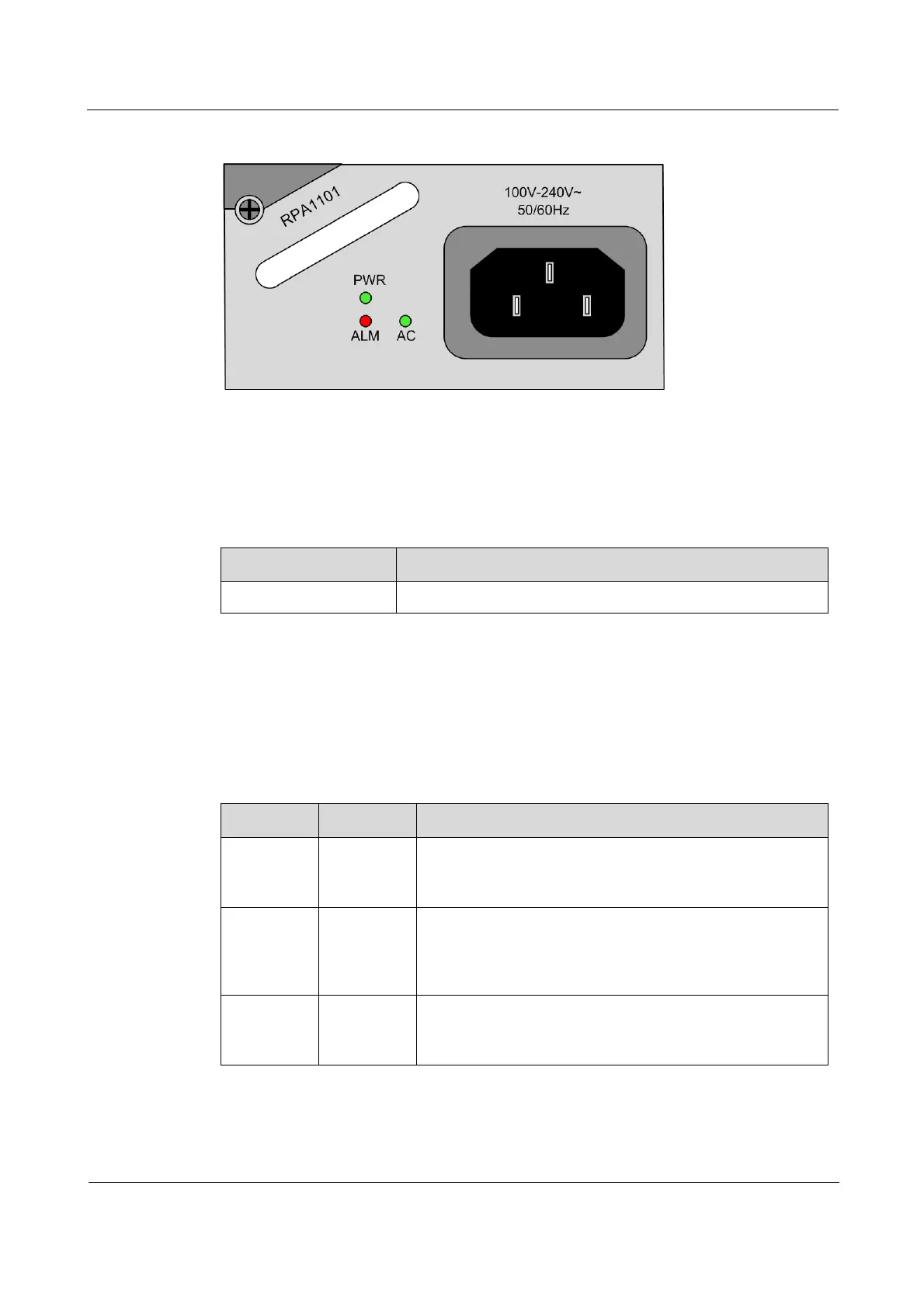

Figure 2-12 Panel of the RPA1101 power module
2.6.3 Interfaces
There is 1 interface on the RPA1101 power module.
Table 2-19 lists the interface on the RPA1101 power module.
Table 2-19 Interface on the RPA1101 power module
Interface Usage
100V-240V–50/60Hz AC power interface/C13 connector socket
2.6.4 LEDs
There are 3 LEDs on the RPA1101 power module.
Table 2-20 lists LEDs on the RPA1101 power module.
Table 2-20 LEDs on the RPA1101 power module
LED Status Description
PWR Green Power LED

Green: the power supply is working properly.

Off: the power supply is working improperly.
AC Green Power input LED

Green: the input power is working properly.

Off: there is no external power input or external power
input is abnormal.
ALM Red Alarm LED

Red: the device is powered on improperly.

Off: the device is powered off or powered on properly.
2.6.5 Technical specifications
Table 2-21 lists technical specifications of the RPA1101 power module.
