Raisecom ISCOM5508-GP User Manual

Raisecom
ISCOM5508-GP (A) Hardware Description
2 1BComponents
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
19
Table 2-21 Technical specifications of the RPA1101 power module
Item Description
Dimensions 65.6 mm (Width) × 240.6 mm (Depth) × 41.2 mm (Height)
Weight 0.61 kg
AC
power
Rated voltage 110/220 VAC
Frequency 50/60 Hz
Voltage range 100–240 VAC
Output power 100 W
Lightning protection level
(AC power)

Differential mode:1 kV

Common mode: 2 kV
2.7 DC power module (RPD1101-48S12)
2.7.1 Introduction
The RPD1101-48S12 (hereinafter referred to as RPD1101) module is a DC power module of
the ISCOM5508-GP. It supports the following features:

Wide voltage input: -38 to -72 VDC

Rated output voltage: 12 V; rated output current: 8.3 A

Output overvoltage and overcurrent protection and reverse connection protection

Power status LED

Operating temperature: -10 to +70°C
2.7.2 Panel and slots
The RPD1101 power module can be only inserted into slot 4 or slot 5.
Figure 2-13 shows the panel of the RPD1101 power module.

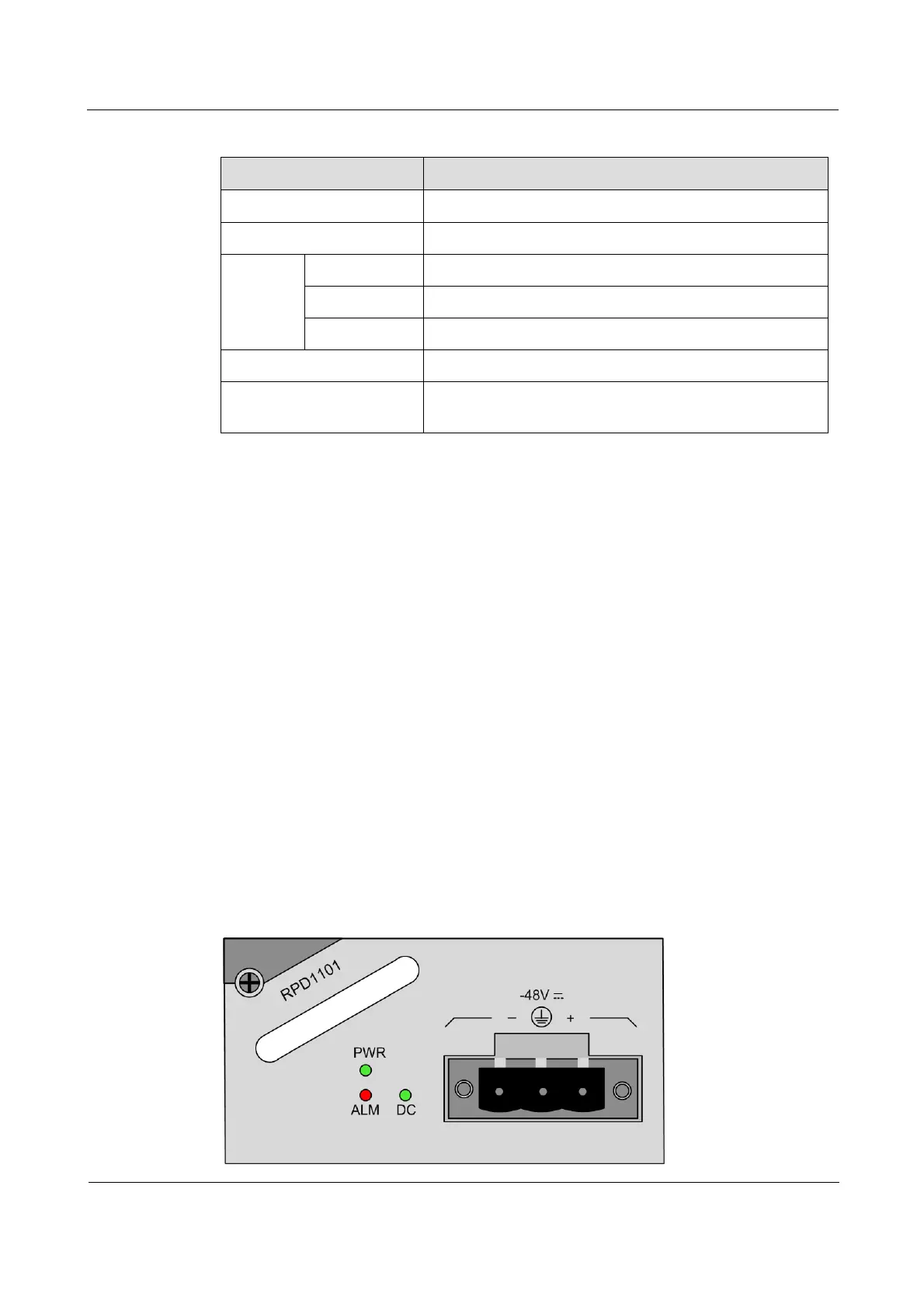

Figure 2-13 Panel of the RPD1101 power module
