Chapter 1: System Components 9
Chapter 1: Introduction
The Autohelm Type 100/300 autopilots are modular systems that can be
configured to suit the individual requirements of all types of vessels, using
a range of high efficiency rotary, linear or hydraulic rudder drive units to
match various types of steering systems.

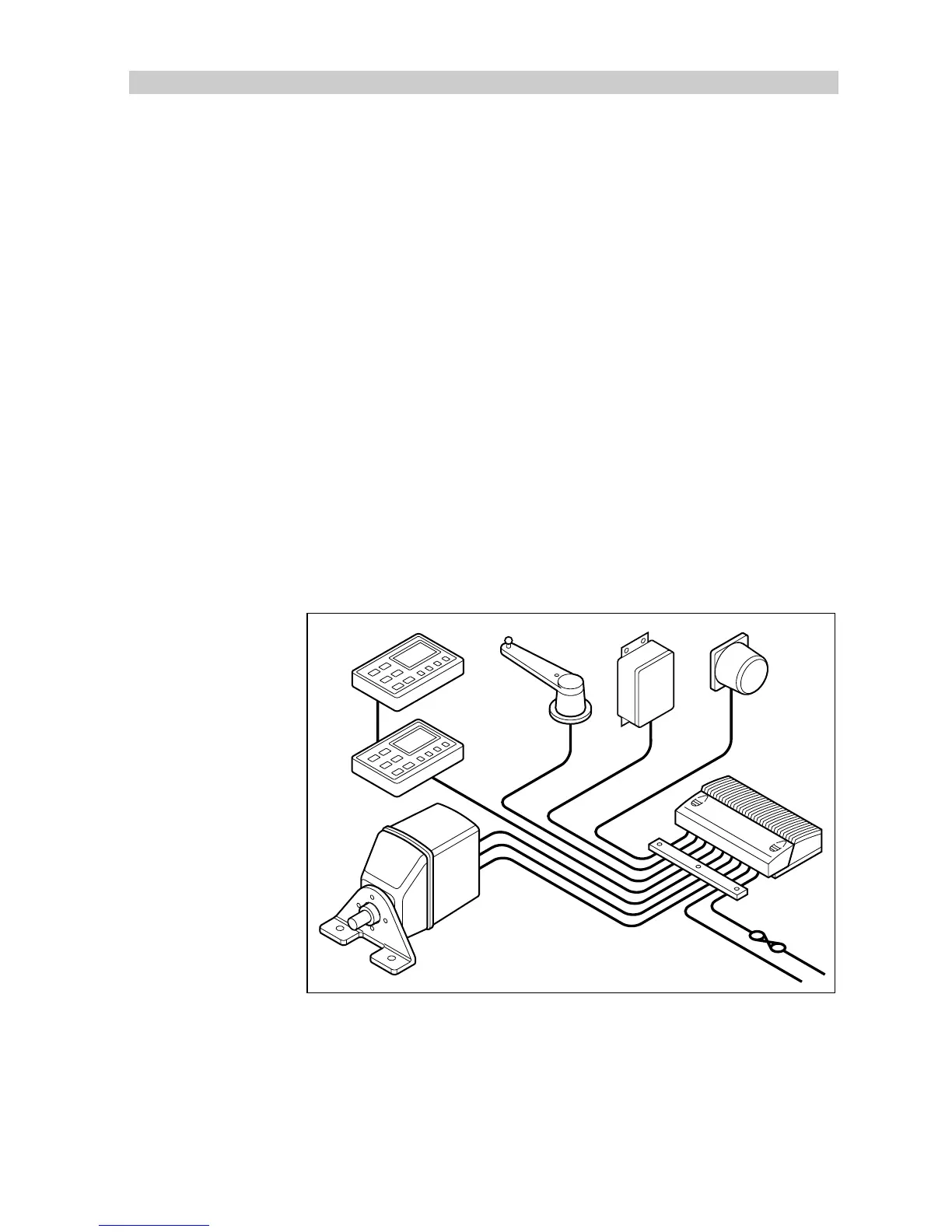

The Autohelm system in its most basic form consists of a control unit,
course computer, drive unit, fluxgate compass and a rudder
reference transducer.
A full range of accessories are also available and include:
• Joystick (manual steering unit)
• Main alarm and interface
• Rate gyro
• Hand held remote control unit
• SeaTalk instrumentation
• Interface leads
Control
Unit
Control
Unit
Drive Unit
Rudder
Reference
Unit
Gyro
Fluxgate
Compass
Course
Computer
Cable
Clamp
D726-1
