58
TYPE 100/300 Operation and Installation Handbook

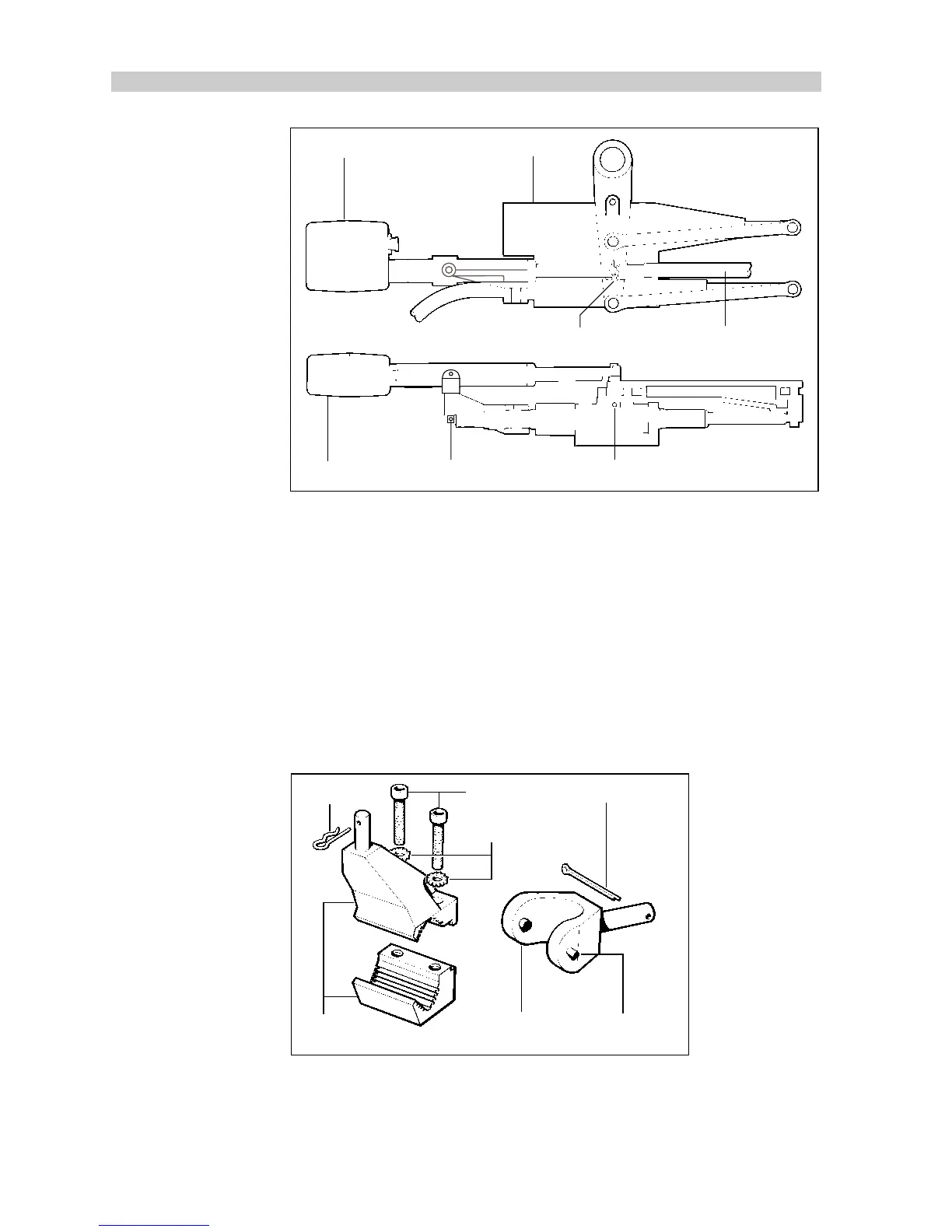

Drive unit
Drive unit
Valve block
Engine tie bar
Small spring clip
Split pin Split pin
D770-1
4. Attach the drive unit to the mounting bracket as shown above and
secure split pin provided. The small spring clip can then be used to
attach the drive unit to the adaptor pin.
5. Slowly turn the steering system from hardover to hardover. It is most
important that the drive unit and the adaptor pin bracket do not touch
any part of the engine or steering system.
Volvo (Post type 872215)
1. Remove the locating pin that attaches the cable rod to the tiller end
block and replace with the girdle support bracket as shown.
Locating bolts
Shakeproof
washers
Split pin
Sprung location
pin
Girdle support
bracket
Adaptor pin
bracket
Safety clip
D744-1
